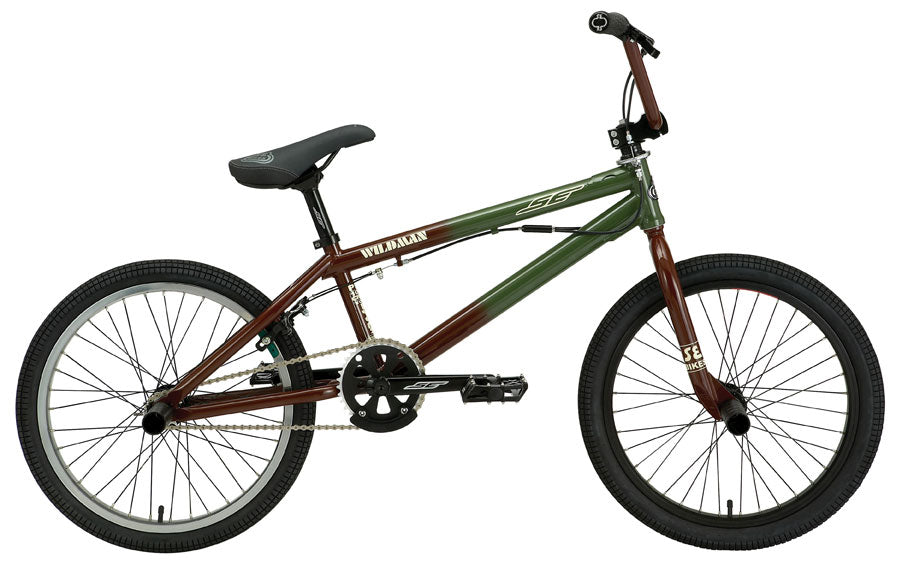

WIldman Pro (2007)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% CR-MO, Todd Lyons Signature Model, Integrated Hiddenset, 6mm Dropouts, Euro BB, Removable Gyro Tabs |
| Fork | CR-MO 1-1/8" Landing Gear |
| Crankset | SE "Premium" 3-pc Tubular CR-MO, 175mm; SE 36T, 5mm Alloy, w/ Grind Plate Sprocket; Euro 4 Sealed Cartridge Bearings, Cr-Mo Heat Treated 8 Spline Spindle |
| Pedals | X-Pedo MX-6, Aluminum, Cr-Mo Axle, Removable Pins |
| Cassette | 13T Cassette |
| Chain | KMC Z410 |
| Wheelset | Front: Black Alex DM-24 Double Wall 36H, Rear: Chrome Alex Supra B Double Wall 48H; SE Alloy, 36H, 14mm Axle Fron Hub; SE Alloy, Cassette, 48H, 14mm Axle, w/ 13t Cog Rear Hub; Black Stainless 14 Ga. Spokes |
| Tires | Kenda KO-ROLLA, 2.1 Front & Rear |
| Brakeset | Tektro FX15AD, U Brake, Linear Pull, Soft Compound Shoes, (Rear Only) |
| Brake Levers | Tektro 273A |
| Headset | FSA Impact 1-1/8" Hiddenset Sealed |
| Handlebar | CR-MO Wild Bar, 25.5" X 7" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | Dirt Shredder Micro Adjust Aluminum 25.4 |
| Seat Clamp | SE Alloy |
| Accessories | SE Steel Pegs, Black 1 Pair; SST Oryg; Custom SE Aluminum End Caps |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.75" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.25" |
| G | Bottom Bracket Height | 11.6" |
| Seat Tube Length | 10.25" | |
| Wheel Size | 20" |
