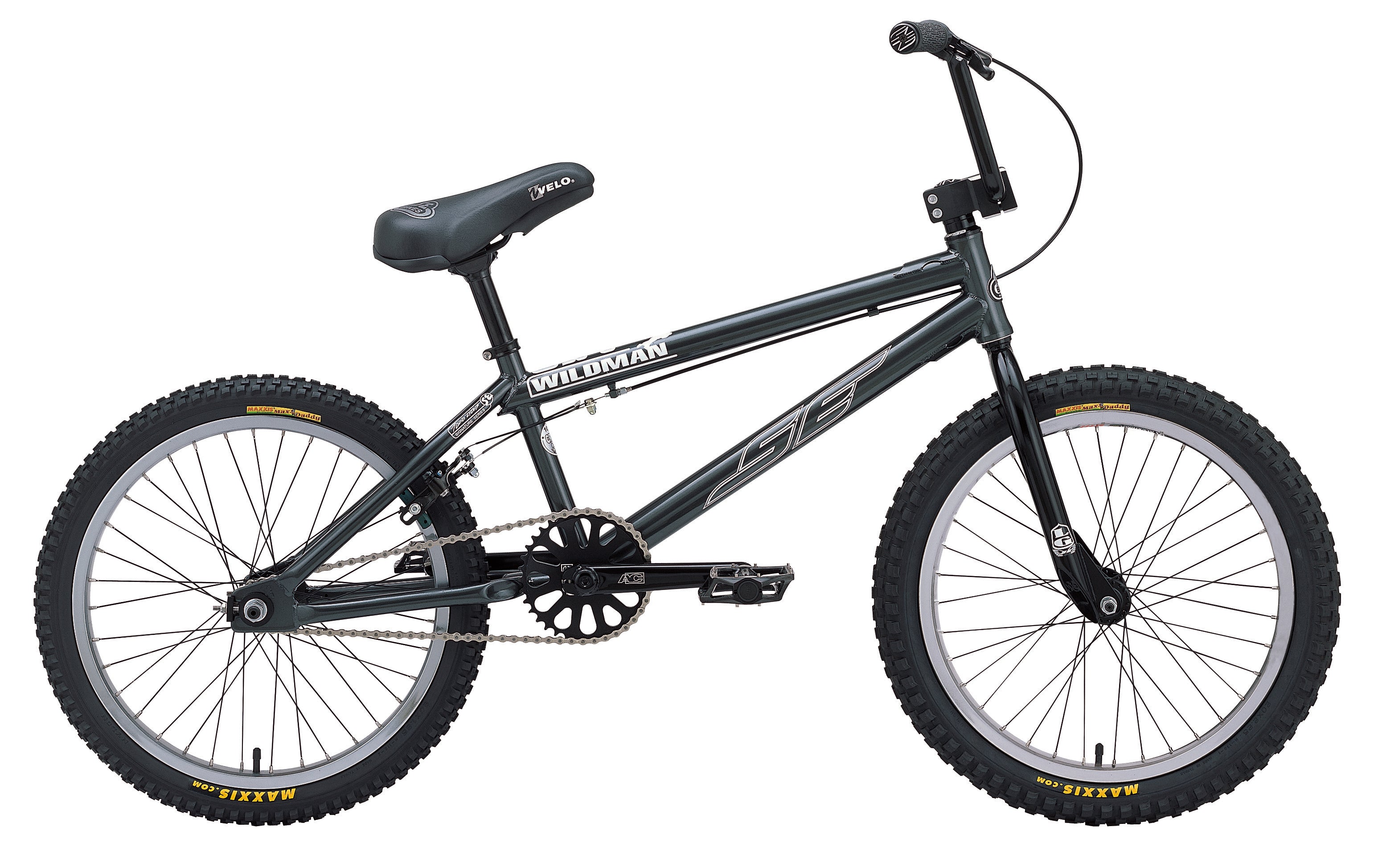

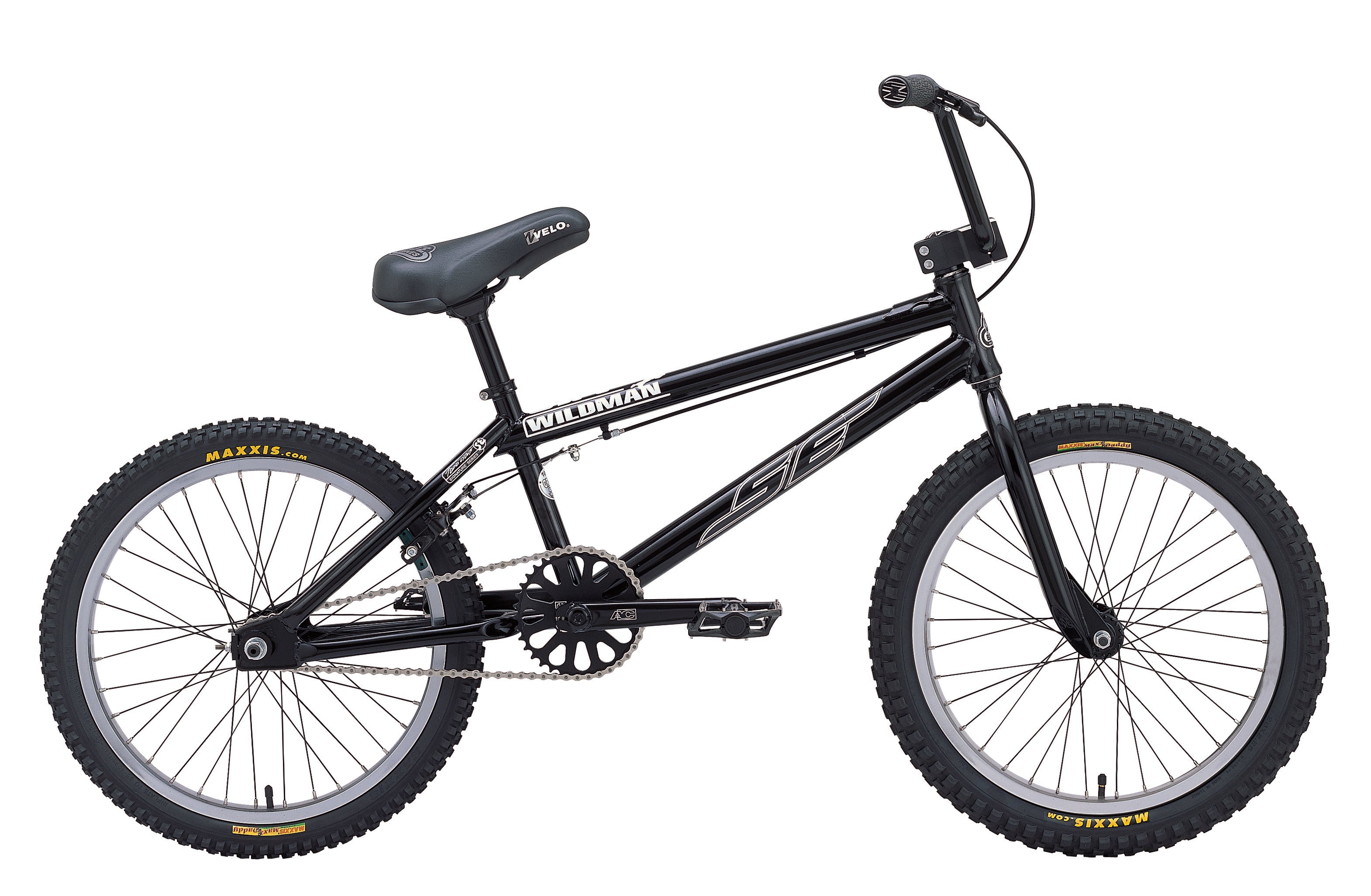

Wildman Pro (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% CR-MO, Todd Lyons Signature Model, Integrated Hiddenset, 6mm Dropouts |
| Fork | CR-MO 1-1/8" Landing Gear |
| Crankset | AC ProSpeed 001, 3-pc Tubular CR-MO, 175mm; AC Grinder II, 36T, Alloy Sprocket; AC, Euro, Sealed Cartridge Bearing, Cr-Mo 10-Spline spindle |
| Pedals | Wellgo Alloy Platform, CR-MO Axle, Removable Pins |
| Cassette | 13T Cassette |
| Chain | KMC Z410 |
| Wheelset | Alex Supra Feather, 7000 Alloy, Welded Joint, Chrome, 36H Front & Rear; SE, Sealed Bearing, 36H, 3/8 Axle, Aluminum Front Hub; SE, Sealed Bearing, Cassette, 36H, 14mm Axle, Aluminum Rear Hub; Black Stainless 14 Ga. Spokes |
| Tires | Maxxis MaxxDaddy 2.15 / 1.85 |
| Brakeset | Tektro FX15AD, U Brake, Linear Pull, Soft Compound Shoes, (Rear Only) |
| Brake Levers | Tektro XL750 w/ Teflon Bushing |
| Headset | FSA 1-1/8" Hiddenset Sealed |
| Handlebar | CR-MO, SE, 25.5" X 7" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE w/custom cover, 8mm Rails |
| Seatpost | SE Micro Adjust Aluminum 26.0 |
| Seat Clamp | SE Alloy |
| Accessories | Chain Tensioners, Aluminum Bar Ends |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.75" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.5" |
| G | Bottom Bracket Height | 11.6" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
