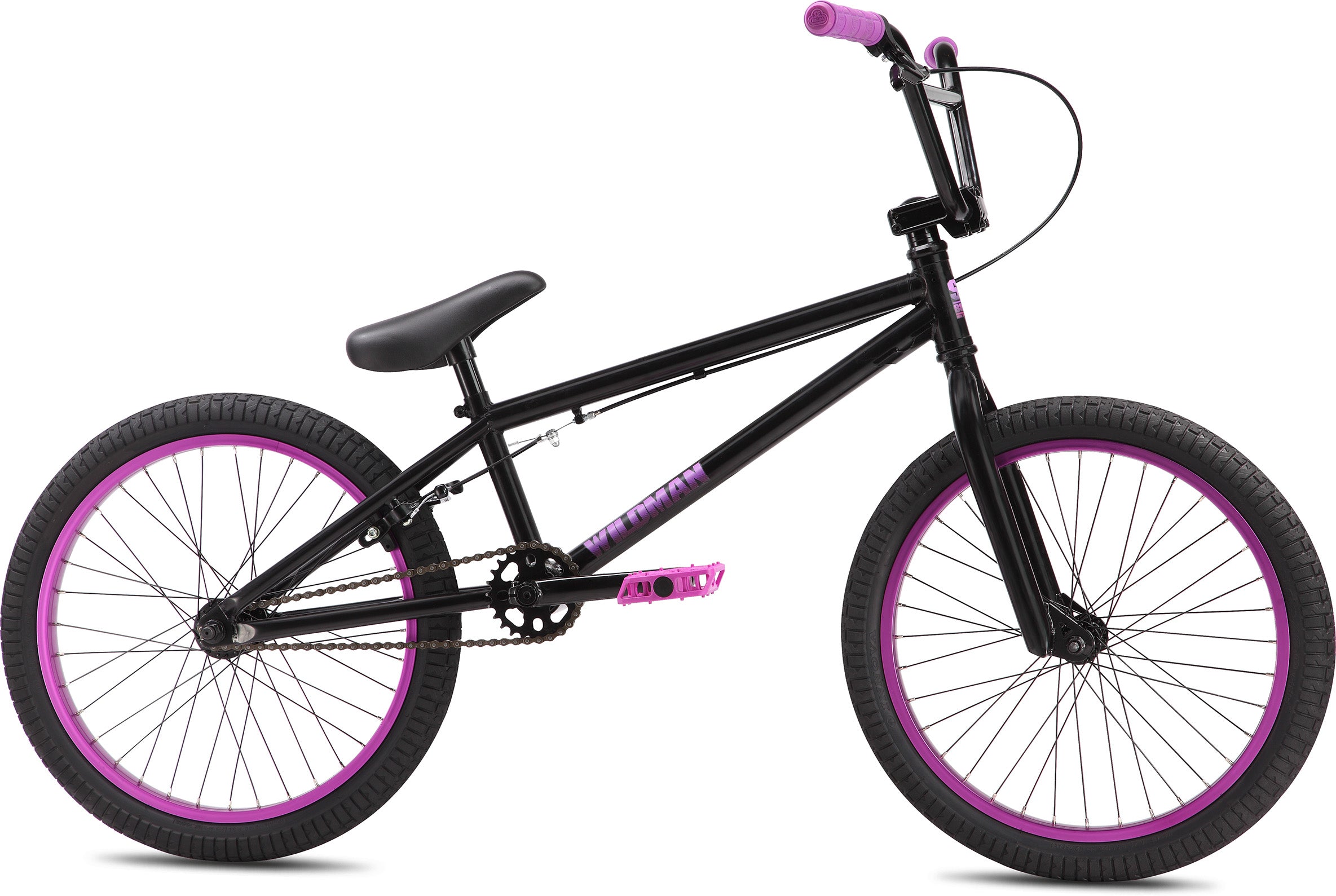

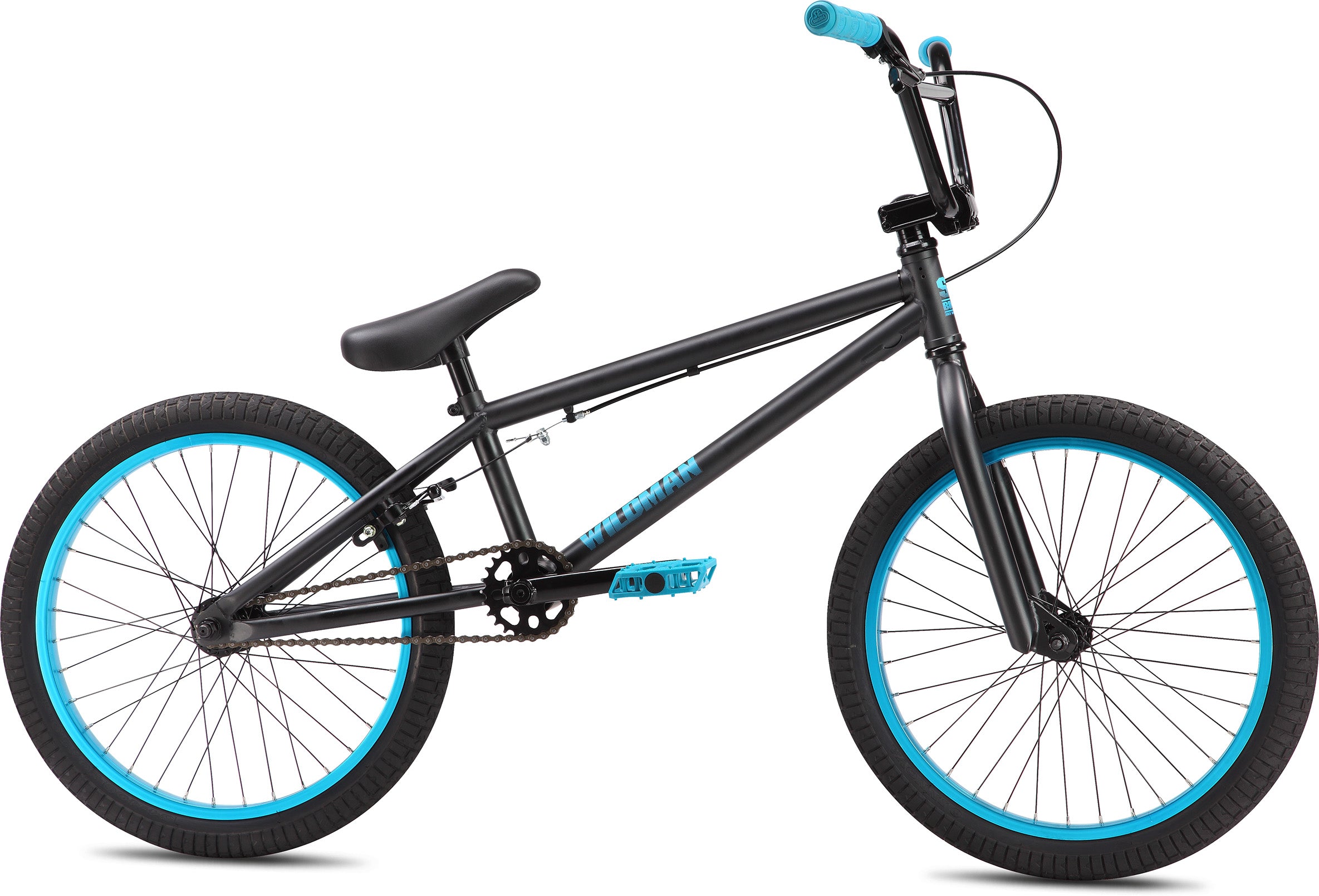

Wildman (2013)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | New 2013 Frame Design, American BB, 5mm Dropouts, Integrated Seat Clamp |
| Fork | 3/8" Dropouts w/ 32mm Offset |
| Crankset | 3-pc Cr-Mo, 170mm, American BB, 25T Bubble Sprocket |
| Pedals | SE Nylon Fiber |
| Chain | KMC Z410A |
| Wheelset | SE Alloy 36H 3/8" F & 14mm Semi-Sealed R Hubs with Alloy Rims, 9T Driver |
| Tires | 20 x 2.20" F & R |
| Brakeset | Tektro 319AC, 2-Finger Alloy |
| Brake Levers | Tektro 319AC 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 27.5" x 7.5" |
| Stem | SE Front-Load Alloy |
| Grips | SE Bubble Jump Grip w/ Rubber SE End Plugs |
| Seat | Lightweight SE Seat/Post Combo w/ Padding |
| Seatpost | Integrated Alloy 25.4mm |
| Wheel Size | 20" |
| Weight | 25.30lbs / 11.47kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20" |
| Seat Tube, Center To Top | 8.7" | |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 13.7" |
| Wheelbase | 35.9" | |
| G | Bottom Bracket Height | 11.9" |
| Seat Post Diameter | 25.4mm | |
| Standover | 22.4 |
