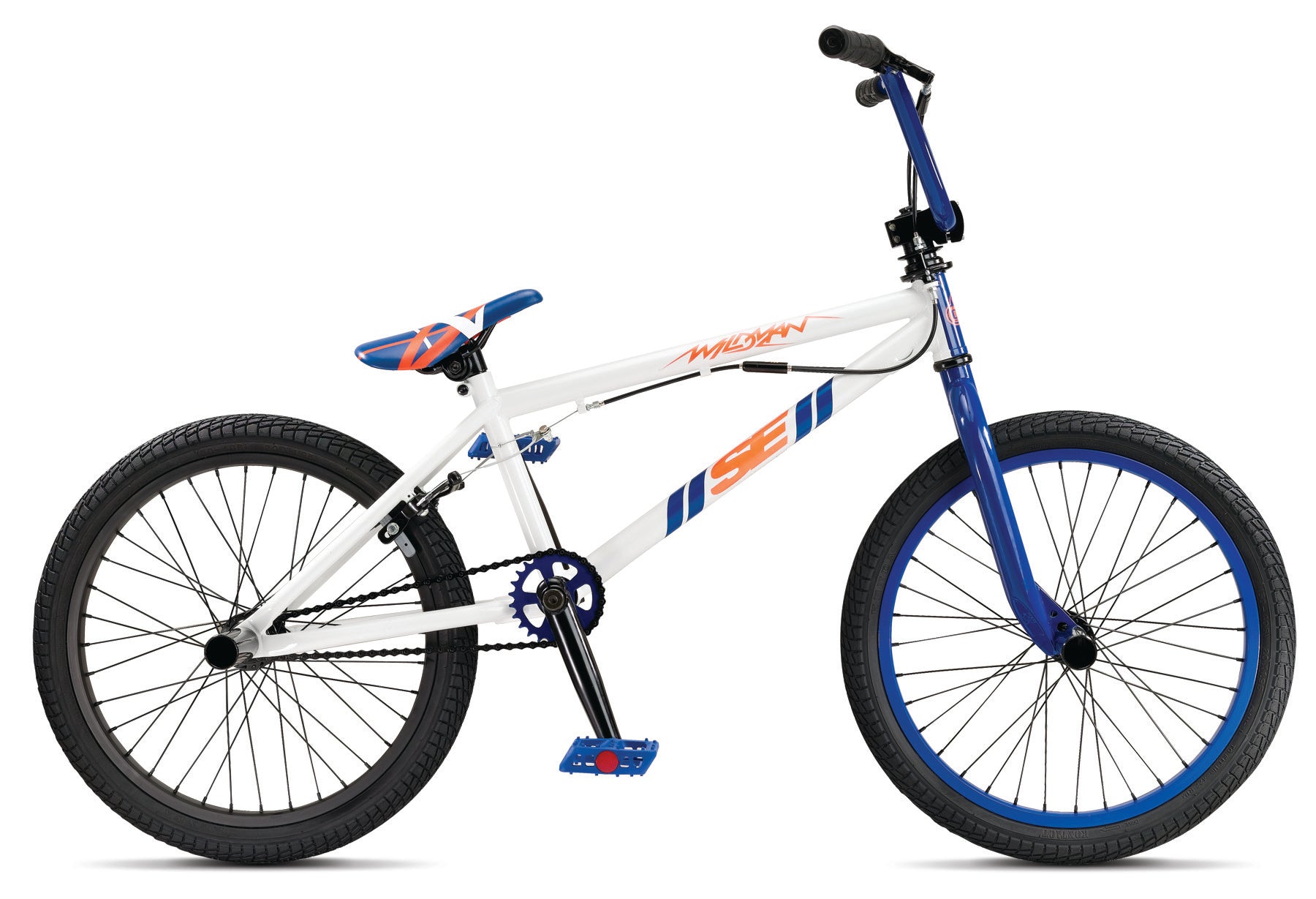

Wildman (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Mid BB, 6mm Dropouts, Gyro Mounts, Built-in Seat Clamp |
| Fork | Landing Gear, 3/8" Dropouts |
| Crankset | SE 3-pc Cr-Mo, 175mm, Mid BB, 25T |
| Pedals | Odyssey Twisted Plastic Composite |
| Chain | KMC Z410 |
| Wheelset | Alex G-303 Aluminum 36H F&R, w/14Ga. Spokes; SE 36H, 3/8" Axle Front Hub; SE 36H, 14mm Axle w/ 9T Cassette Rear Hub |
| Tires | Kenda Ko-Rolla, 2.1 F & R |
| Brakeset | Tektro FX340R |
| Brake Levers | Tektro 319AC |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 27.5" X 7.5" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | SE Bubble Jump Grip |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | SE Straight Post 25.4mm |
| Accessories | Rush Rotor, 2 Pegs, SE Plastic Grip End Caps, Pegs, Gyro |
| Wheel Size | 20" |
| Weight | 25.9 lbs (without pegs) |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 13.75" |
| G | Bottom Bracket Height | 11.6" |
| Wheel Size | 20" |
