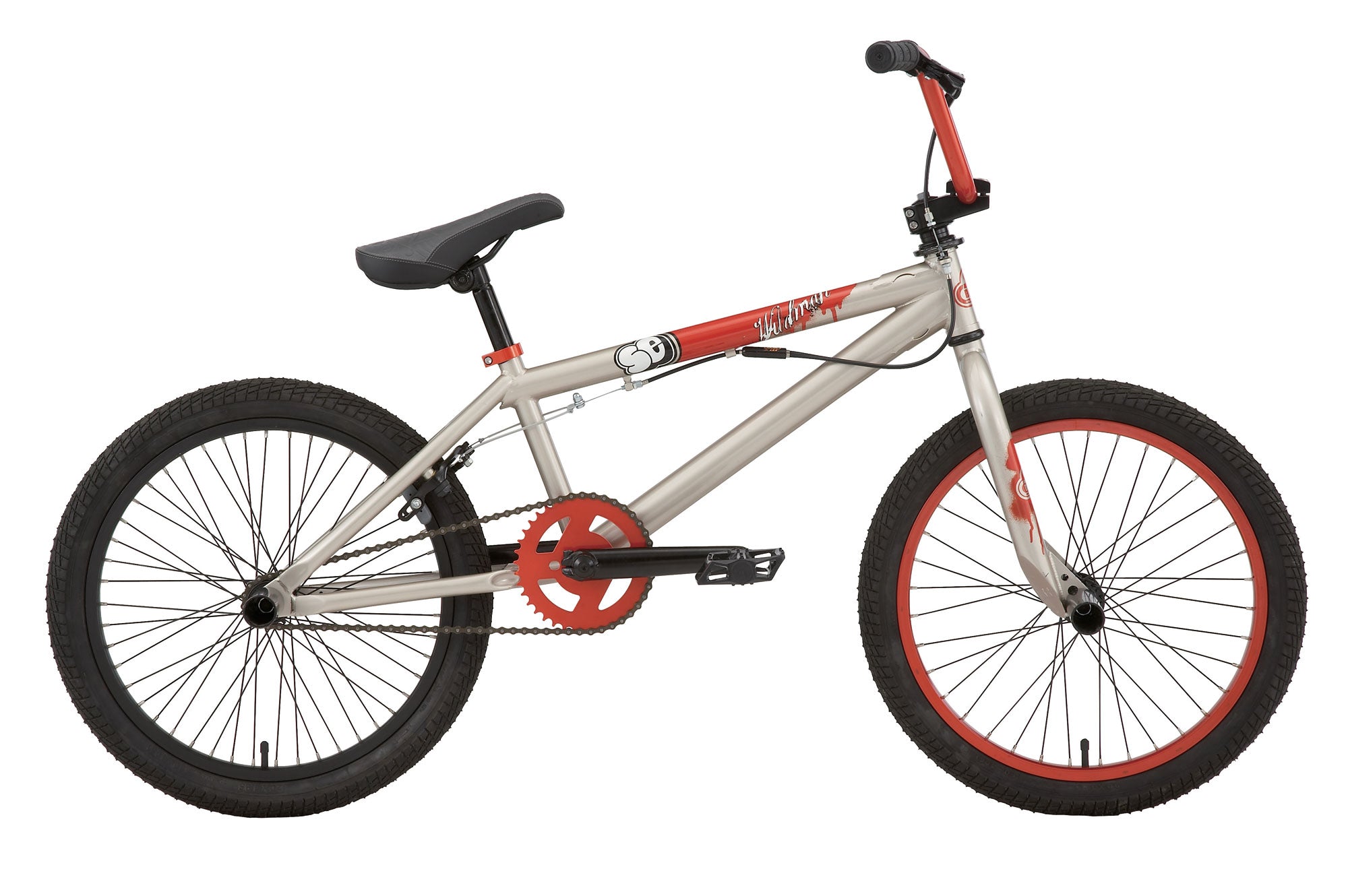

Wildman (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Mid BB, 6mm Dropouts, Gyro Mounts |
| Fork | Landing Gear, 14mm Dropouts |
| Crankset | SE 3-pc Cr-Mo, 175mm, Mid BB, 39T |
| Pedals | FPD Alloy Platform, CR-MO Axle |
| Chain | KMC Z410 |
| Wheelset | Alex G-303 Aluminum, Front- 36H, Rear- 48H, w/ 14Ga. Spokes; SE 36H, 14mm Axle Front Hub; SE 48H, 14mm Axle w/ 14T Freewheel Rear Hub |
| Tires | 2.1" F & R |
| Brakeset | C-Star 933D U-Brake |
| Brake Levers | C-Star 2 Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE, 25.5" X 7" |
| Stem | SE Top Load 1-1/8" Alloy |
| Grips | SE Bubble Jump Grip |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | SE Straight Post 25.4 |
| Accessories | Rush Rotor, 2 Pegs, SE Plastic Grip End Caps |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.25" |
| G | Bottom Bracket Height | 11.6" |
| Wheel Size | 20" |
