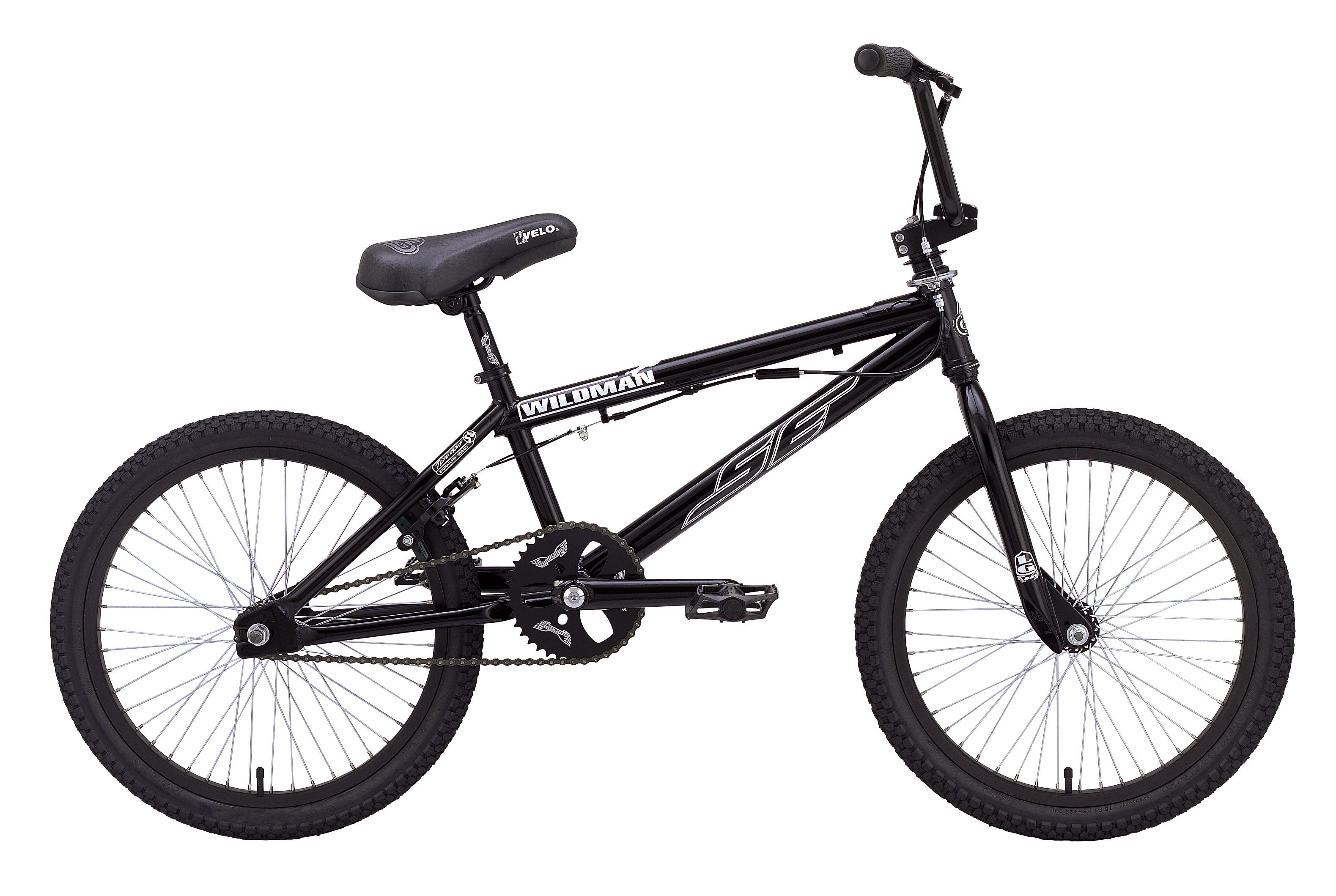

Wildman (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Todd Lyons Signature Model, Hi-Ten, 6mm Dropouts, Gyro Mounts |
| Fork | 1-1/8" Landing Gear |
| Crankset | SE 3-pc Tubular CR-MO, 175mm; SE 39T Sprocket; Cr-Mo spindle, 8-Spline, Loose |
| Pedals | Wellgo Alloy Platform, CR-MO Axle |
| Cassette | AC 14T Freewheel |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, Front- 36H, Rear- 48H; SE, 36H, 3/8 Axle Front Hub; SE, 48H, 14mm Axle Rear Hub; 14 Ga. Spokes |
| Tires | Kenda K-Rad 2.125 / 1.95 |
| Brakeset | Tektro 907A U Brake, Linear Pull, Soft Compound Shoes (Rear only) |
| Brake Levers | Tektro 289A |
| Headset | CH 1-1/8" Threadless |
| Handlebar | SE, 25.5" X 7" |
| Stem | SE Top Load 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE w/custom cover, 8mm Rails |
| Seatpost | SE Straight Post 26.0 |
| Seat Clamp | SE Alloy |
| Accessories | Driving Force detangler |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.25" |
| G | Bottom Bracket Height | 11.6" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
