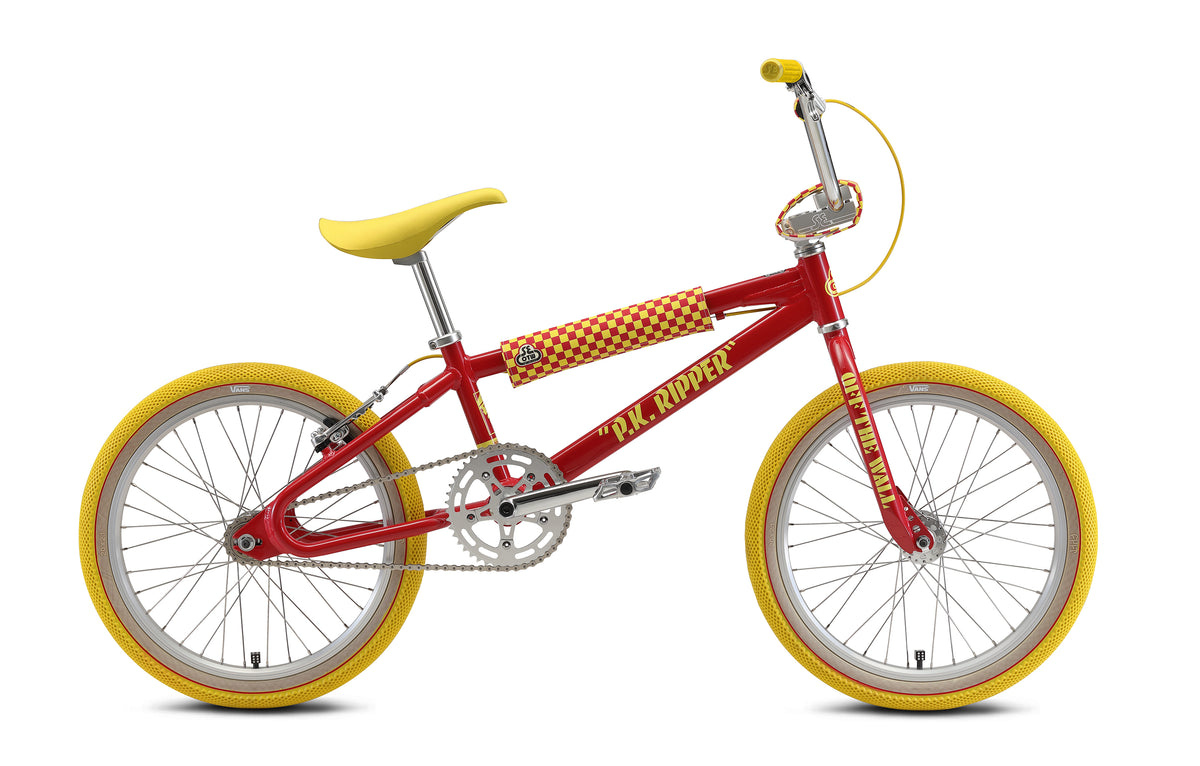

Vans PK Ripper Looptail (2021)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Vans Edition, 6061 Aluminum Floval Tubing, Looptail Rear End, Seatstays Wrap, Retro Diamond Shape Dropouts, 68mm American Bottom Bracket, Limited Edition & Individually Numbered on the Inside of the Rear Dropout |
| Fork | "Off the Wall" Landing Gear, Full Cr-Mo |
| Crankset | SE TSC Cranks, 180mm, Sealed Bearing American Bottom Bracket, 141mm Spindle Length, 19mm Spindle Diameter, Alloy Spider, 44T Alloy Chainring |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC Z6 |
| Wheelset | Sealed Bearing SE Mohawk Hubs, 36H High-Flange Alloy, w/ Double-wall Rims, 16T Freewheel, Stainless Spokes |
| Tires | Vans x Cult Tires, All Over Tread Design, Vans Waffle Sole Pattern, 20" x 2.1" Front & Rear |
| Brakeset | Tektro C-310 V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Aluminum Cups, 1-1/8" Threadless, SE Wing Logos on Bottom Cup |
| Handlebar | Cr-Mo Power Wing, 29" x 8.25", 10° Backsweep, 1° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, Hidden Top Cap, 55mm Reach |
| Grips | Vans x Cult Grips, Waffle Sole Pattern, Made in USA |
| Seat | SE Racing Old School |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter |
| Accessories | Vans Checkerboard Padset, '66 Dice Valve Caps, Alloy Rear Wheel Washers |
| Wheel Size | 20" |
| Weight | 24 lbs / 10.86 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21" |
| Seat Tube, Center To Top | 10.2" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay | 14.75" |
| Wheelbase | 37.7" | |
| G | Bottom Bracket Height | 11.7" |
| Standover | 22.5" | |
| Stem | 55mm | |
| Handlebar Width | 28.5" | |
| Crank | 180mm | |
| Wheel Size | 20" | |
| Seat Post Diameter | 27.2mm |
