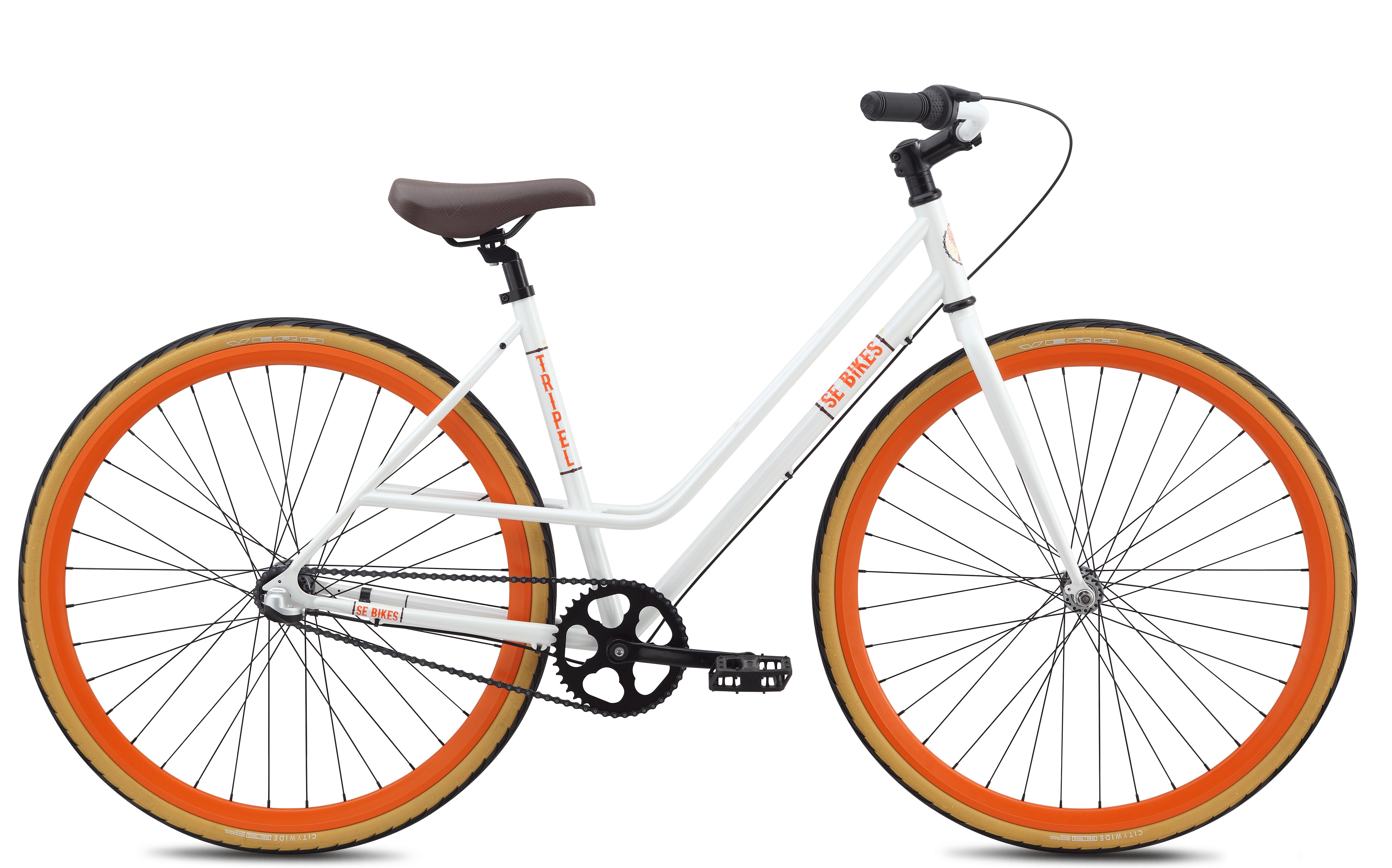

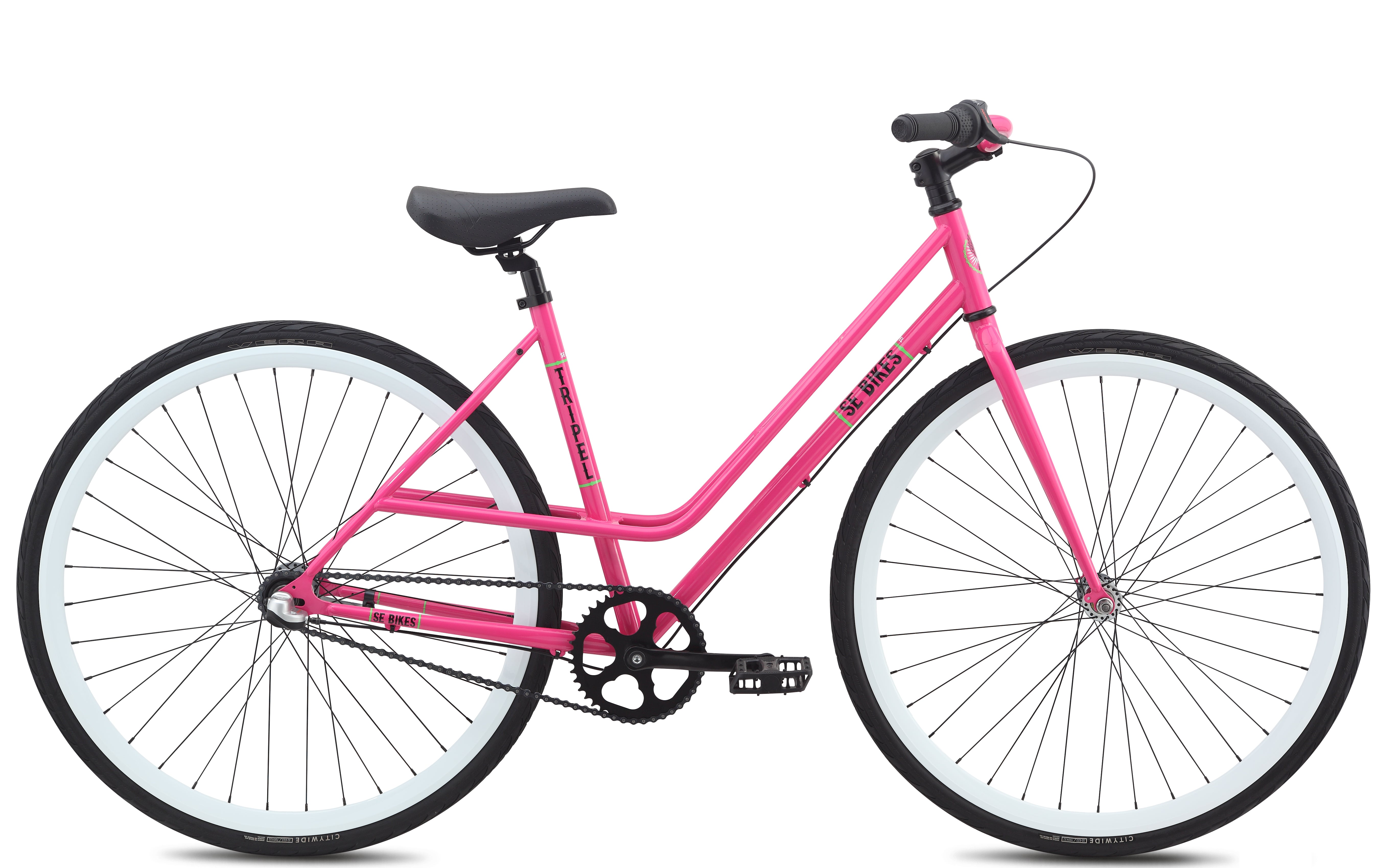

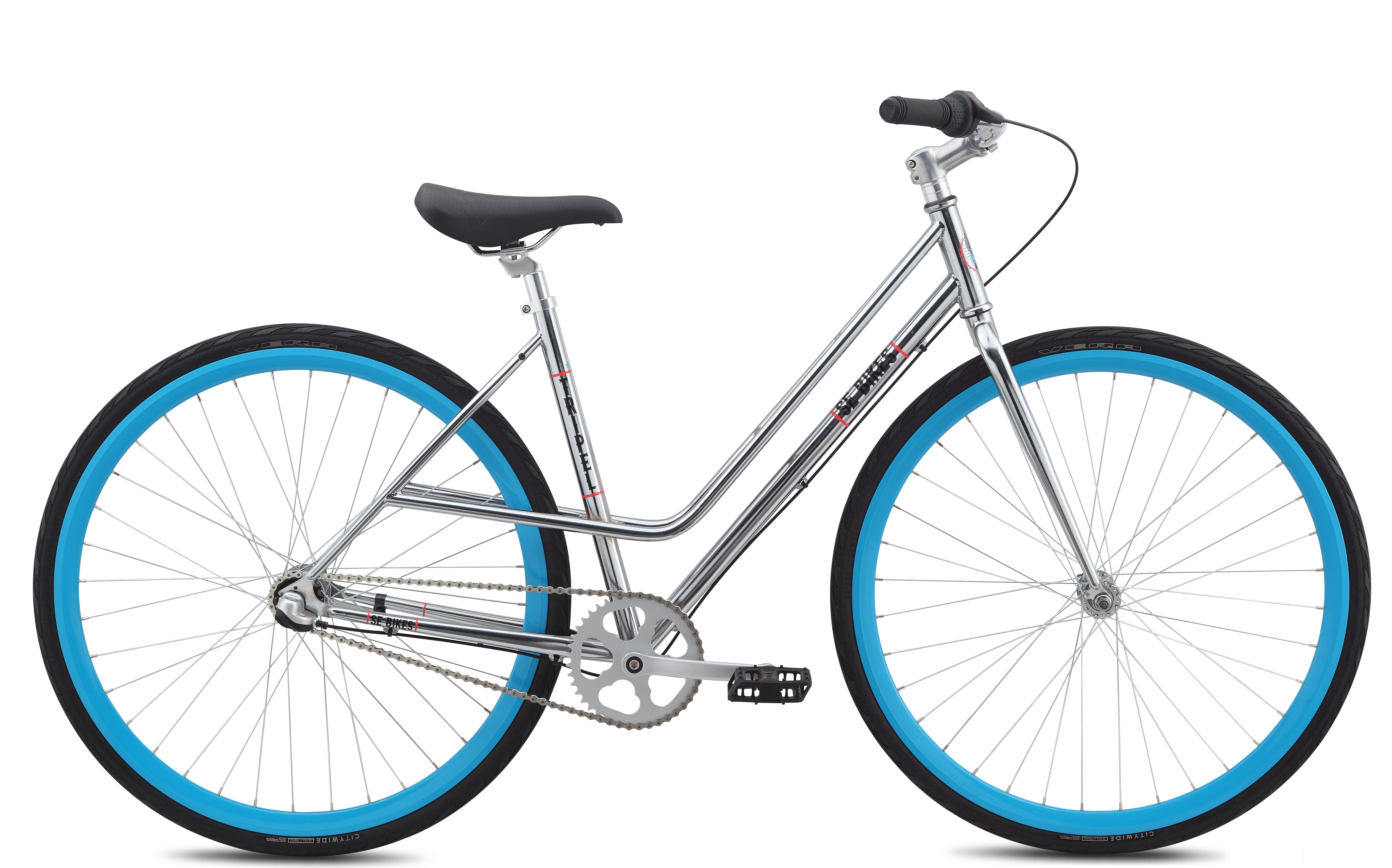

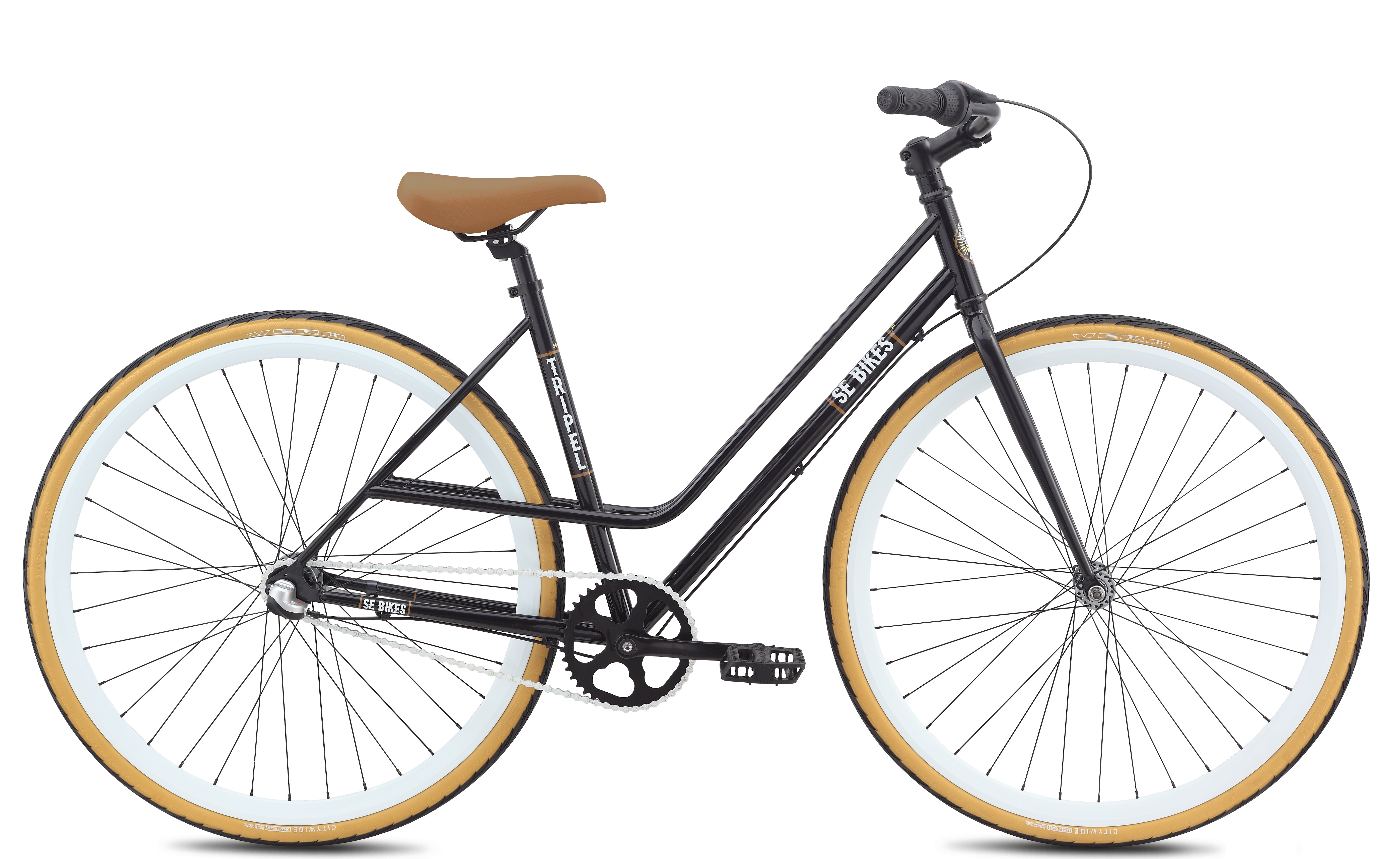

Tripel Step-Through 700c (2015)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | New 2015 Frame Design, Urban Single Speed Design, Butted Top Tube and Down Tube, Water Bottle & Fender Mounts, Wide Tire Clearance |
| Fork | SE straight Leg Hi-Ten w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Steel, Euro Cartridge BB, 42T SE Bubble Chainwheel |
| Pedals | SE Resin Platform |
| Chain | KMC Z410A |
| Wheelset | SE 36H Hubs w/ High-profile Double-Wall Rims, 16T Shimano Nexus 3-speed Internal Coaster Brake |
| Tires | Vera City Wide 700 x 32c |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 24" x 1" Sweep-Back Bar |
| Stem | SE Alloy, 25.4mm Clamp |
| Grips | Smooth Grip w/ Rubber SE End Plugs |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy, 27.2mm |
| Accessories | Shimano Nexus 3-speed Revo Shift |
| Weight | 29.20lbs / 13.24kgs (47cm) |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 42cm, 47cm, 52cm | |
| Top Tube, Effective | 520, 550, 580 | |
| Head Tube | 115, 130, 150 | |
| C | Seat Tube Angle | 74°, 74°, 74° |
| D | Head Tube Angle | 70.5°, 70.5°, 70.5° |
| E | Chainstay Length | 440, 440, 440 |
| Wheelbase | 1004, 1035, 1067 | |
| G | Bottom Bracket Height | TBD, TBD, TBD |
| Seat Post Diameter | 27.2, 27.2, 27.2 | |
| Standover | 561, 566, 578 | |
| Stem | 75, 75, 75 | |
| Handlebar Width | 610, 610, 610 | |
| Crank | 165, 165, 165 | |
| Wheel Size | 700c |
