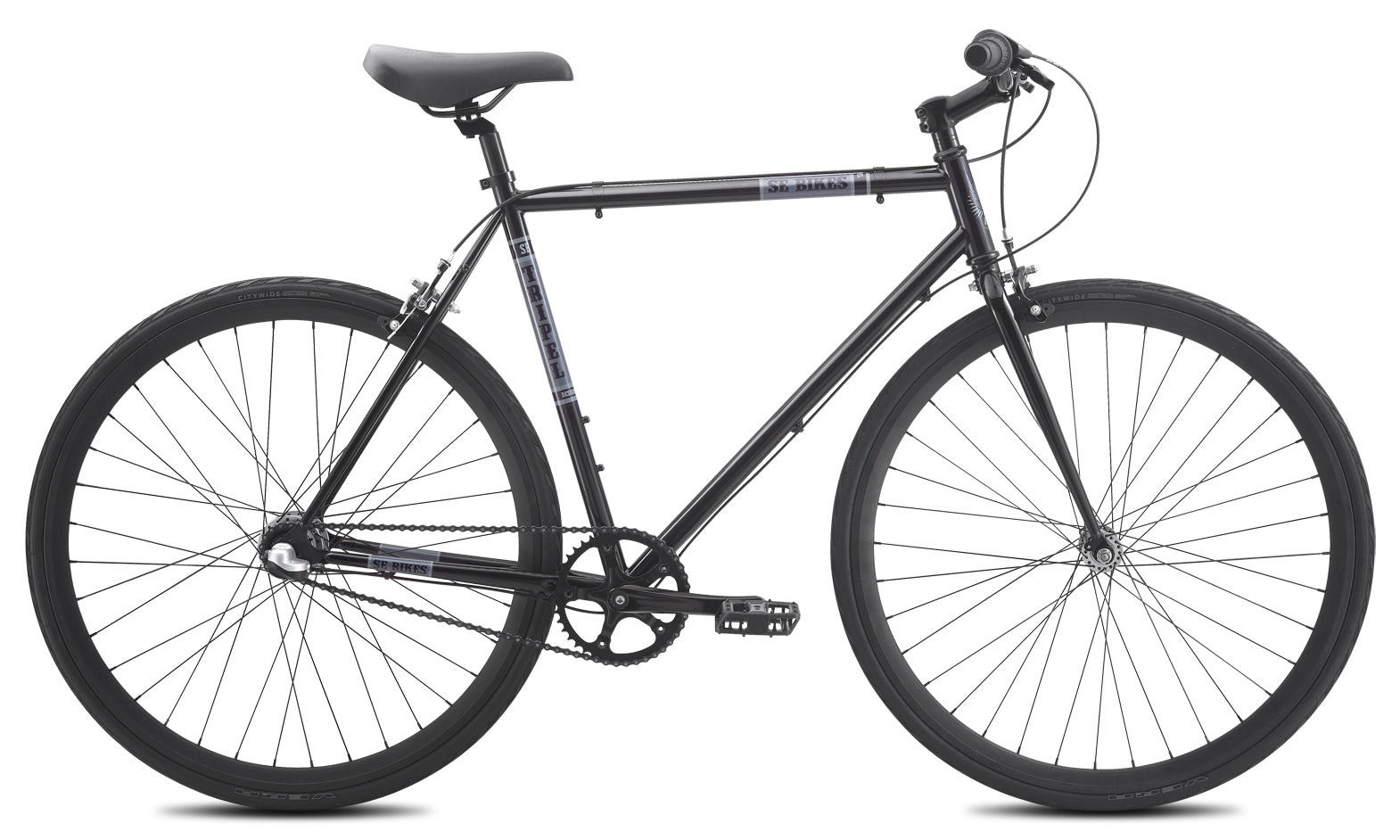

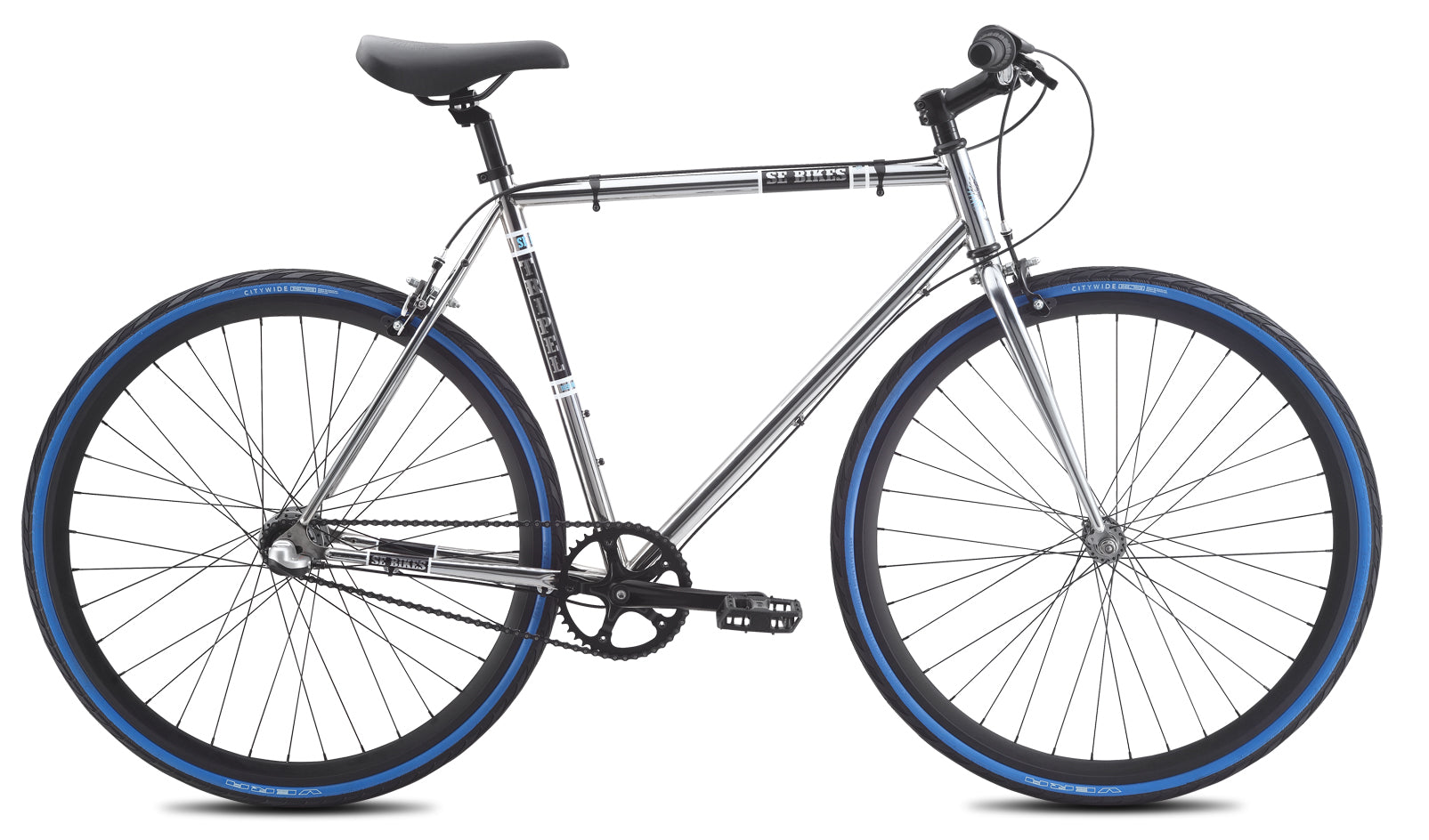

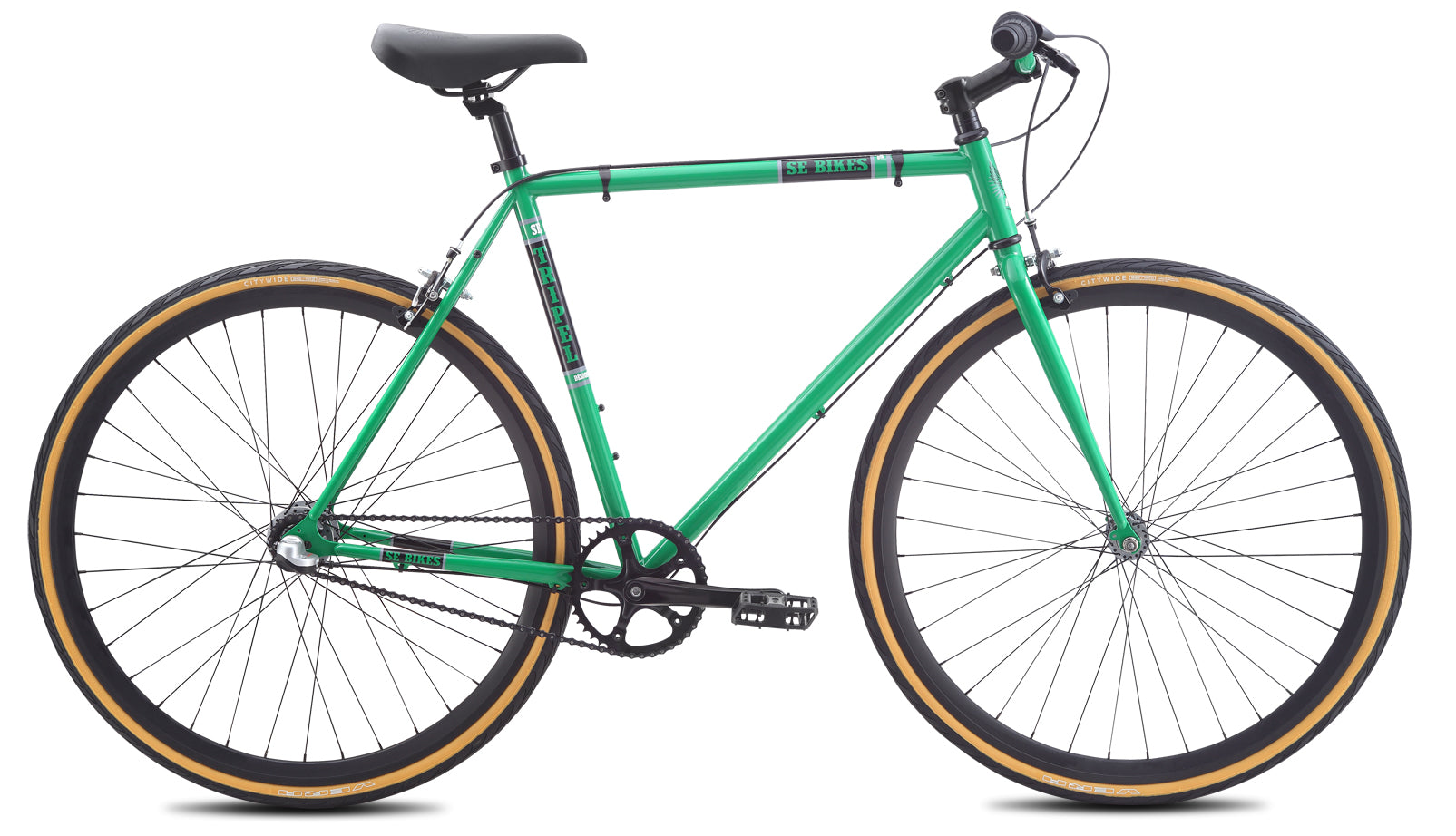

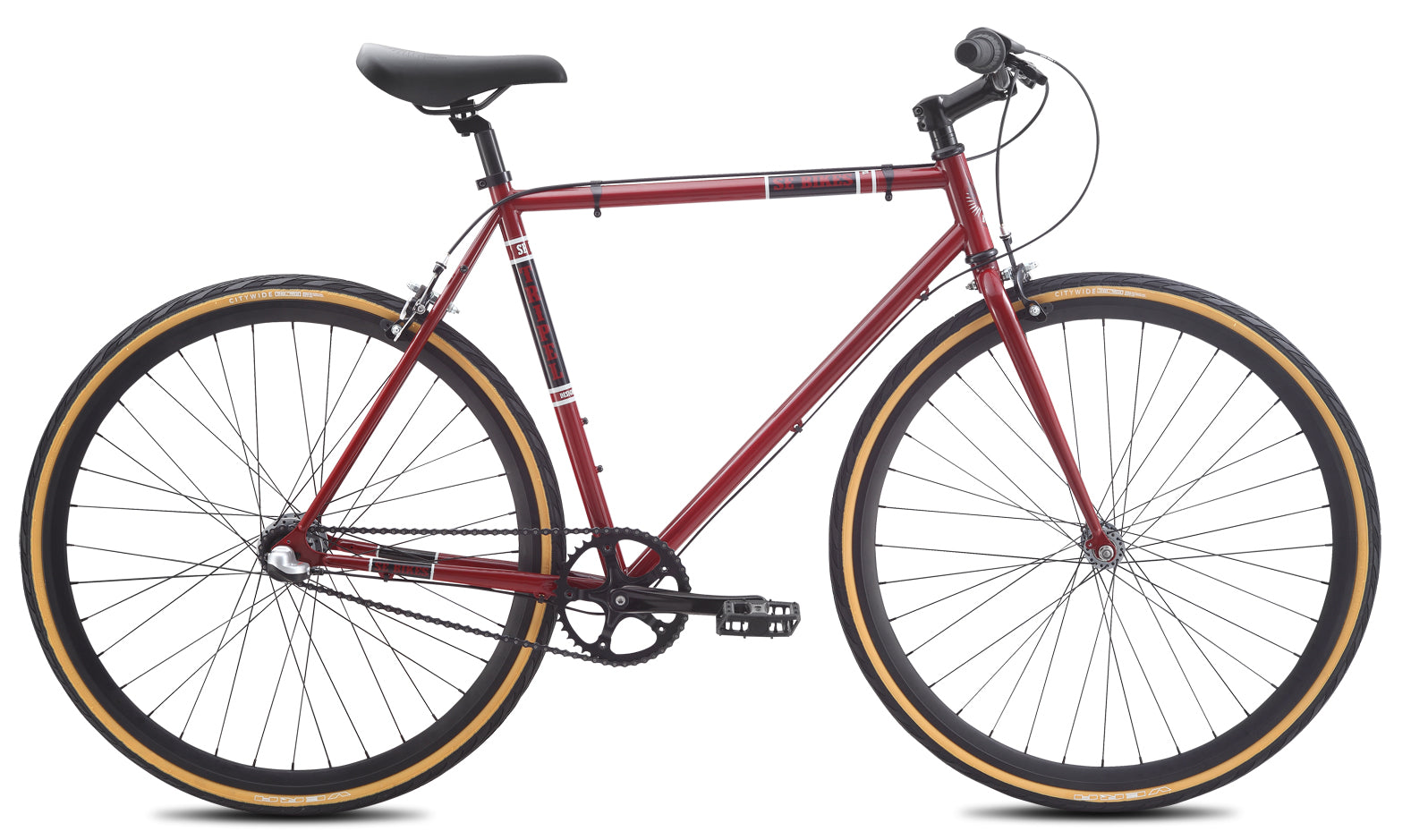

Tripel 700c (2016)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Design, Butted Top Tube and Down Tube, Water Bottle & Fender Mounts, Wide Tire Clearance |
| Fork | SE Straight Leg Hi-Ten w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Alloy, Euro Cartridge BB, 42T |
| Pedals | SE Resin Platform |
| Shifters | Shimano Nexus 3-speed Revo Shift |
| Chain | KMC Z410A |
| Wheelset | Shimano Nexus 3-speed Rear Hub w/ 36H High-Profile Double-Wall Rims, 16T |
| Tires | Vera City Wide 700 x 32c |
| Brakeset | Promax Alloy RC-453 Caliper w/ Quick-Release F & R |
| Brake Levers | Tektro 289A 2-Finger Alloy F & R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 23" x 1.5" Riser Bar |
| Stem | SE Alloy, 25.4mm Clamp |
| Grips | Smooth Grips w/ Rubber SE End Plugs |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy, 27.2mm |
| Accessories | Removable SE Brake Cable Clips |
| Weight | 28.30lbs / 12.84kgs (55cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 49cm, 52cm, 55cm, 58cm | |
| Top Tube, Effective | 553, 562, 573, 580 | |
| Head Tube Length | 90, 95, 125, 155 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay | 420, 420, 420, 420 |
| Wheelbase | 1006, 1016, 1028, 1036 | |
| G | Bottom Bracket Height | 282, 282, 282, 282 |
| Seat Post Diameter | 27.2, 27.2, 27.2, 27.2 | |
| Standover | 758, 775, 802, 833 | |
| Stem | 75, 75, 90, 90 | |
| Handlebar Width | 580, 580, 580, 580 | |
| Crank | 165, 165, 170, 170 |
