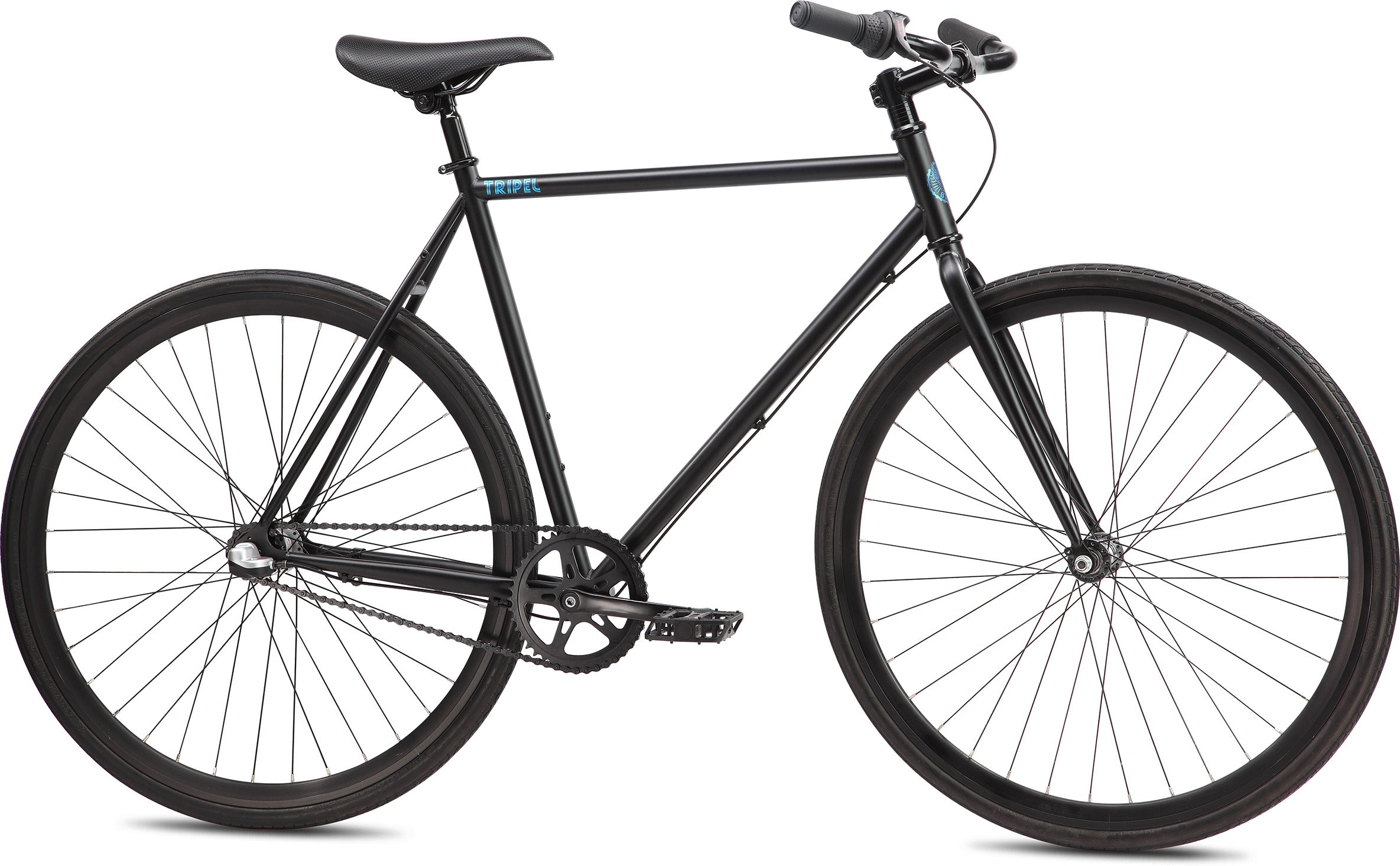

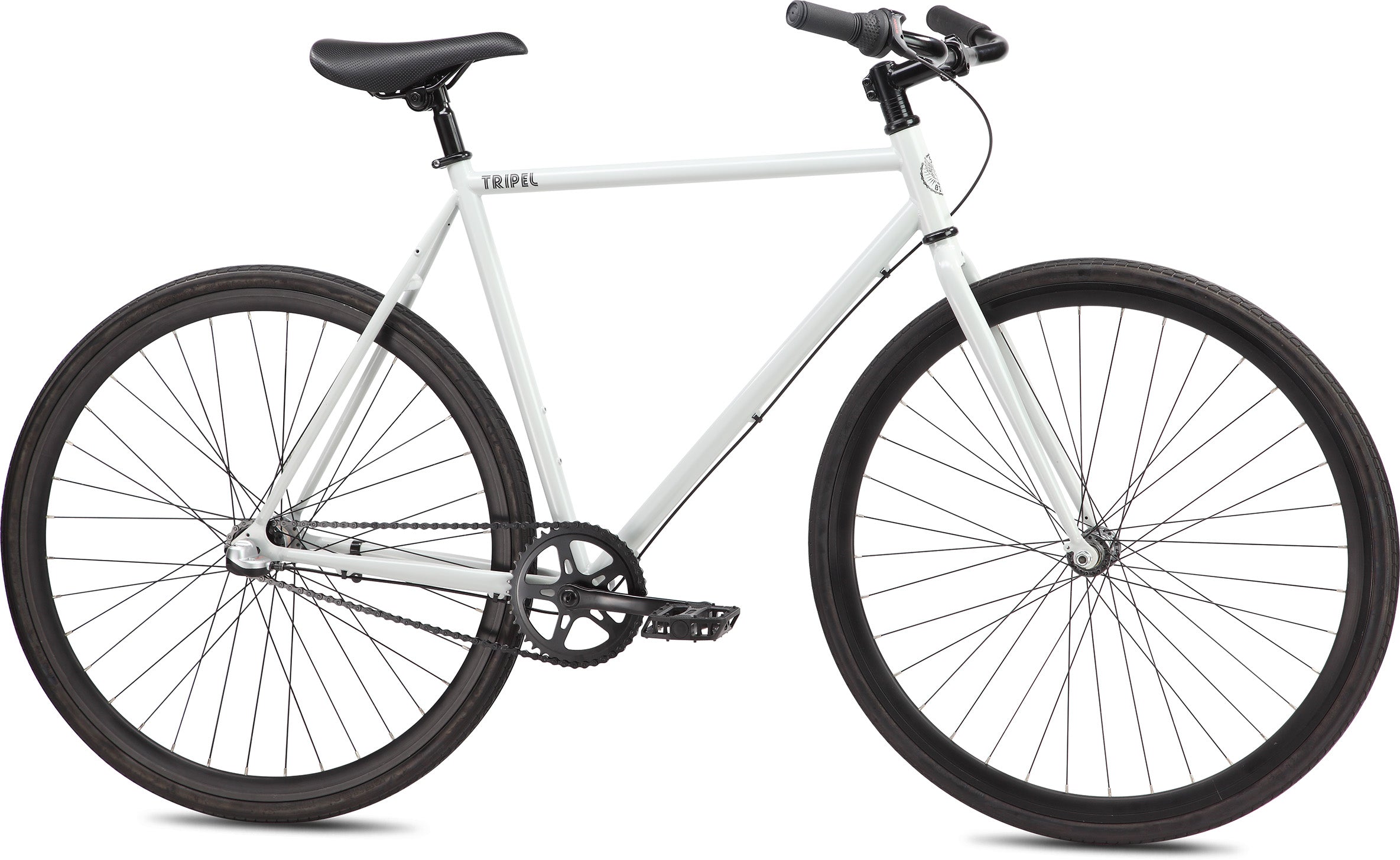

Tripel 700c (2013)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Hi-Ten, Water Bottle & Fender Mounts, Wide Tire Clearance |
| Fork | Straight Leg Hi-Ten w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Steel, Euro Cartridge BB, 42T |
| Pedals | SE Resin Platform |
| Chain | KMC Z410A |
| Wheelset | SE 36H Hubs w/ High-profile Double-Wall Rims, 16T Shimano Nexus 3-speed Internal Coaster Brake |
| Tires | Kenda Kwest 700 x 28c |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 24" x 1" Sweep Back Bar |
| Stem | SE Zero Degree Drop, 25.4mm Clamp |
| Grips | SE Racing Wing Grip w/ Rubber SE End Plugs |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Straight Post, 27.2mm |
| Accessories | Shimano Nexus 3-speed Revo Shift |
| Weight | 28.20lbs / 12.82kgs (55cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 49cm, 52cm, 55cm, 58cm | |
| Top Tube, Effective | 551mm, 551mm, 563mm, 569mm | |
| Head Tube | 90mm, 95mm, 125mm, 155mm | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay Length | 410mm, 410mm, 410mm, 410mm |
| Wheelbase | 1005mm, 1006mm, 1018mm, 1026mm | |
| G | Bottom Bracket Height | 282mm, 282mm, 282mm, 282mm |
| Seat Post Diameter | 27.2mm, 27.2mm, 27.2mm, 27.2mm | |
| Standover | 758mm, 774mm, 801mm, 831mm | |
| Stem | 65mm, 65mm, 80mm, 90mm | |
| Handlebar Width | 580mm, 580mm, 580mm, 580mm | |
| Crank | 165mm, 165mm, 170mm, 170mm |
