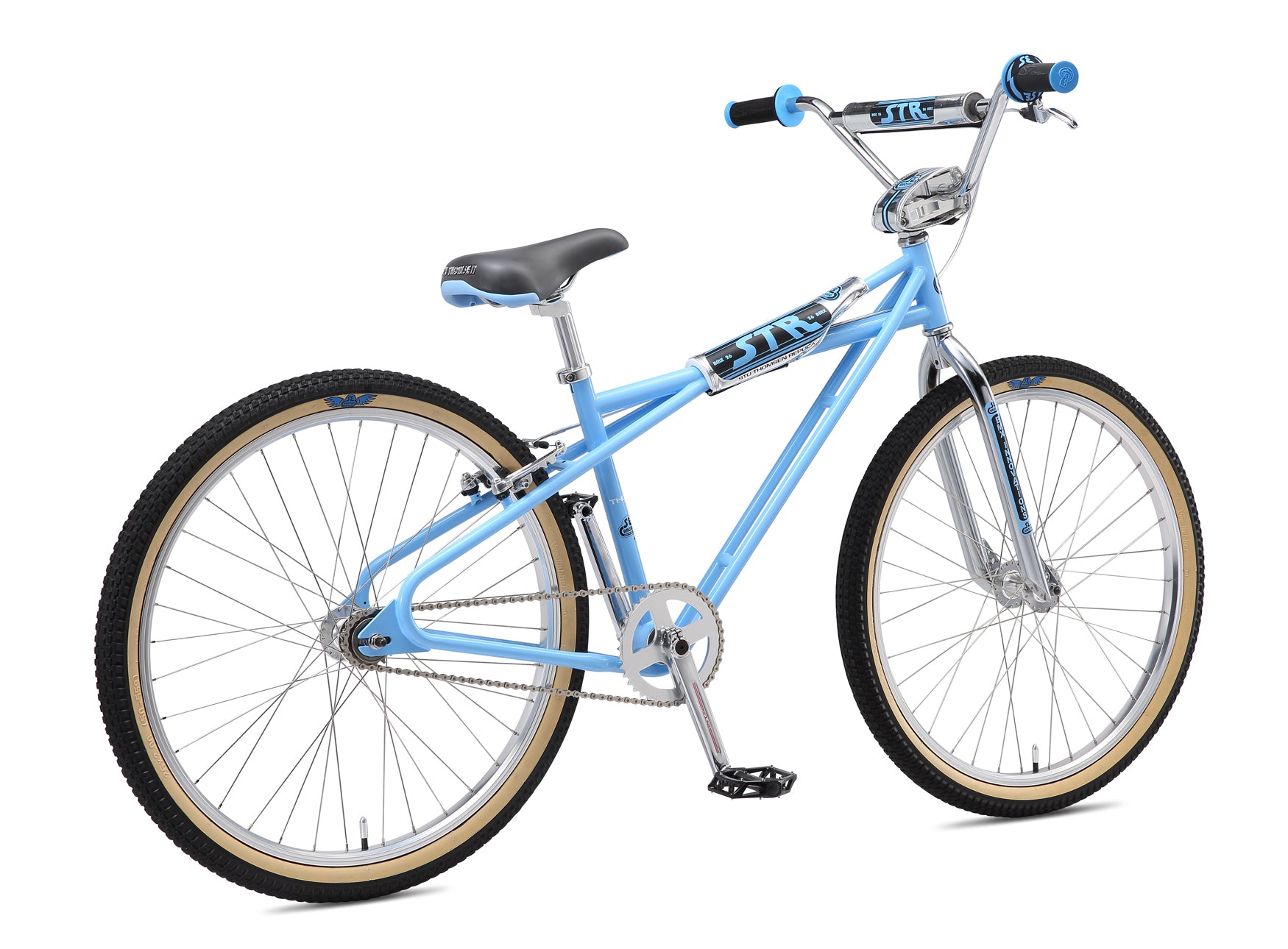

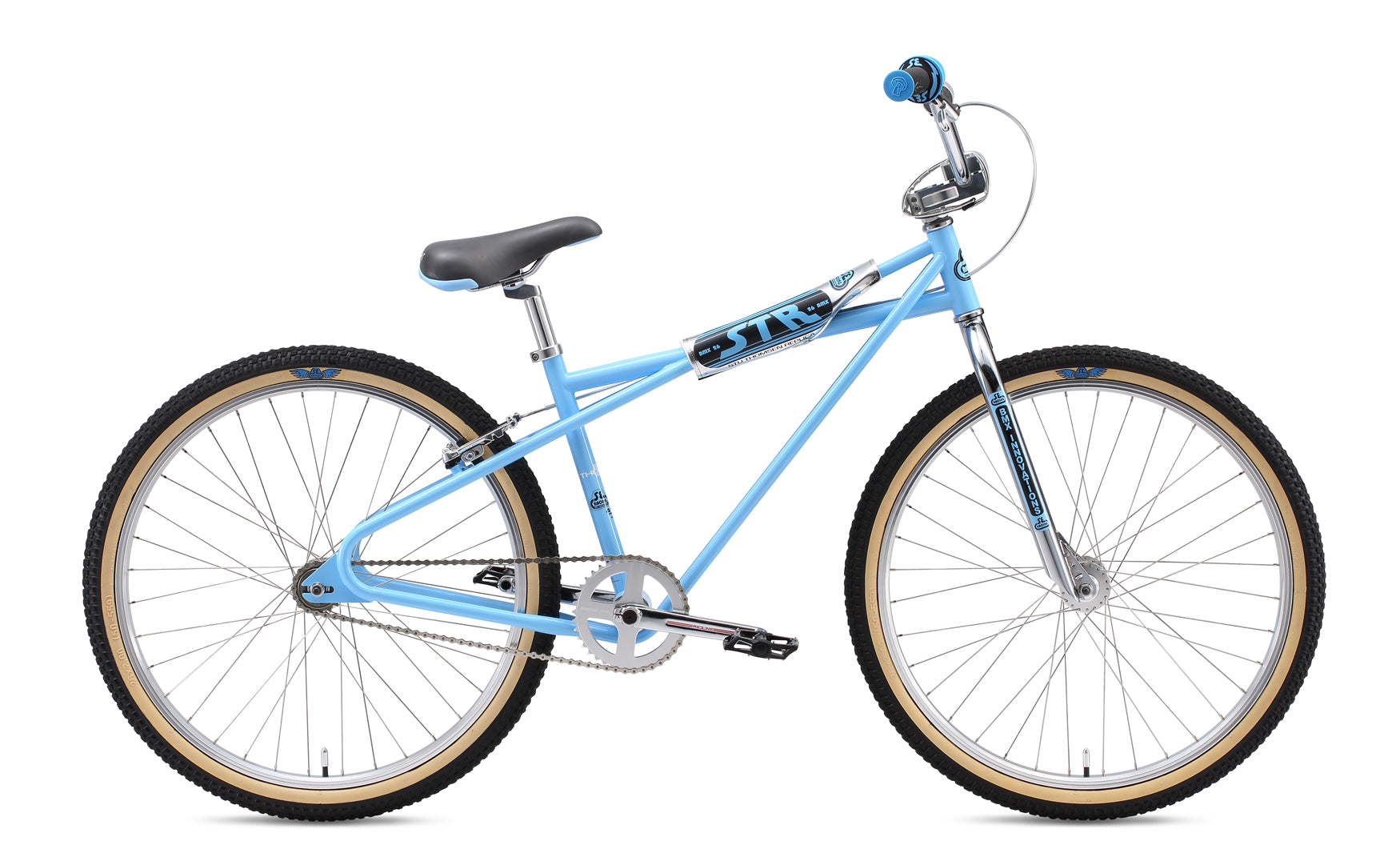

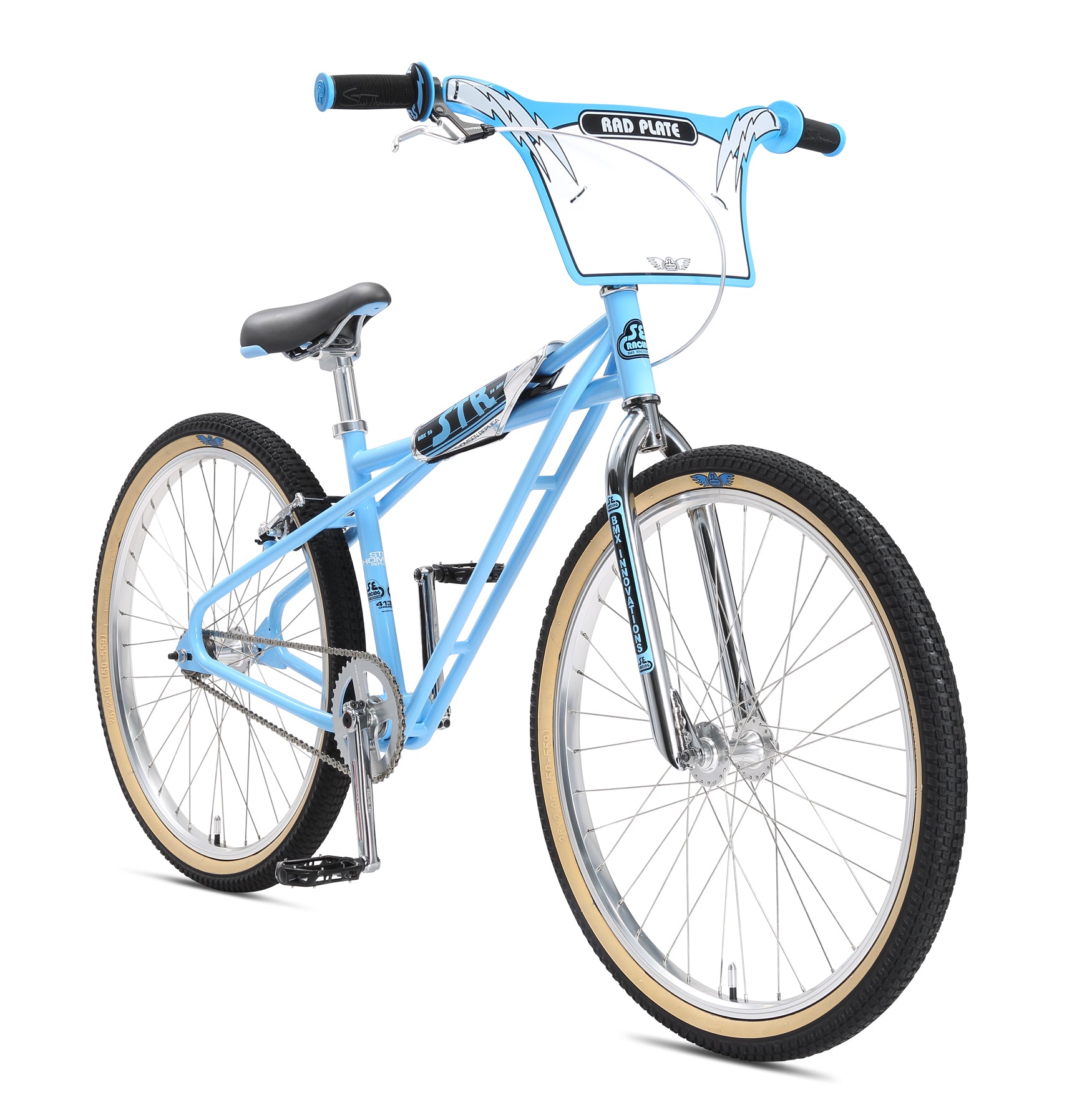

STR-26 Quadangle 26" (2018)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Stu Thomsen Replica, 100% Cr-Mo Tubing, STR-1 Inspired Double Downtube Wrap Beneath Bottom Bracket, Looptail Rear End, Retro Dropouts, Limited Edition & Individually Numbered on the Inside of the Rear Dropout |
| Fork | Cowboy Cut Landing Gear, Full Cr-Mo |
| Crankset | Redline Flight Cranks, Dual Pinch Bolt, 180mm, Sealed Bearing American Bottom Bracket, 39T Redline Flight Sprocket |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC Z410A |
| Wheelset | Sealed Bearing 36H High-Flange Hubs w/ Double-wall Rims, 17T Freewheel, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Cub, 26" x 2.0" Front & Rear |
| Brakeset | Tektro 837-AL V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 6" |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach |
| Grips | Special Edition ODI Mushroom II "Stu Thomsen" Signature Dual-Ply Grips w/ SE Donuts, Made in USA |
| Seat | Stu Thomsen SE Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | SE Retro Fluted Micro-Adjust Alloy, 27.2mm |
| Accessories | SE Racing Rad Plate, Chrome STR Quad Padset, Alloy Valve Caps, Cutom Stu Thomsen STR-26 Sticker Sheet, Authentic Trading Card Personally Signed by Stu Thomsen |
| Weight | 29.5 lbs / 13.38 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.1" |
| B | Seat Tube, Center To Top | 15" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 16.9" |
| F | Wheelbase | 41.6" |
| G | Bottom Bracket Height | 12" |
| H | Standover | 27.7" |
| Stem | 55mm | |
| Handlebar Width | 29" | |
| Crank | 180mm | |
| Wheel Size | 26" | |
| Seat Post Diameter | 27.2mm |
