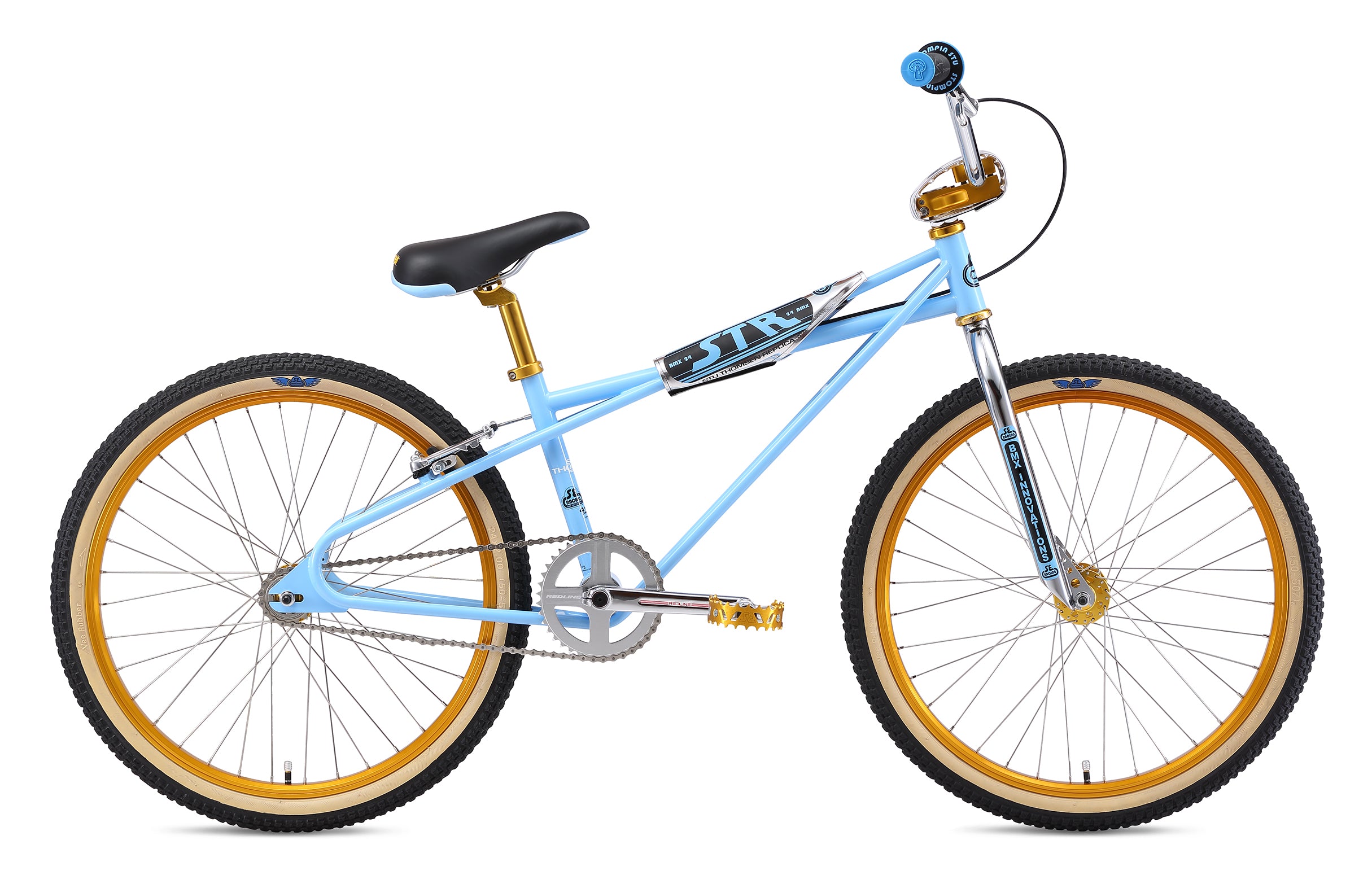

STR-24 Quadangle 24" (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Stu Thomsen Replica, 100% Cr-Mo Tubing, STR-1 Inspired Double Downtube Wraps Beneath 68mm Wide American Bottom Bracket, Looptail Rear End, Retro Dropouts, Limited Edition & Individually Numbered on the Inside of the Rear Dropout |
| Fork | Cowboy Cut Landing Gear, Full Cr-Mo |
| Crankset | Redline Flight Cranks, Dual Pinch Bolt, 180mm, Sealed Bearing American Bottom Bracket, 134mm Spindle Length, 19mm Spindle Diameter, 39T Redline Flight Sprocket |
| Pedals | SE Racing Bear Traps |
| Chain | KMC Z6 |
| Wheelset | Sealed Bearing SE Mohawk Hubs, 36H High-Flange Alloy, w/ Double-wall Rims, 17T Freewheel, Stainless Spokes |
| Tires | Vee Tire Co MK3 24" x 1.85" Front & Rear |
| Brakeset | Tektro 837-AL V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Tange DX4, Aluminum Cups, 1-1/8" Threadless, SE Wing Logos on Bottom Cup |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 6" , 10° Backsweep, 1° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach |
| Grips | Special Edition ODI Mushroom II "Stu Thomsen" Signature Dual-Ply Grips, Made in USA, w/ Stompin' Stu Donuts |
| Seat | Stu Thomsen SE Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | SE Racing Champ Clamp, Alloy, 29.8mm Inner Diameter |
| Accessories | SE Racing Rad Number Plate, Chrome STR Quad Padset, Alloy Valve Caps, Custom Stu Thomsen STR-26 Sticker Sheet, Authentic Trading Card Personally Signed by Stu Thomsen |
| Wheel Size | 24" |
| Weight | 28.2 lbs / 12.79 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22" |
| Seat Tube, Center To Top | 12" | |
| C | Seat Tube Angle | 72° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 15.3" |
| Wheelbase | 39.1" | |
| G | Bottom Bracket Height | 12" |
| Standover | 24.5" | |
| Stem | 55mm | |
| Handlebar Width | is 29" | |
| Crank | 180mm | |
| Wheel Size | 24" | |
| Seatpost Diameter | 27.2mm |
