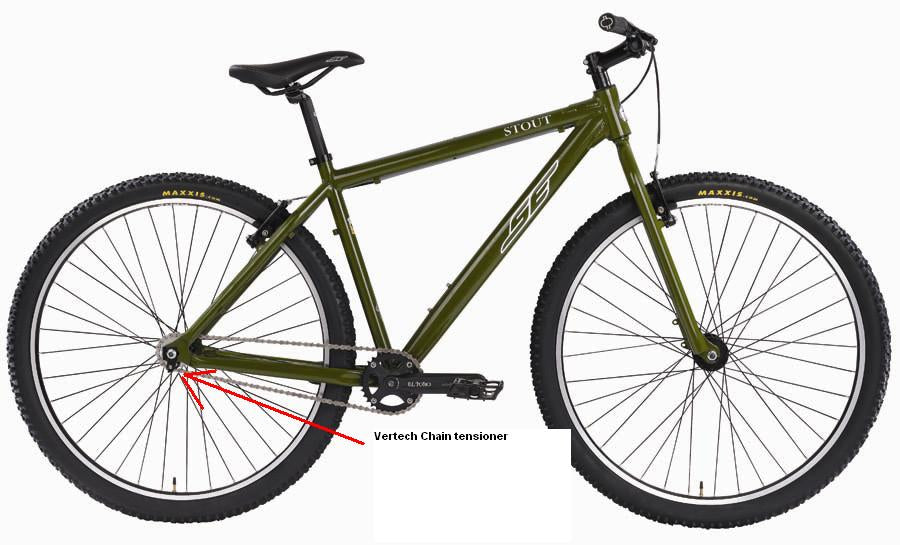

Stout 29" (2008)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Alloy w/ Disc Brake Tabs, Water Bottle Mount |
| Fork | 100% Cr-MO w/Disc Brake Tabs |
| Crankset | RPM El T oro 3-pc Alloy, FSA Sealed Euro w/ISIS Spindle, 32T Alloy |
| Pedals | Wellgo, Alloy Cage, Cr-Mo axle |
| Chain | KMC Z610 Silver |
| Wheelset | Alex DM18, Double Wall, CNC Sidewalls, w/ Stainless 14Ga. Spokes; SE Alloy Sealed Bearing, 36H, Nutted Front Hub; SE Alloy Cassette Hub, 36H, Nutted. w/ 18T Cassette Rear Hub |
| Tires | 29" WTB Nano Raptor 2.1" F&R |
| Brakeset | T ektro 837AL Linear Pull F&R |
| Brake Levers | T ektro 313A 2 Finger Alloy F&R |
| Headset | VP 1-1/8" Threadless, Semi -Cartridge Sealed, Press Fit Integrated |
| Handlebar | SE Racing 1.25" Alloy Riser Bar, 25.5" Wide |
| Stem | SE Alloy MTB, 7 Degree Sweep |
| Grips | SE Stretch Logo |
| Seat | SE Super Light w/ Custom Cover |
| Seatpost | SE Micro Adjust Alloy 27.2 |
| Seat Clamp | SE Alloy |
| Accessories | Removable Derailleur Hanger, Aluminum End caps |
| Wheel Size | 29" |
| Weight | 26.6 lbs |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 15", 17", 19" 21" | |
| A | Top Tube, Actual | 22.6"; 22.7"; 23.5"; 24.3" |
| C | Seat Tube Angle | 73°, 73°, 73°, 73° |
| D | Head Tube Angle | 71°, 72°, 72°, 72° |
| E | Chainstay Length | 17.7", 17.7", 17.7", 17.7" |
| G | Bottom Bracket Height | 11.9", 11.9", 11.9", 11.9" |
| Wheel Size | 29" |
