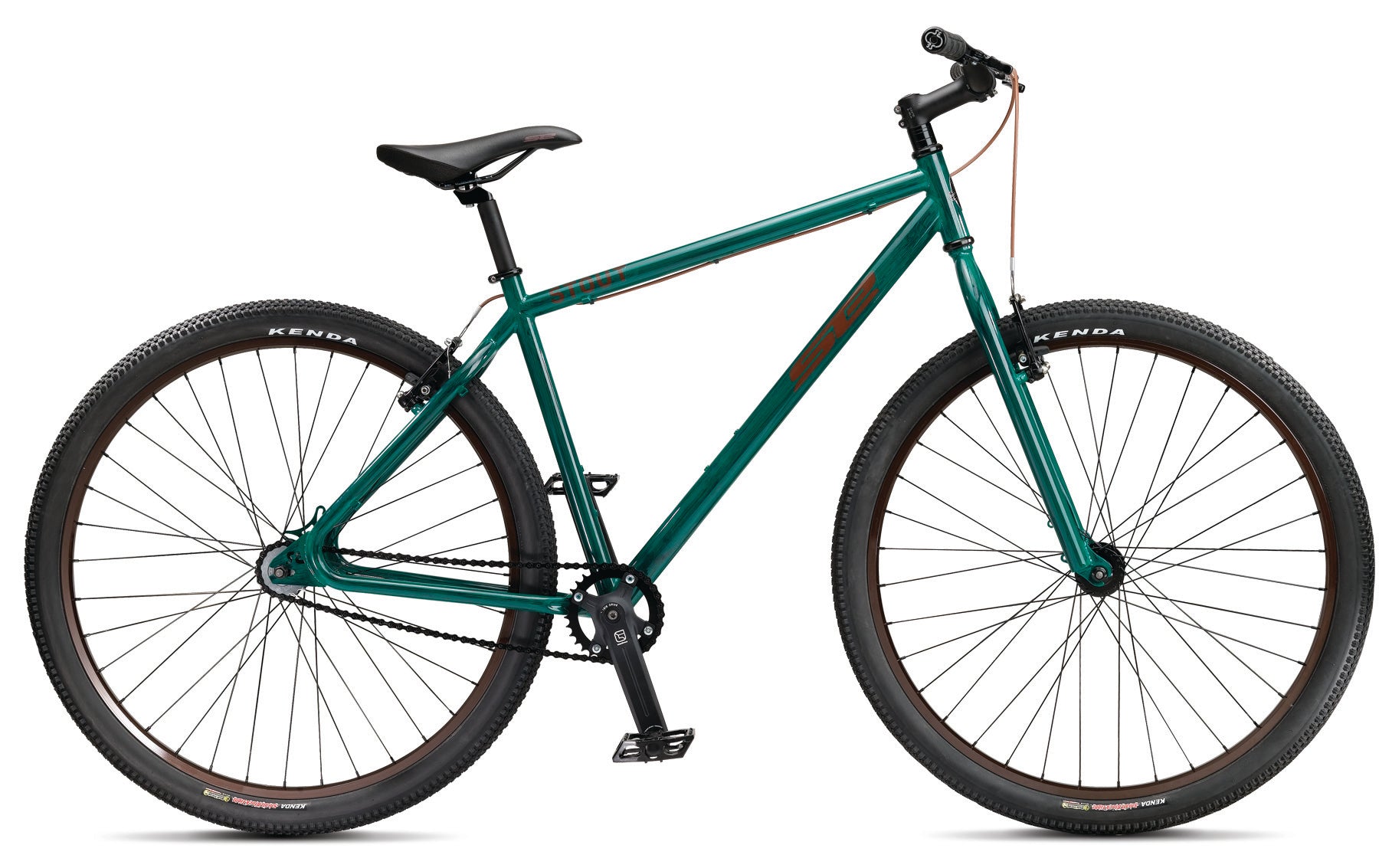

Stout 29" (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% CR-MO, Double Butted Top Tube & Down Tube, w/ Disc Brake Tabs, Looptail Rear End, Water Bottle Mounts |
| Fork | 100% Cr-MO w/Disc Brake Tabs |
| Crankset | Gravity Maximus 3-pc Alloy, Sealed Euro w/ ISIS Spindle, 175mm, 32T |
| Pedals | Wellgo, Alloy Cage, Cr-Mo axle |
| Chain | KMC Z610 Silver |
| Wheelset | Alex DM-18, Double Wall, CNC Sidewalls, w/Stainless 14Ga. Spokes; SE Alloy Sealed Bearing Disc Hub, 36H, Nutted Front Hub; SE Alloy Cassette Disc Hub, 36H, Nutted, 18T Rear Hub |
| Tires | Kenda Small Block 8, 2.1 F&R |
| Brakeset | Tektro 837AL Linear Pull F&R |
| Brake Levers | Tektro 313A 2 Finger Alloy F&R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Racing 2" Alloy Riser Bar, 25.5" Wide |
| Stem | SE Alloy MTB, 7 Degree Rise |
| Grips | SE Bubble Logo Grip |
| Seat | SE Super Light w/ Custom Cover |
| Seatpost | SE Micro Adjust Alloy 27.2mm |
| Accessories | Removable Derailleur Hanger, SE Alloy End caps |
| Wheel Size | 29" |
| Weight | 28.7 lbs (17in) |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 15", 17", 19", 21" | |
| A | Top Tube, Actual | 22.6", 22.7", 23.4", 24.25" |
| Top Tube, Effective | 23.1", 23.7", 24.5", 25.2" | |
| C | Seat Tube Angle | 74°, 73°, 73°, 73° |
| D | Head Tube Angle | 71°, 72°, 72°, 72° |
| E | Chainstay Length | 17.7", 17.7", 17.7", 17.7" |
| G | Bottom Bracket Height | 11.9", 11.9", 11.9", 11.9" |
| Wheel Base | 42.9", 42.5", 43.2", 44.0" |
