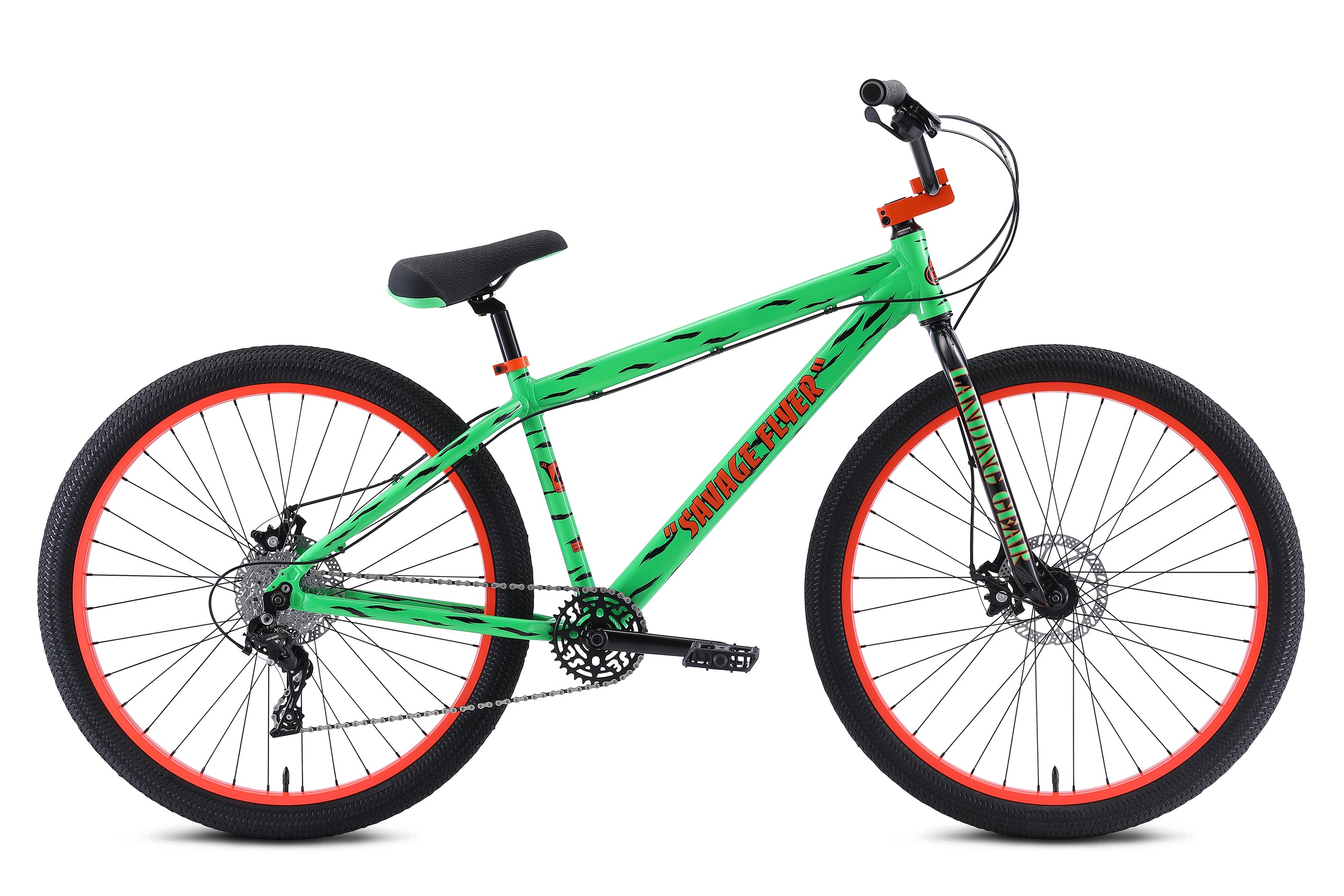

Savage Flyer 27.5" (2022)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Internal Head Tube, 68mm Wide Mid Bottom Bracket, 135mm Spaced Fixed Dropouts, Wide Rear Stays, Disc Brake Tabs, Removable Derailleur Hanger |
| Fork | Landing Gear, Cr-Mo, Disc Brake Tabs |
| Crankset | SE 3-pc Cr-Mo, 175mm, Sealed Bearing Mid Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 33T SE Sprocket |
| Pedals | SE Nylon Fiber Platform |
| Rear Derailleur | MicroShift XLE RD-M61S, 1x10, Short Cage |
| Shifters | MicroShift XLE Xpress SL-M850-R, 1x10, Sealed Bearing, Alloy Lever |
| Cassette | MicroShift XLE CS-H100, 10-speed, 11-32T |
| Chain | KMC X10 |
| Wheelset | Alloy 36H Nutted Hubs, 135mm Sealed Rear Hub, 110mm Front Hub, Double-wall Rims, 11-32T 10-speed Cassette, Stainless Spokes |
| Tires | Kenda Kiniption, 27.5" x 2.3" Front & Rear |
| Brakeset | Tektro Aries, MD-280, Mechanical Disc, 160mm Rotors Front & Rear |
| Brake Levers | Tektro MT2.1, 2-Finger Alloy Front & Rear |
| Headset | FSA Internal, No.10, 1-1/8" |
| Handlebar | Big Honkin' Cruiser Bar, 31" x 6", 10° Backsweep, 1° Upsweep |
| Stem | SE Bike Life Alloy T op-Load, 55mm Reach |
| Grips | SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs |
| Seat | SE Savage Flyer Seat w/ Super Grippy Top Cover |
| Seatpost | Race Rocker Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8mm Inner Diameter |
| Accessories | Alloy Valve Caps, Removable Derailleur Hanger |
| Wheel Size | 27.5" |
| Weight | 34.0 lbs / 15.83 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.8" |
| Seat Tube, Center To Top | 15.7" | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay | 17.4" |
| Wheelbase | 42.4" | |
| G | Bottom Bracket Height | 11.9" |
| Standover | 29.5" | |
| Stem | 55mm | |
| Handlebar Width | 31" | |
| Crank | 175mm | |
| Wheel Size | 27.5" | |
| Seat Post Diameter | 27.2mm |
