Ripper
Ripper
Ripper

Ripper

$669.99
Description

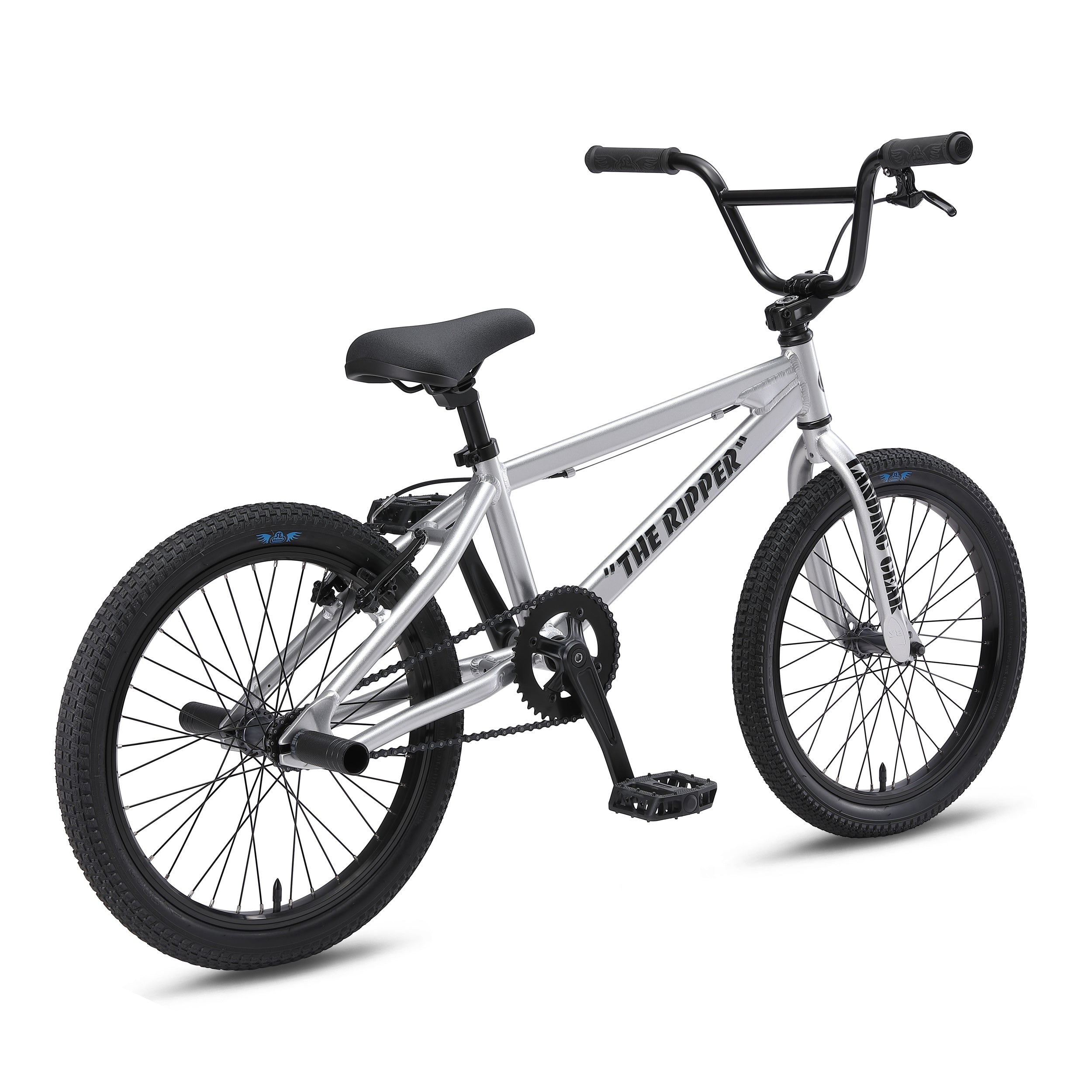

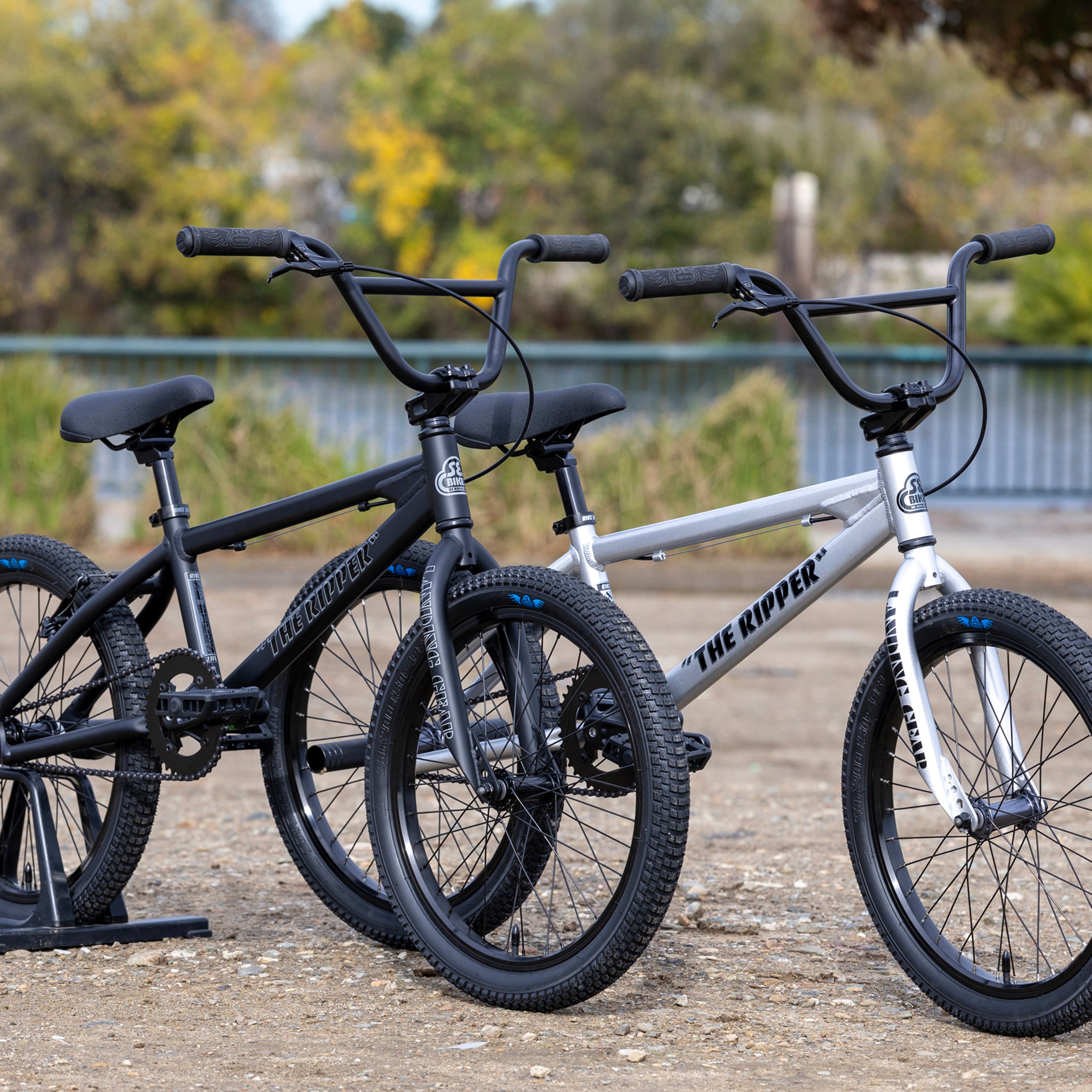

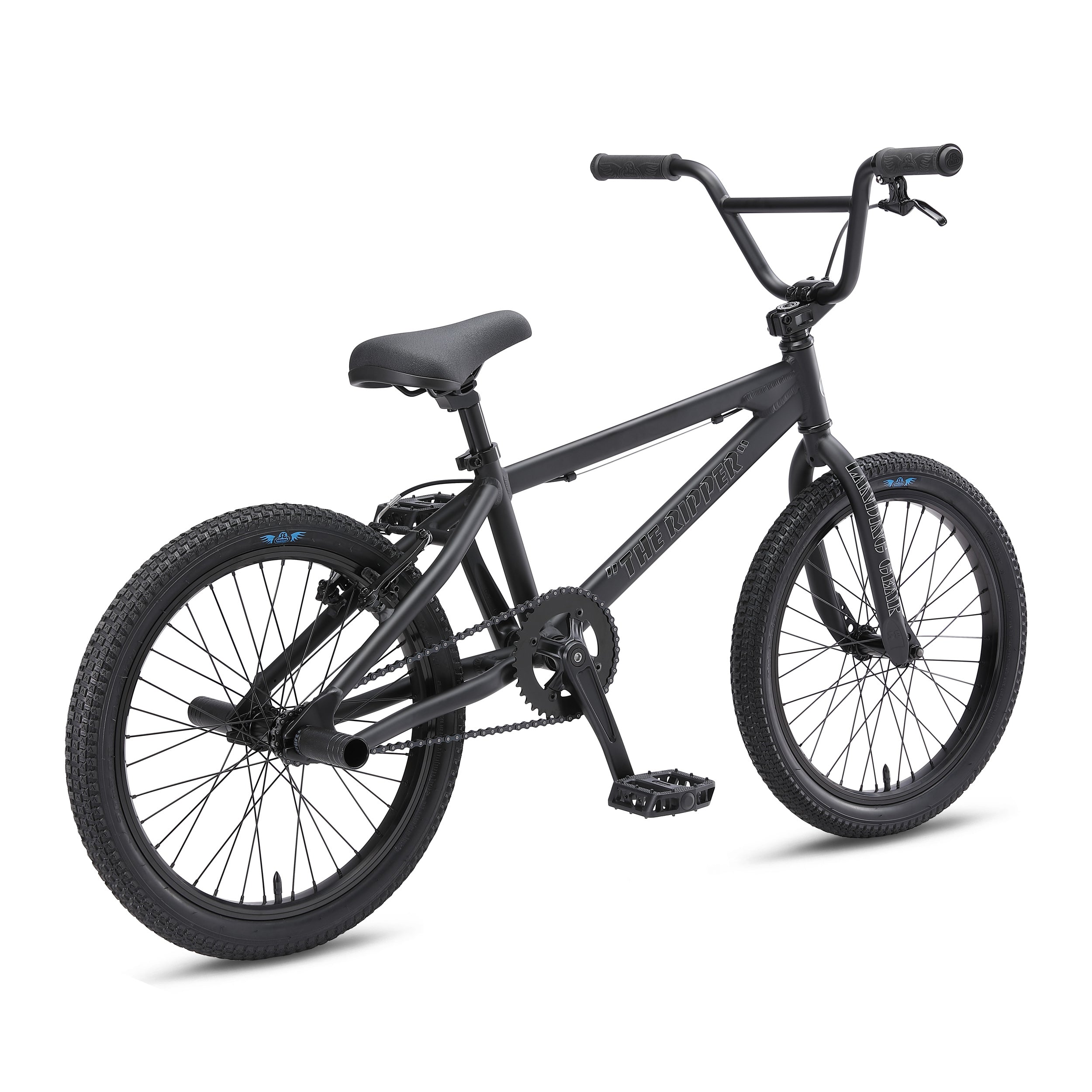

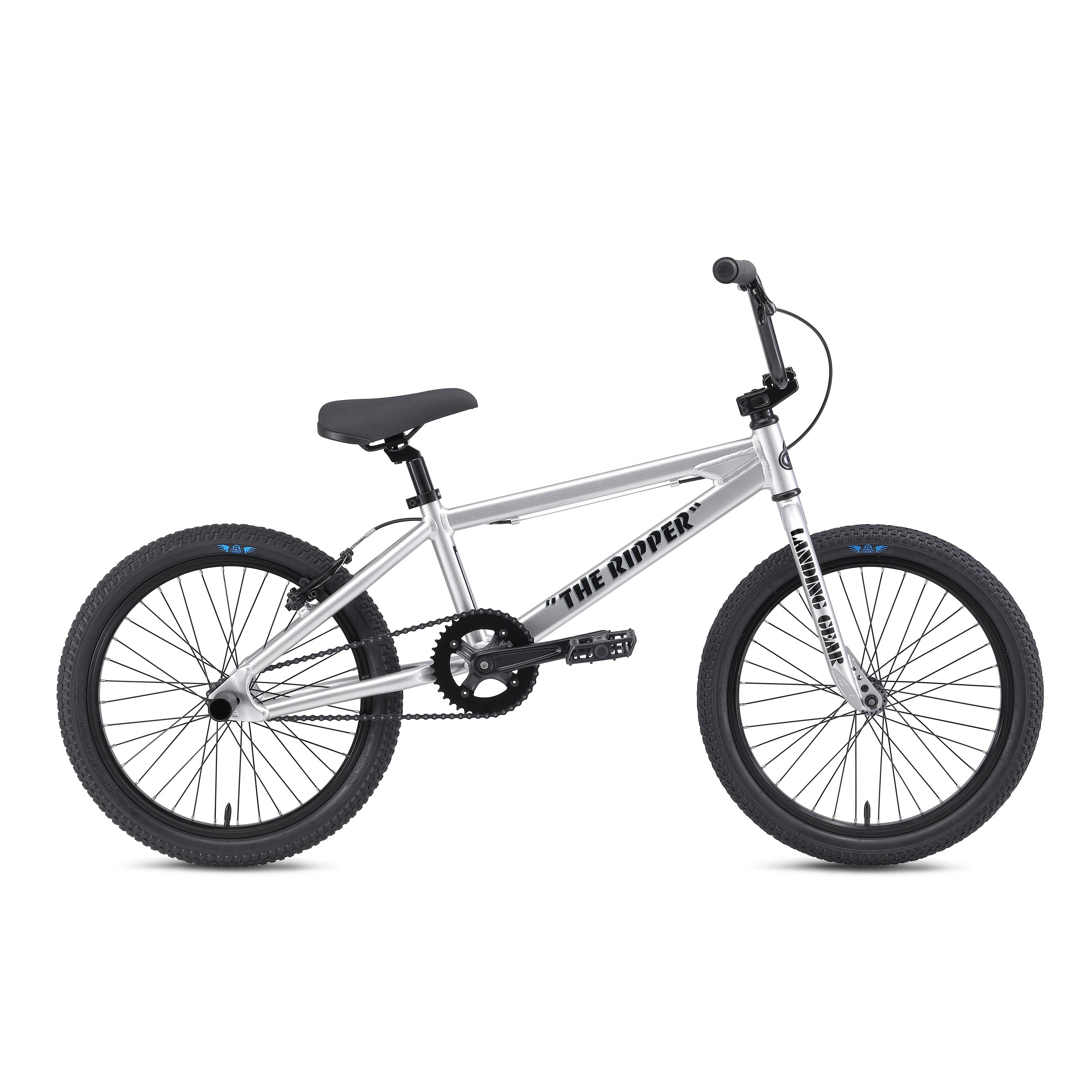

The lightweight aluminum Ripper bike is the perfect bike for kids to get a taste of the SE bike life. Built around 20 wheels and with a short 20" top tube, this bike fits the youngsters perfectly. This multi-purpose bike is perfect for the BMX track, dirt jumps, or cruising around and doing wheelies with friends in the neighborhood. The world will be a better place with more kids on bikes!
ColorIced Out Silver
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Lightweight 6061 aluminum Floval tubing frame with Euro bottom bracket and SE Wave dropouts
  • Alex C1000 rims with alloy hubs
  • Vee Tire Co Cub 20" x 2.0" tires
  • Lightweight top-load stem with hidden top cap for a clean look
  • Ripper seat with super grippy top cover
  • SE Bike Life grips with rubber end plugs
  • 6061 forged alloy 3-piece cranks
  • SE nylon fiber pedals

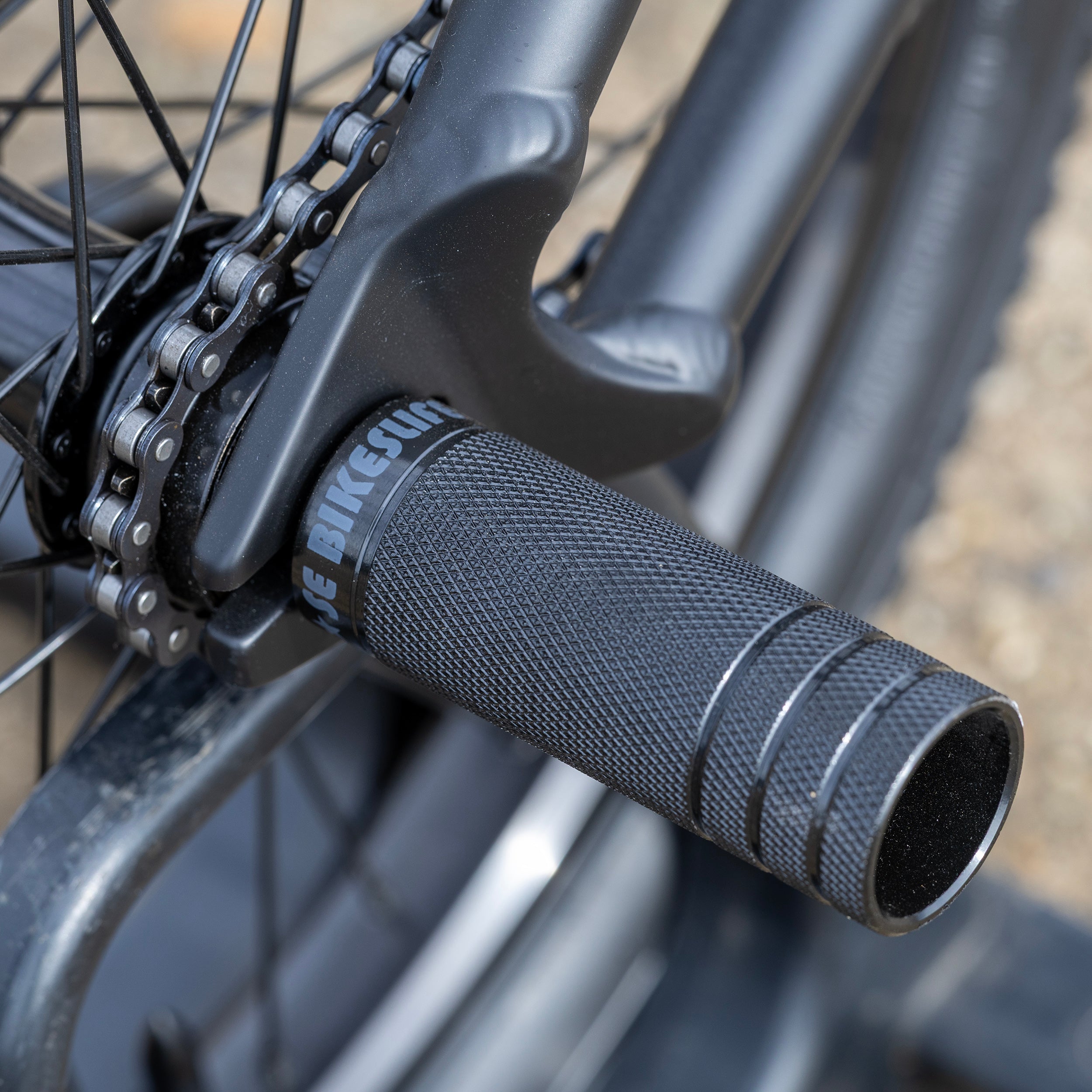

  • SE Wheelie Pegs and alloy valve caps included
  • 23.3 pounds
SPECIFICATIONS
Frame 6061 Aluminum Floval Tubing, 68mm Wide Euro Bottom Bracket, SE Wave Dropouts

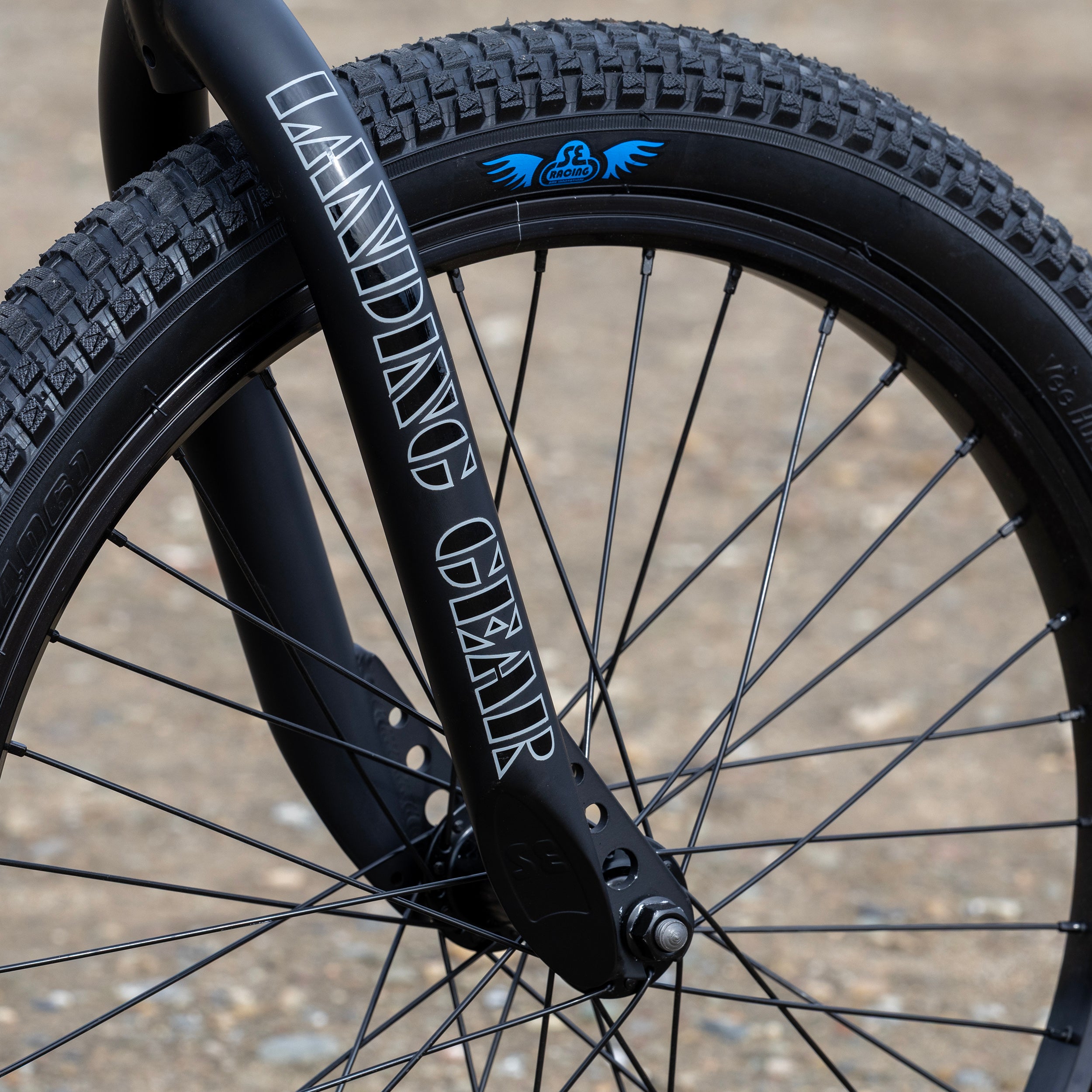

Fork Landing Gear

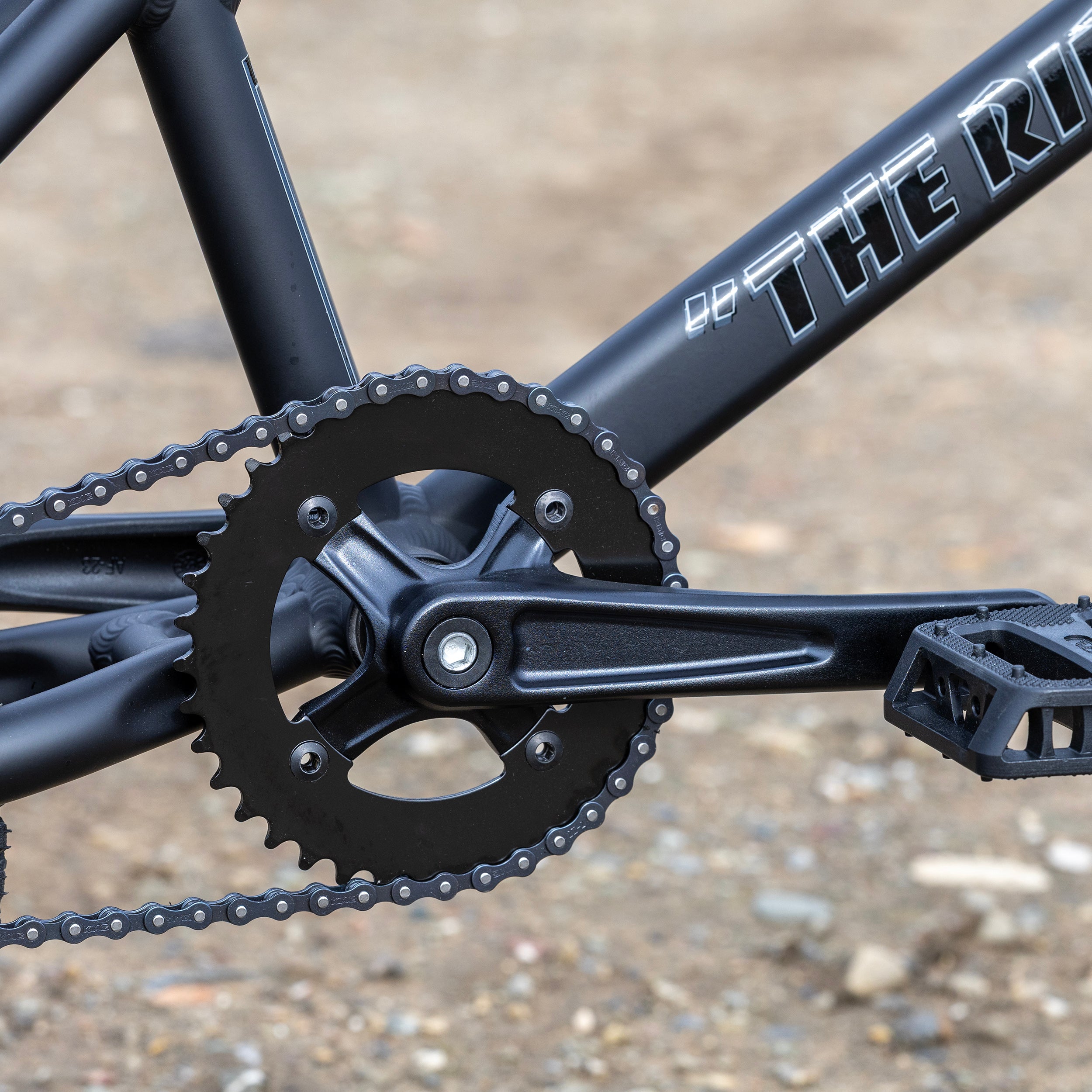

Crankset SE 3-pc 6061 Alloy, 170mm, Euro-Sealed Bearing Bottom Bracket, 117.5mm Spindle Length, 38T Chainring

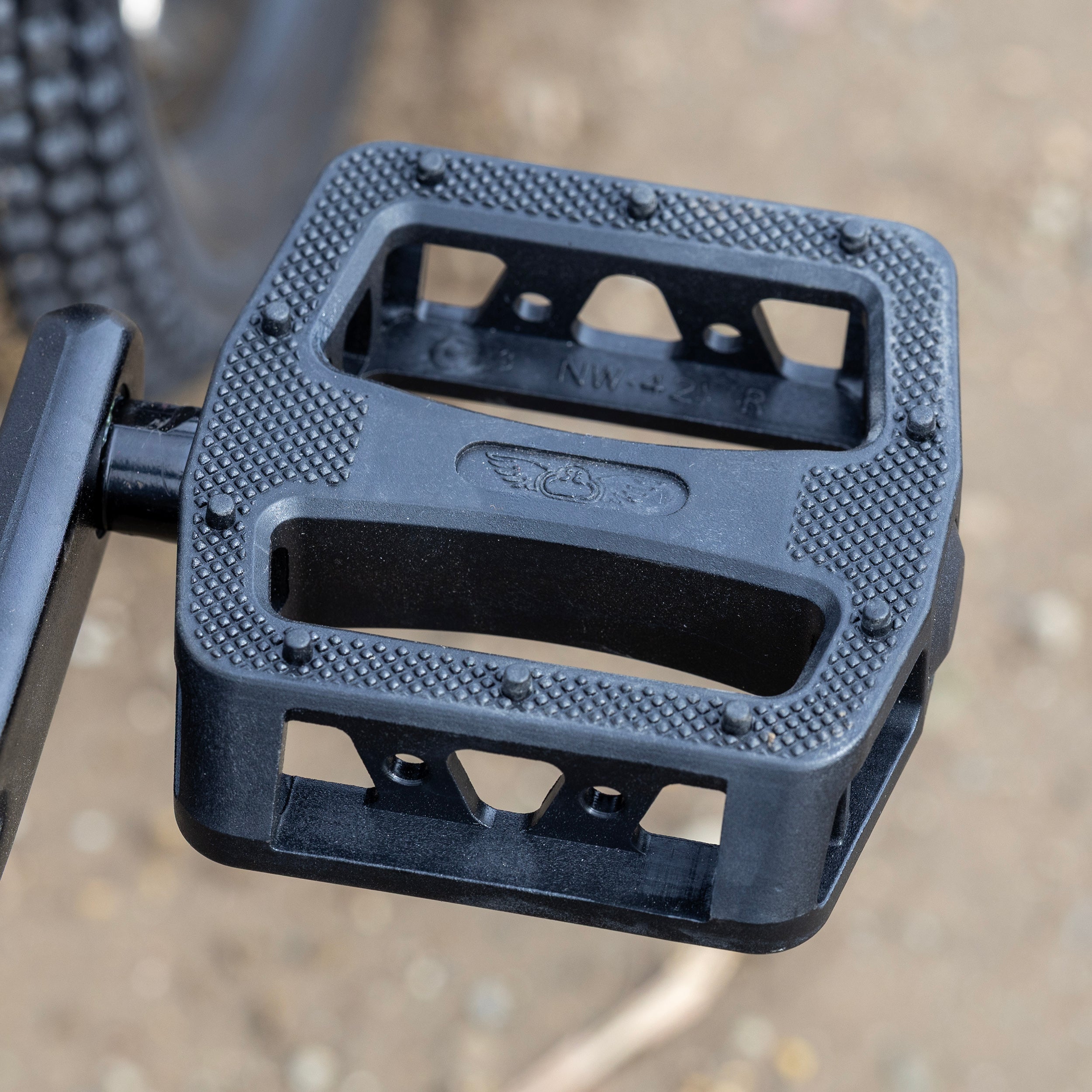

Pedals SE Nylon Fiber Platform
Chain KMC S1

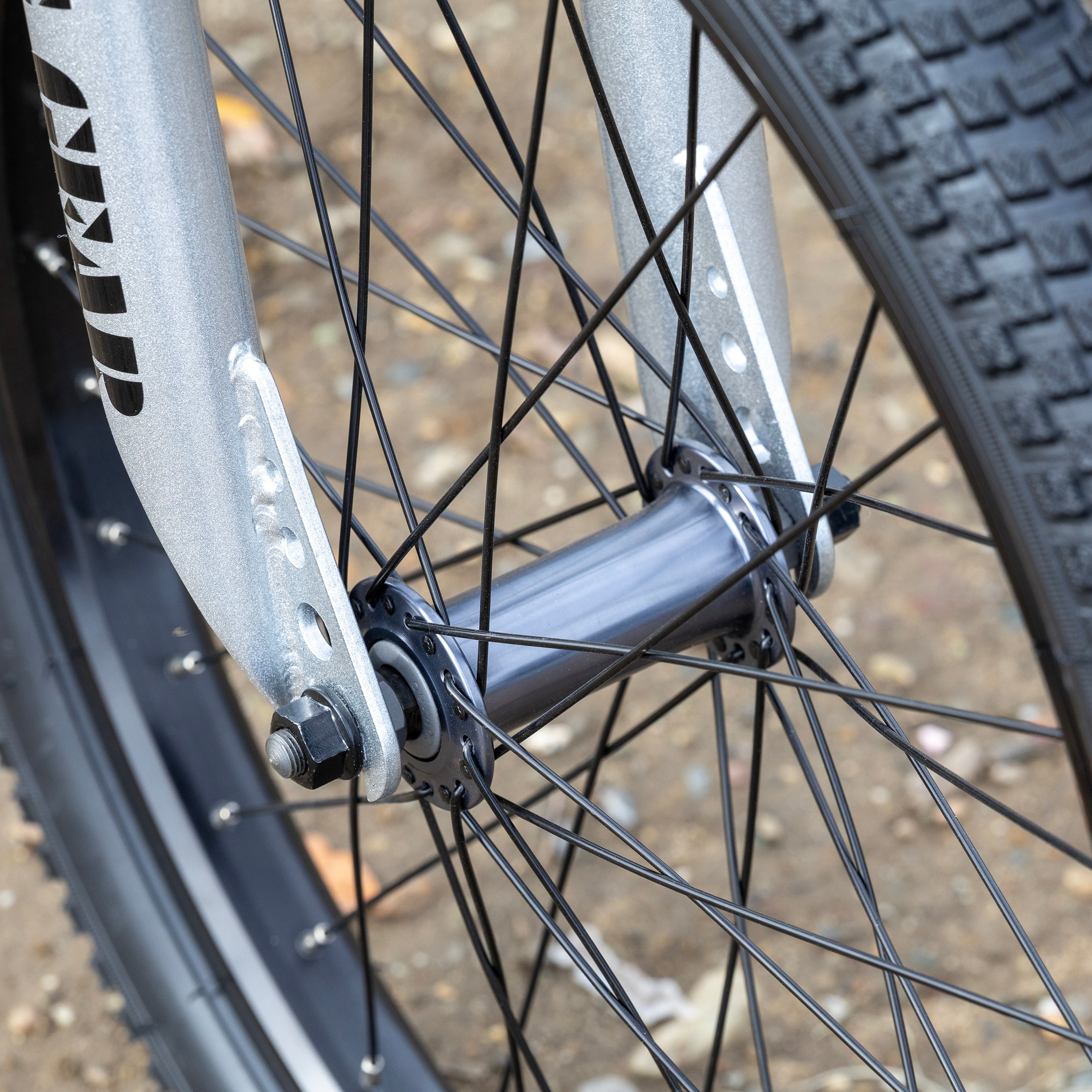

Wheelset SE Racing Alloy 36H Flip-Flop Hubs w/ Alex C1000 Rims, 14T Freewheel
Tires Vee Tire Co x SE Racing Cub, 20" x 2.0" Front & Rear

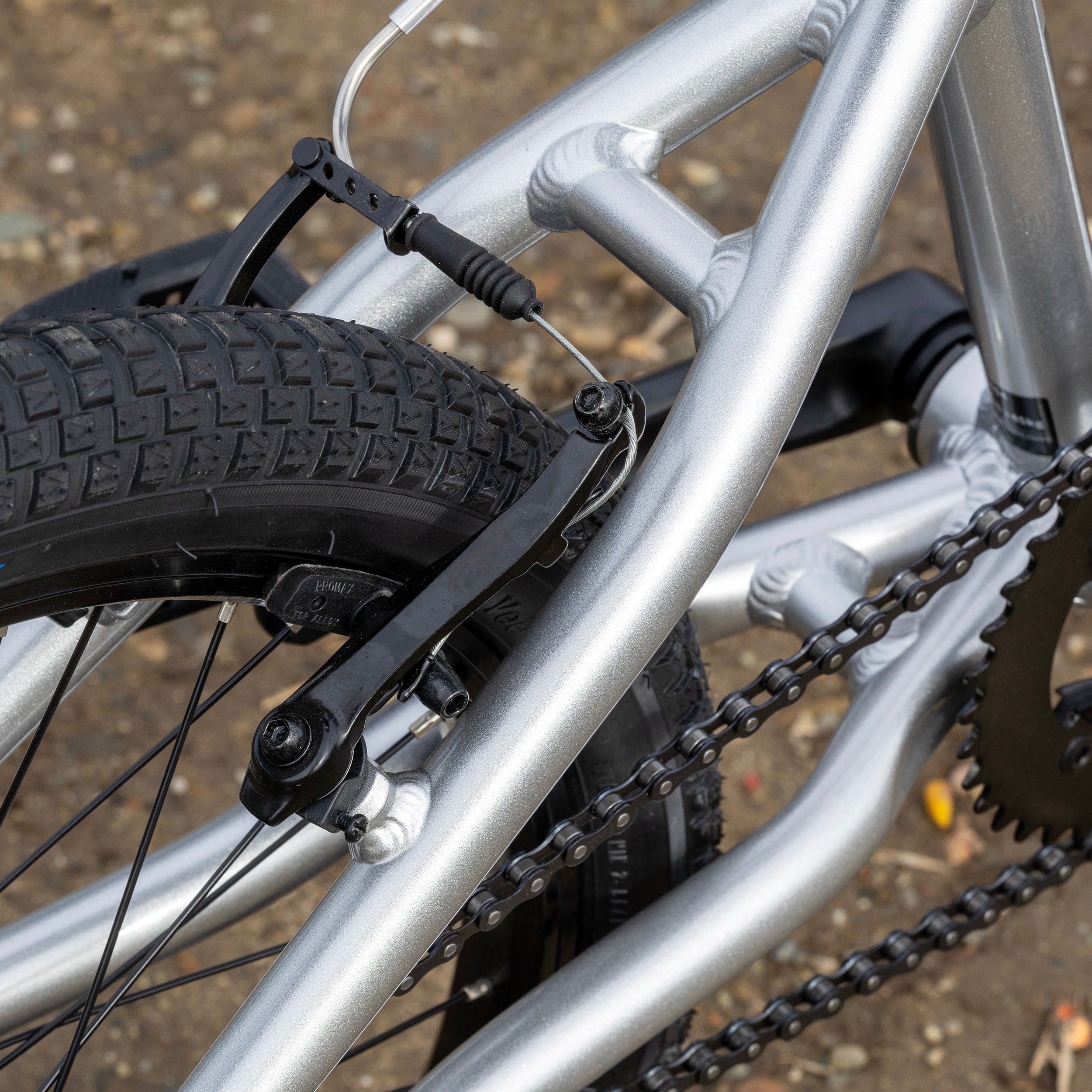

Brakeset Promax V-Brake
Headset Tange 1-1/8" Threadless
Handlebar SE Wing Bar, 25.5" x 7", 11° Backsweep, 3° Upsweep

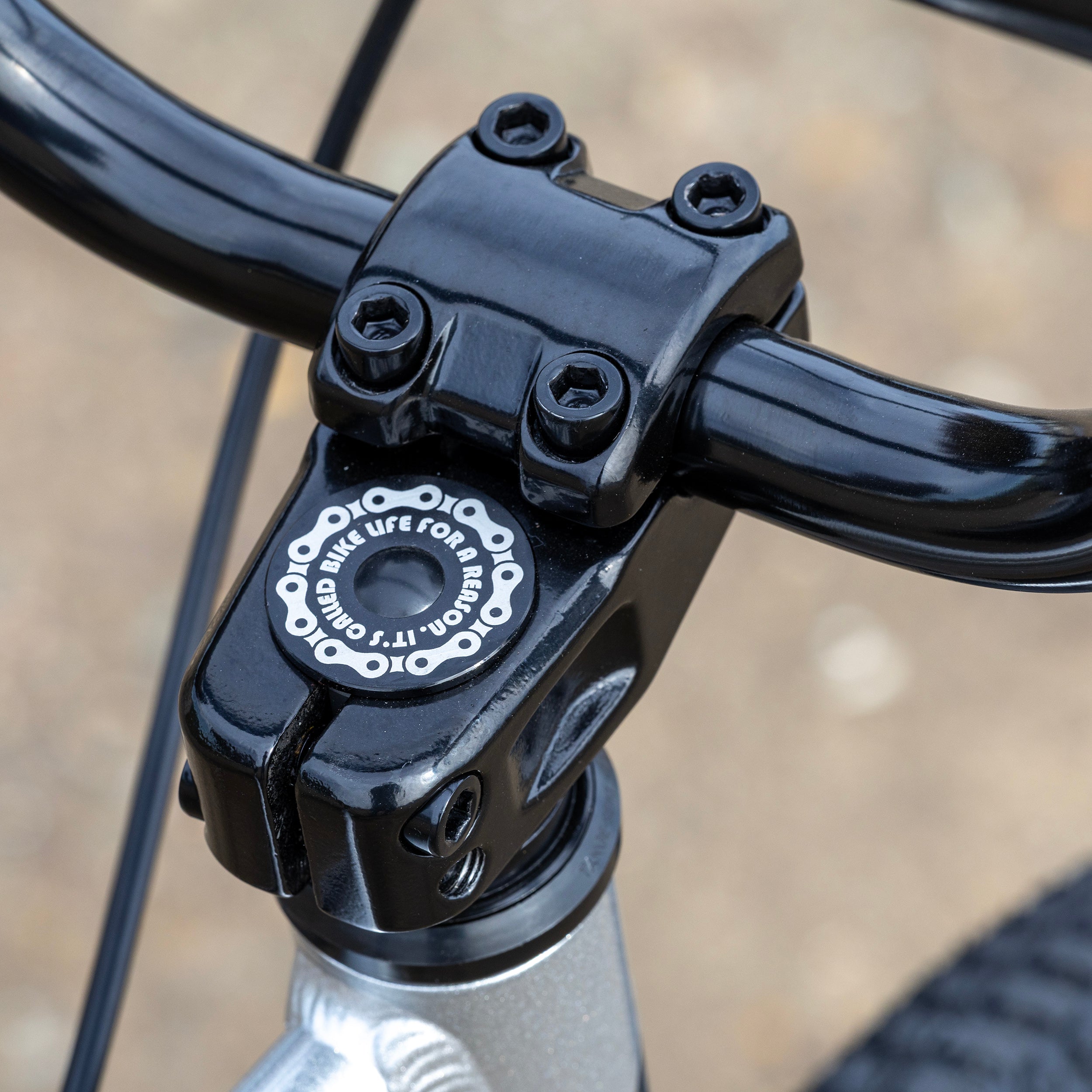

Stem SE Top-Load Alloy w/ Weight-Saving Cutouts, Hidden Top Cap, 40mm Reach

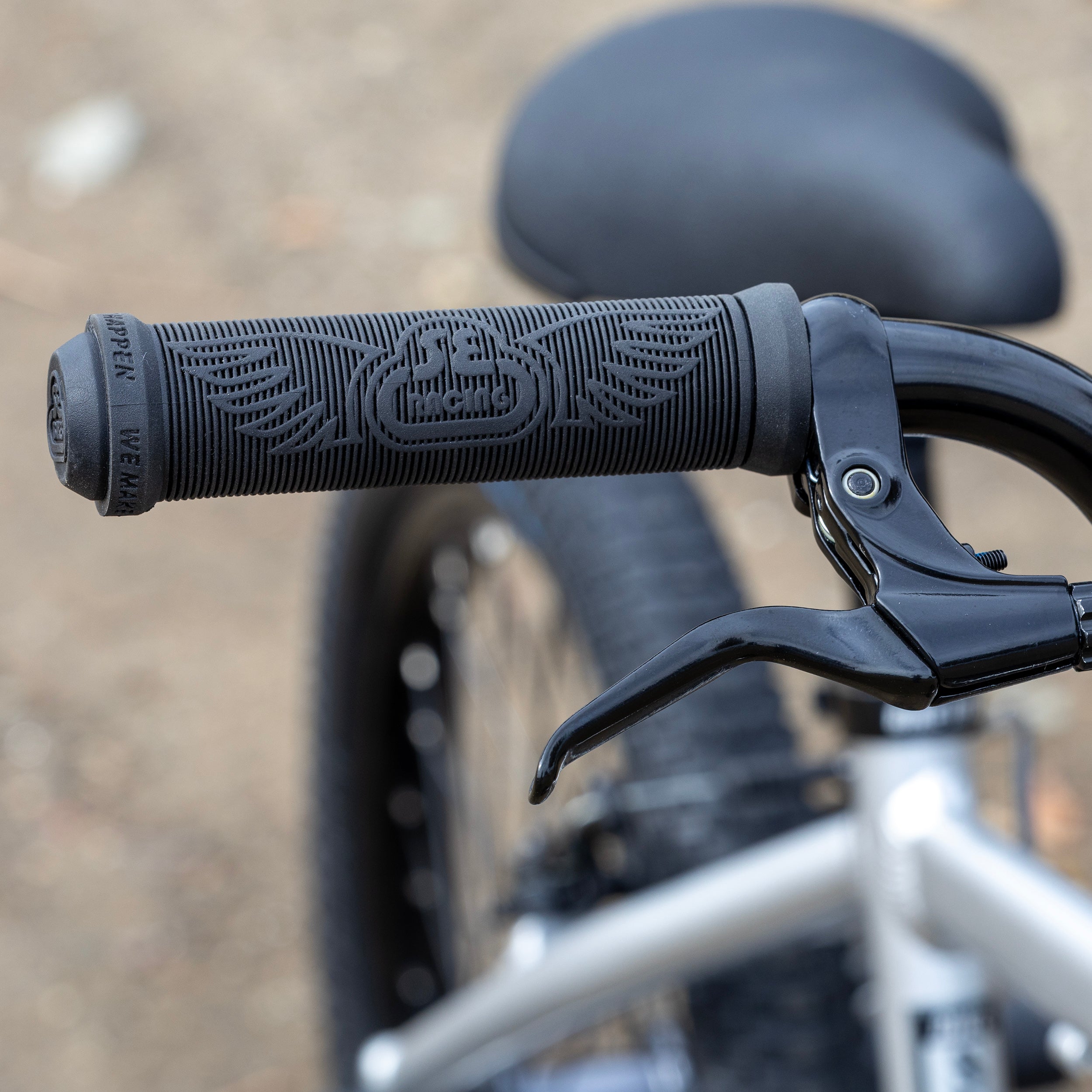

Grips SE Bike Life Grips w/ SE Rubber End Plugs

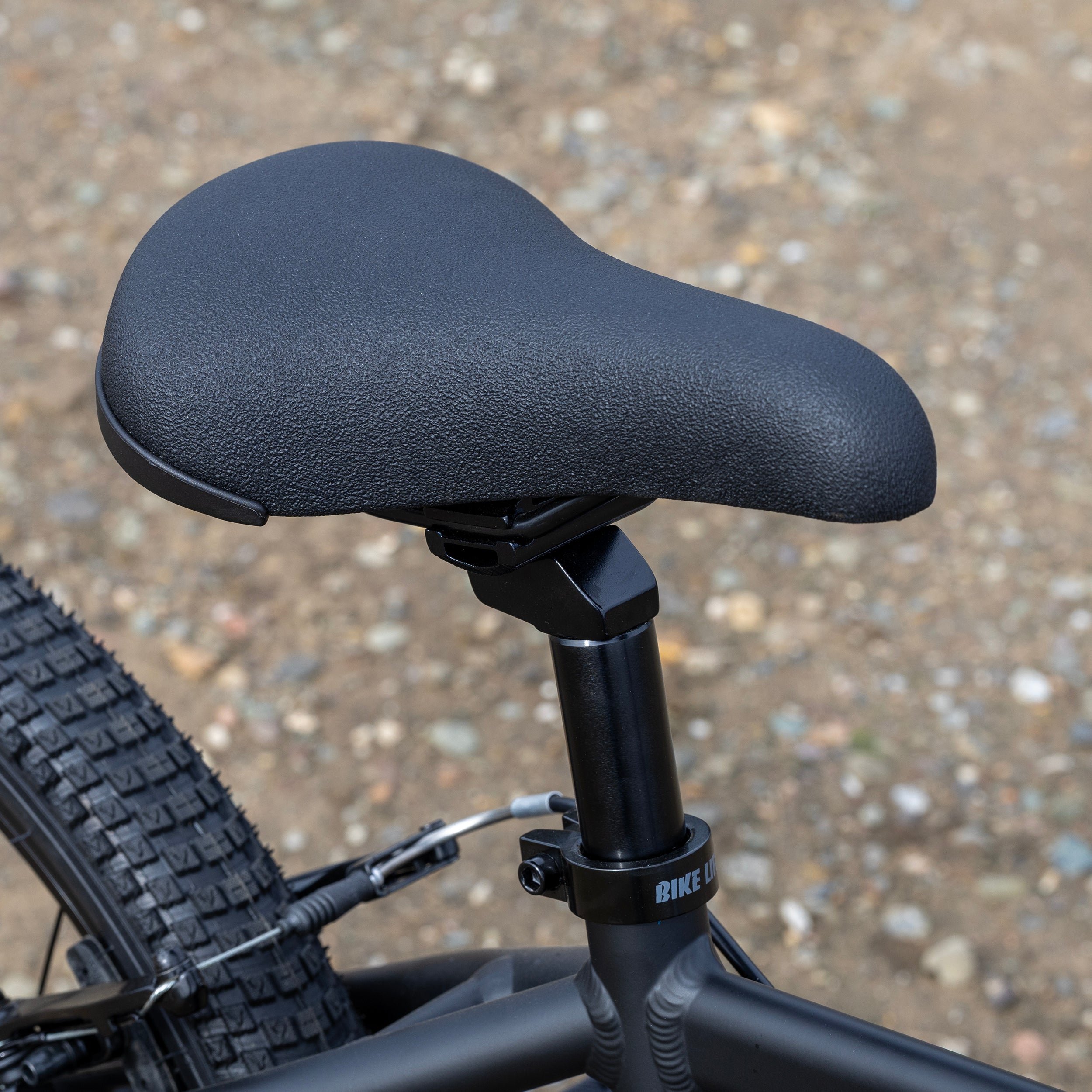

Seat SE Ripper Seat w/ Super Grippy Top Cover
Seatpost ace Rocker Micro-Adjust Alloy, 27.2mm
Accessories SE Bike Life Wheelie Pegs, Alloy Valve Caps

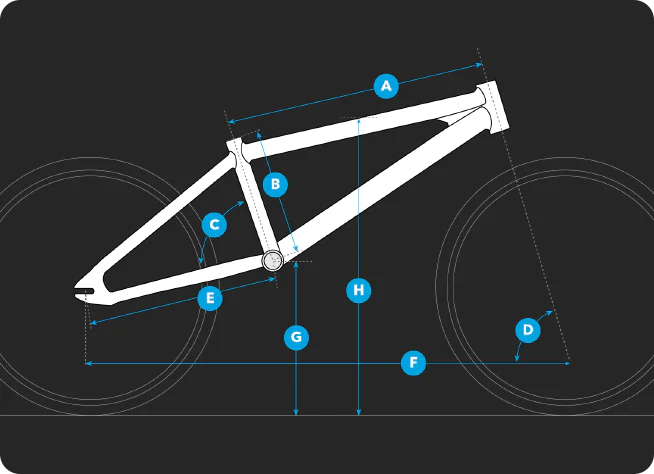

GEOMETRY
A Top Tube, Actual 20"
B Seat Tube, Center To Top 10.2"
C Seat Tube Angle 71°
D Head Tube Angle 74°
E Chainstay Length 14.8"
F Wheelbase 36.8"
G Bottom Bracket Height 12"
H Standover 22.9"
Suggested Rider Size 4'8"- 5'5" (142cm-165cm)
Stem 40mm
Handlebar Width 25.5"
Crank 170mm
Wheel Size 20"
Seat Post Diameter 27.2mm
Geometry diagram
