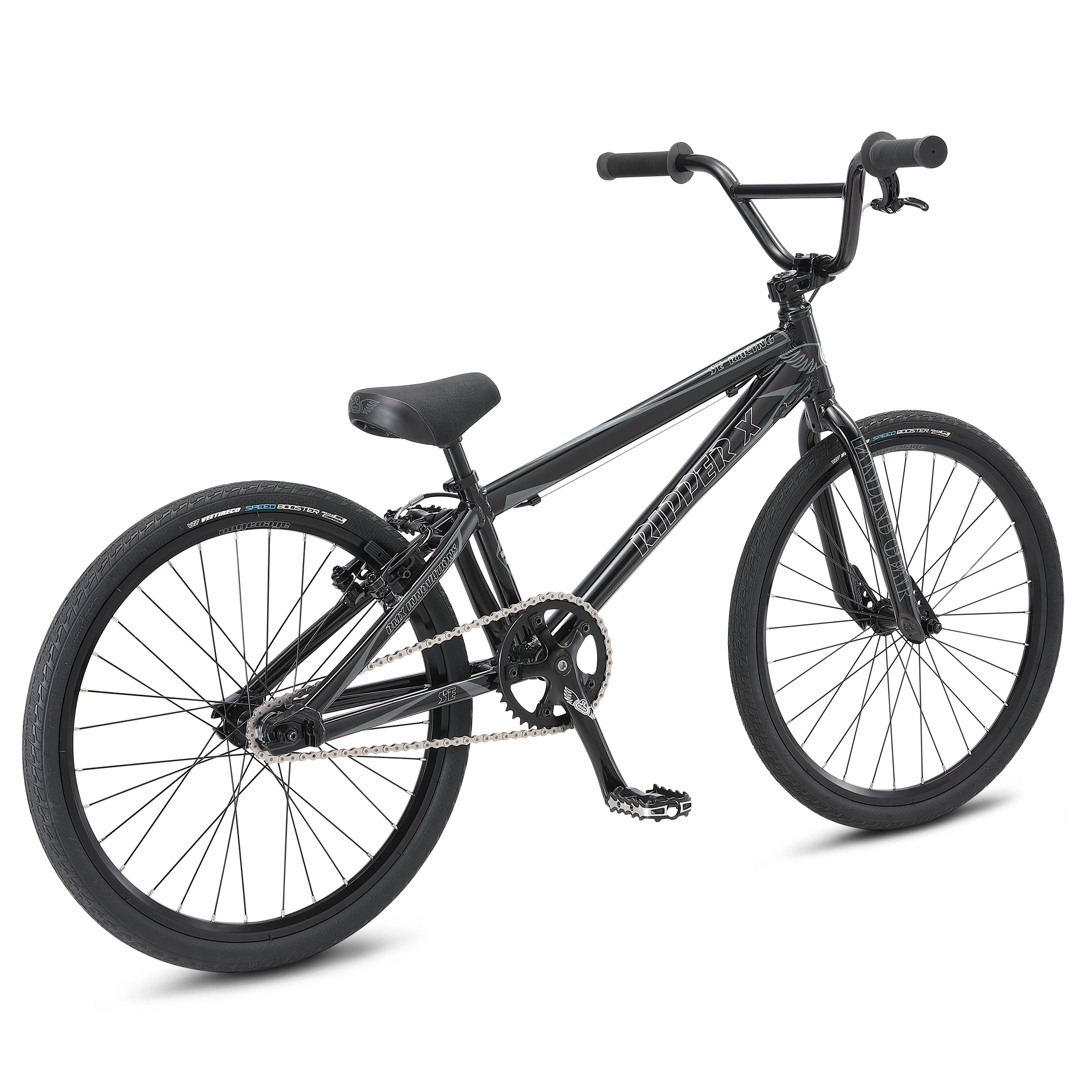

Ripper X
Ripper X
Ripper X

Ripper X

$849.99
Description

Built with a super-stiff 6066 aluminum frame featuring a bi-oval downtube and 6066 aluminum Landing Gear forks, this rad ride weighs in at a featherweight 16.9 pounds. Rounding out the package are Alienation Ankle Biter rims, a Promax Impact Mini stem and new Vee Tire Co Speed Booster tires. It's no wonder that the Ripper X is one of the fastest rippers on the track.
ColorFast Black
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube and rectangular rear stays for maximum stiffness
  • Lightweight 6066 aluminum Landing Gear forks with Cr-Mo steerer tube
  • Alloy SE Wing bars
  • Promax Impact Mini 6061-T6 aluminum CNC stem with hidden top cap for a clean look
  • Stiff and lightweight 3-piece 165mm alloy cranks
  • Vee Tire Co Speed Booster 1-3/8" tires provide ultra-quick cornering and low rolling resistance
  • Alienation Ankle Biter rims built with sealed cassette hubs with lightweight hollow axles
  • 16.9 pounds
SPECIFICATIONS
Frame Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Bi-Oval Down Tube, 68mm Wide BB, Rectangular Seat & Chainstays, 3D-Forged Dropouts
Fork 6066 Alloy Landing Gear, Cr-Mo Steerer Tube
Crankset SE Racing 3-pc Alloy, 165mm, Euro-Sealed Bearing Bottom Bracket, 103mm Spindle Length, 38T Alloy Chainring
Pedals Wellgo Alloy Caged, Cr-Mo Axle
Chain KMC Z1
Wheelset Sealed Bearing Hollow Axle Alloy Hubs w/ Alienation Ankle Biter Double-Wall, 32H Rims, 15T Cassette, Stainless Spokes
Tires Vee Tire Co Speed Booster 20" x 1-3/8" Front & Rear
Brakeset Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable
Headset Neco Sealed 1" Integrated Headset
Handlebar Alloy SE Wing Bar, 24.5" x 6", 11° Backsweep, 3° Upsweep
Stem Promax Impact Mini 1", 6061-T6 Alloy, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 45mm Reach
Grips Expert Grips
Seat SE Racing Mini w/ Integrated Alloy Post
Seatpost Integrated Alloy, 22.2mm
Accessories SE Chain Tensioners
GEOMETRY
A Top Tube, Actual 19.5"
B Seat Tube, Center To Top 9.1"
C Seat Tube Angle 70°
D Head Tube Angle 73°
E Chainstay Length 13.8"
F Wheelbase 35"
G Bottom Bracket Height 11"
H Standover 22.7"
Suggested Rider Size 4'6"- 5'3" (137cm-160cm)
Stem 45mm
Handlebar Width 24.5"
Crank 165mm
Wheel Size 20"
Seat Post Diameter 22.2mm

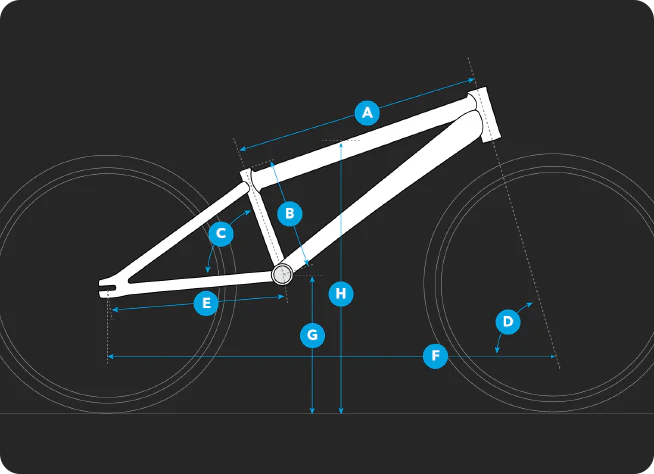

Geometry diagram
