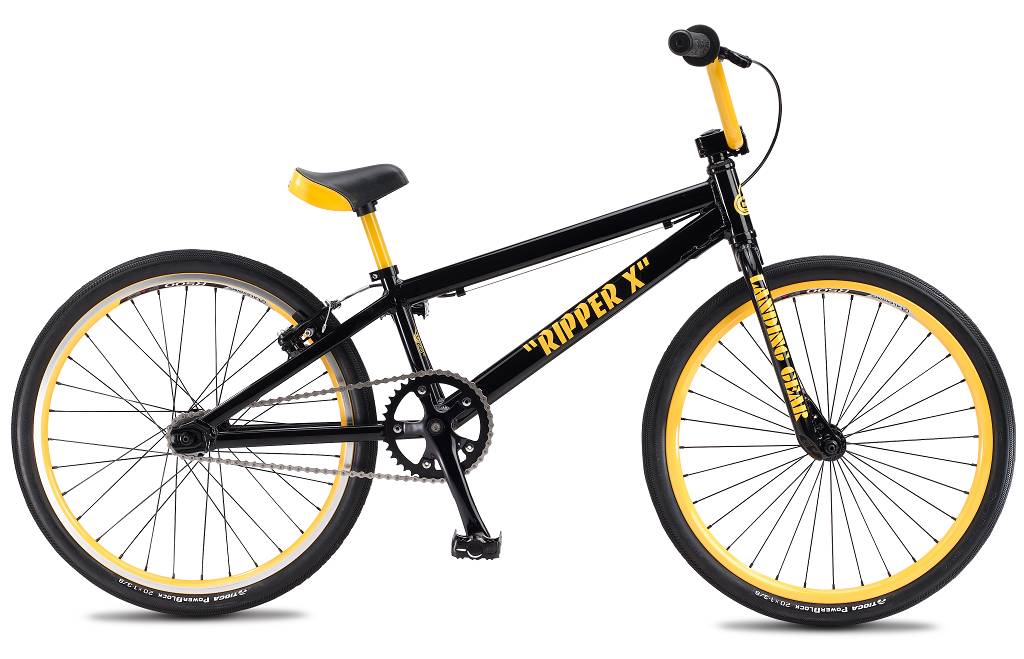

Ripper X (2011)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Rectangular Seat & Chainstays, 3D Forged Dropouts |
| Fork | Alloy Landing Gear, Alloy Steerer Tube |
| Crankset | 3-pc Alloy, 165mm, Euro Sealed Bearing Alloy Cups, 38T Alloy |
| Pedals | Wellgo Alloy Caged, Cr-Mo Axle |
| Chain | KMC Z30 |
| Wheelset | Sealed Bearing Hollow Axle Alloy Hubs w/Alex R500 Double Wall, 32H Rims, 15T Casette |
| Tires | Tioga Power Block 1 3/8" F&R |
| Brakeset | Tektro 926AL Mini V-Brake, Slick Cable |
| Brake Levers | Tektro 317A, 2 Finger Alloy |
| Headset | Tange Sealed 1" Integrated Headset |
| Handlebar | Alloy SE Wing Bar, 24.5x6" |
| Stem | SE Front Load Alloy, 2-pc Cap |
| Grips | SE Racing Wing Grip |
| Seat | SE Racing Mini w/ integrated Alloy Post |
| Seatpost | Integrated Aluminum 22.2 |
| Accessories | Plastic SE End Caps, Race Plate, Touch-up Paint |
| Headlight | 7.50kg / 16.50lb |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 19.5" |
| Seat Tube, Center To Top | 9.1" | |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 73° |
| E | Chainstay Length | 13.8" |
| Wheelbase | 35.0" | |
| G | Bottom Bracket Height | 11" |
| Seat Post Diameter | 22.2mm |
