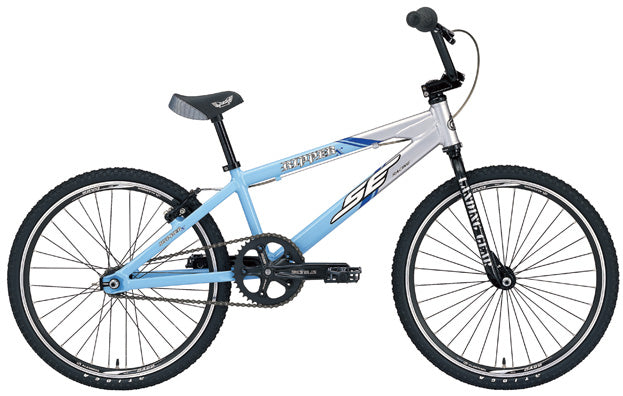

Ripper X (2007)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing w/ Integrated Chain Tensioners |
| Fork | CR-MO, 1-1/8" Landing Gear Expert |
| Crankset | Truvativ Racing Jr, 3-pc Alloy, 170mm; Truvativ, 41T Aluminum Sprocket; Euro Sealed Cartridge Square Taper |
| Pedals | Wellgo Alloy Caged, CR-MO Axle |
| Cassette | 16T Freewheel |
| Chain | KMC Z51 |
| Wheelset | Alex DA-22, 32H Double Wall Aluminum w/CNC sidewall; SE Racing Alloy, Hollow Axle, Sealed Bearing, 32H Front Hub; SE Racing Alloy, Flip-Flop, Sealed Bearing, Hollow Axle, 32H Rear Hub; Black Stainless 14 Ga. Spokes |
| Tires | Tioga Comp III 1-3/8" |
| Brakeset | Tektro 926AL Mini V-Brake, Slick Cable (Rear only) |
| Brake Levers | Tektro 317A, 2 Finger Alloy |
| Headset | FSA 1-1/8" Threadless |
| Handlebar | CR-MO, SE Wing Bar, 24.5" x 6" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | Expert Size Kraton Rubber |
| Seat | SE Racing Mini w/ integrated Alloy Post |
| Seatpost | Integrated Aluminum 22.2 |
| Seat Clamp | SE Racing Alloy |
| Accessories | Built-in Chain Tensioners |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 19.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 73° |
| E | Chainstay Length | 14" |
| G | Bottom Bracket Height | 11" |
| Seat Tube Length | 10" | |
| Wheel Size | 20" |
