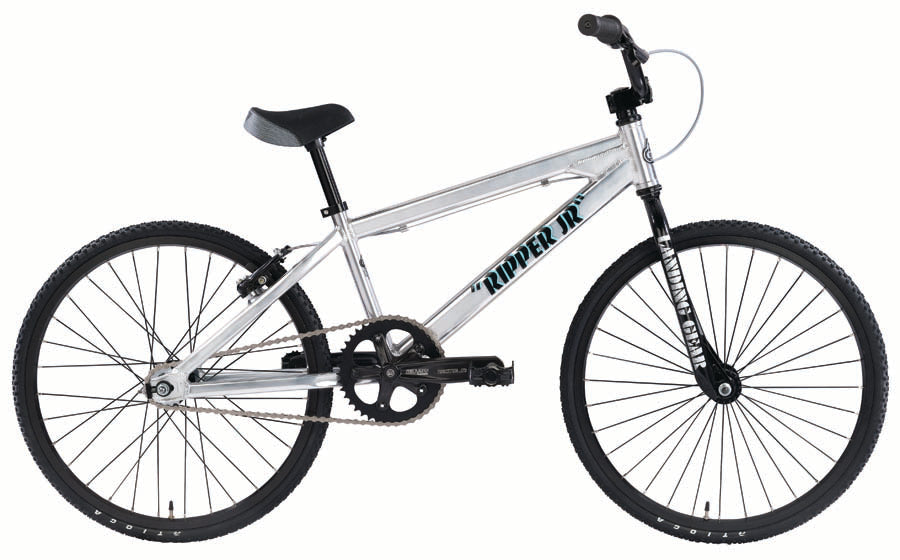

Ripper Jr (2008)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing , Euro BB, 1" Headtube |
| Fork | 100% 1" Landing Gear Mini |
| Crankset | Truvativ 3-pc Alloy, 155mm, Euro Sealed bearing, 41T Alloy |
| Pedals | Wellgo Alloy Caged, CR-MO Axle |
| Chain | KMC Z30, silver |
| Wheelset | Alex VP-15F, 28 Hole Front, 32 Hole Rear w/ Black Stainless 14 Ga. Spokes; SE Racing Alloy, Hollow Axle, Sealed Bearing Front Hub; SE Racing Cassette, Sealed Bearing, Alloy, Cr-Mo Hollow Axle, w/ 16T Cassette Rear Hub |
| Tires | Tioga Comp III 1-3/8" |
| Brakeset | Tektro 926AL Mini V-Brake, Slick Cable |
| Brake Levers | Tektro 317A, 2 Finger Alloy |
| Headset | FSA 1" Threadless Aheadset |
| Handlebar | Aluminum SE Mini Wing Bar, 22" X 4.5" |
| Stem | SE Racing Mini, Front Load, 1" Alloy |
| Grips | Jr Size Kraton Rubber |
| Seat | SE Racing Mini w/ integrated Alloy Post |
| Seatpost | Integrated Aluminum 22.2 |
| Seat Clamp | SE Racing Alloy |
| Accessories | Race Pads, Race Plate |
| Weight | 17 lbs. |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 18.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 73° |
| E | Chainstay Length | 14" |
| Seat Tube Length | 10.5" | |
| Wheel Size | 20" |
