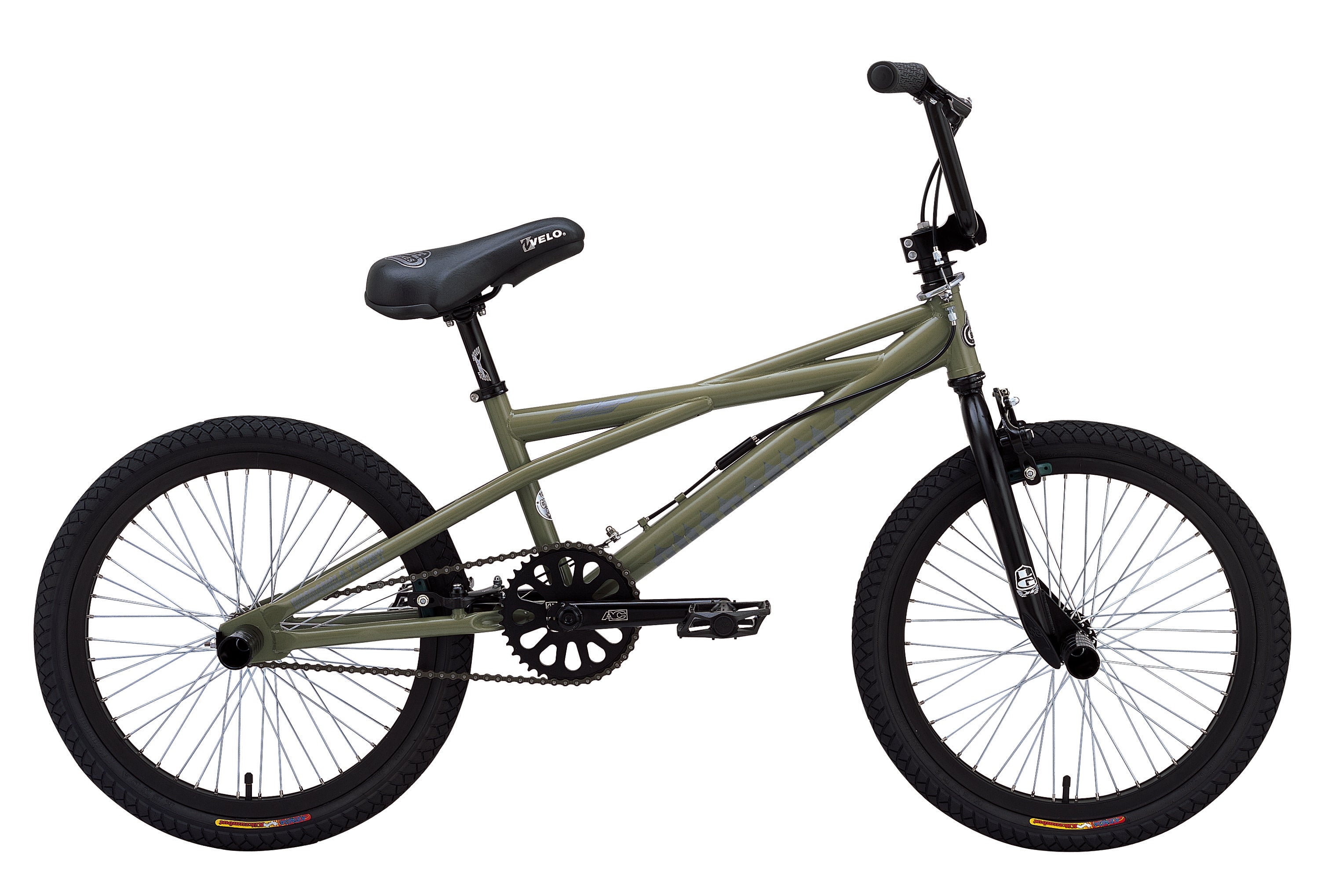

Quadangle X-Pert (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | CR-MO Main Frame, 6mm dropouts, Gyro Mounts |
| Fork | CR-MO, 1-1/8" Landing Gear, 6mm dropouts |
| Crankset | AC ProSpeed 001, 3-pc Tubular CR-MO, 175mm; SE 39T, Alloy Sprocket; AC, Euro, Sealed Cartridge Bearing, Cr-Mo 10-Spline spindle |
| Pedals | Wellgo Alloy, CR-MO Axle |
| Cassette | AC 14T |
| Chain | KMC Z410 |
| Wheelset | Alex G-22, Quad Box, 36H Front, 48H Rear; SE 36H, alloy, Loose, 14mm Axle Front Hub; SE 48H, alloy, Loose, 14mm Axle Rear Hub; 14 Ga. Spokes |
| Tires | Kenda Kickzumbut 1.95, 95 PSI, Front & Rear |
| Brakeset | Tektro FX 330 U-Brake, Linear Pull, Soft Compound Shoes, Front & Rear |
| Brake Levers | Tektro 273A |
| Headset | CH 1-1/8" Threadless |
| Handlebar | CR-MO, SE 25.5" X 7" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE w/Custom Cover, 8mm Rails |
| Seatpost | SE Straight Post 26.0 |
| Seat Clamp | SE Alloy |
| Accessories | SE Steel pegs, Black 2 Pairs, Driving Force detangler, Chain Tensioners |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.25" |
| G | Bottom Bracket Height | 11.4" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
