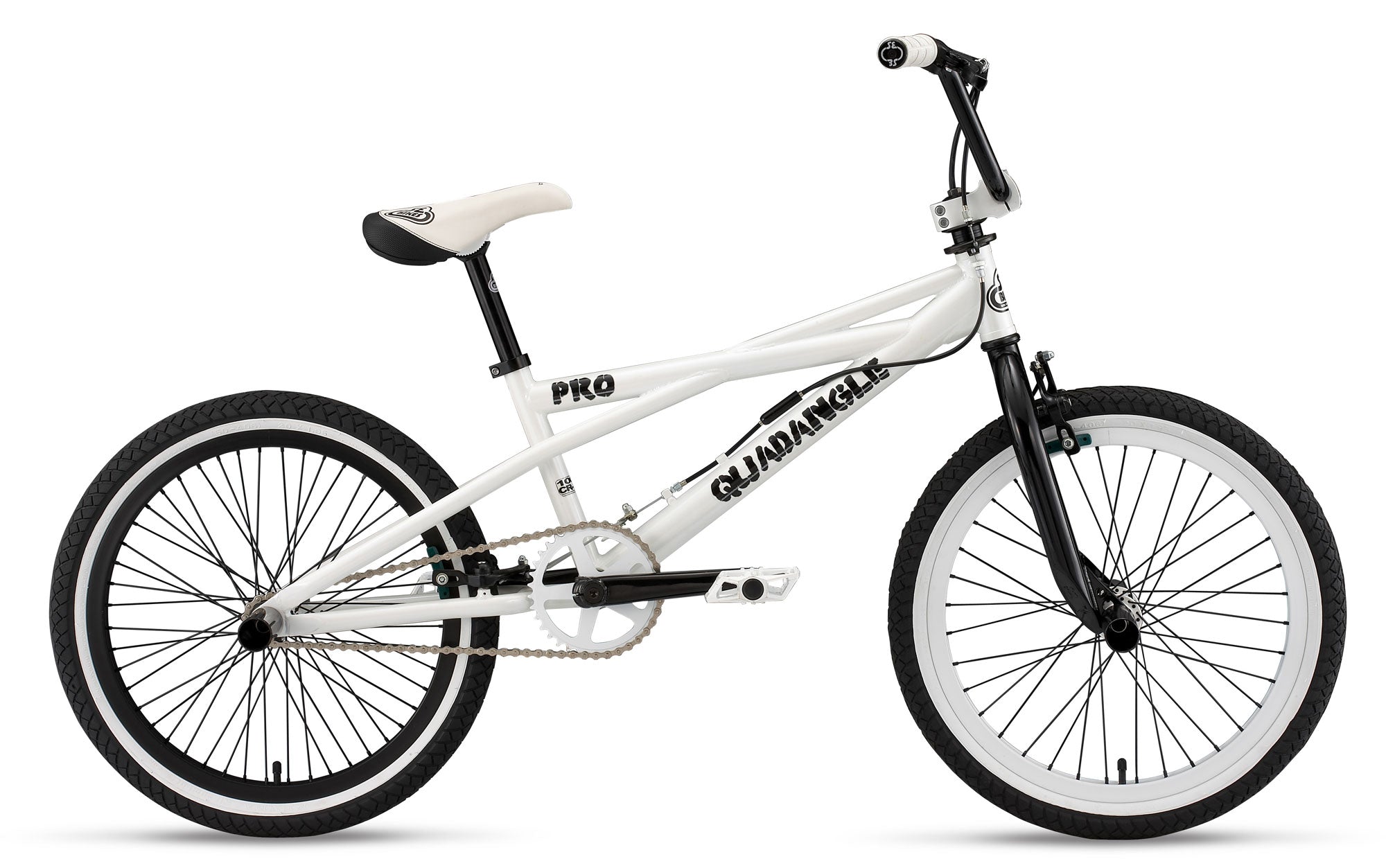

Quadangle Pro (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% CR-MO, 6mm dropouts, Mid BB, Gyro Mounts |
| Fork | 100% CR-MO Landing Gear, 14mm Dropouts, Front Brake Mounts |
| Crankset | SE 3-pc Cr-Mo, 175mm, Mid Sealed Bearing, 36T Alloy |
| Pedals | Wellgo Alloy Platform, CR-MO Axle |
| Chain | KMC Z410 Silver |
| Wheelset | Alex G-22 Aluminum, 36H front, 48H Rear, 14g Stainless Spokes; SE 36H Alloy, 14mm Axle Front Hub; SE 48H Alloy, 14mm Axle, 13T Odyssey Freewheel Rear Hub |
| Tires | Kenda Kikzumbut 1.95" Front & Rear |
| Brakeset | Tektro 907A U-Brake, Linear Pull, Soft Compound Shoes, Front & Rear |
| Brake Levers | Tektro 275A 2 Finger Alloy, Front & Rear |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | CR-MO Wild Bar, SE 25.5" X 7" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | SE Bubble Jump Grip |
| Seat | SE Pivotal w/Custom Cover |
| Seatpost | Pivotal Micro Adjust Aluminum 25.4 |
| Accessories | SST Oryg Rotor, 4 Pegs, SE Alloy End Caps |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.25" |
| G | Bottom Bracket Height | 11.4" |
| Wheel Size | 20" |
