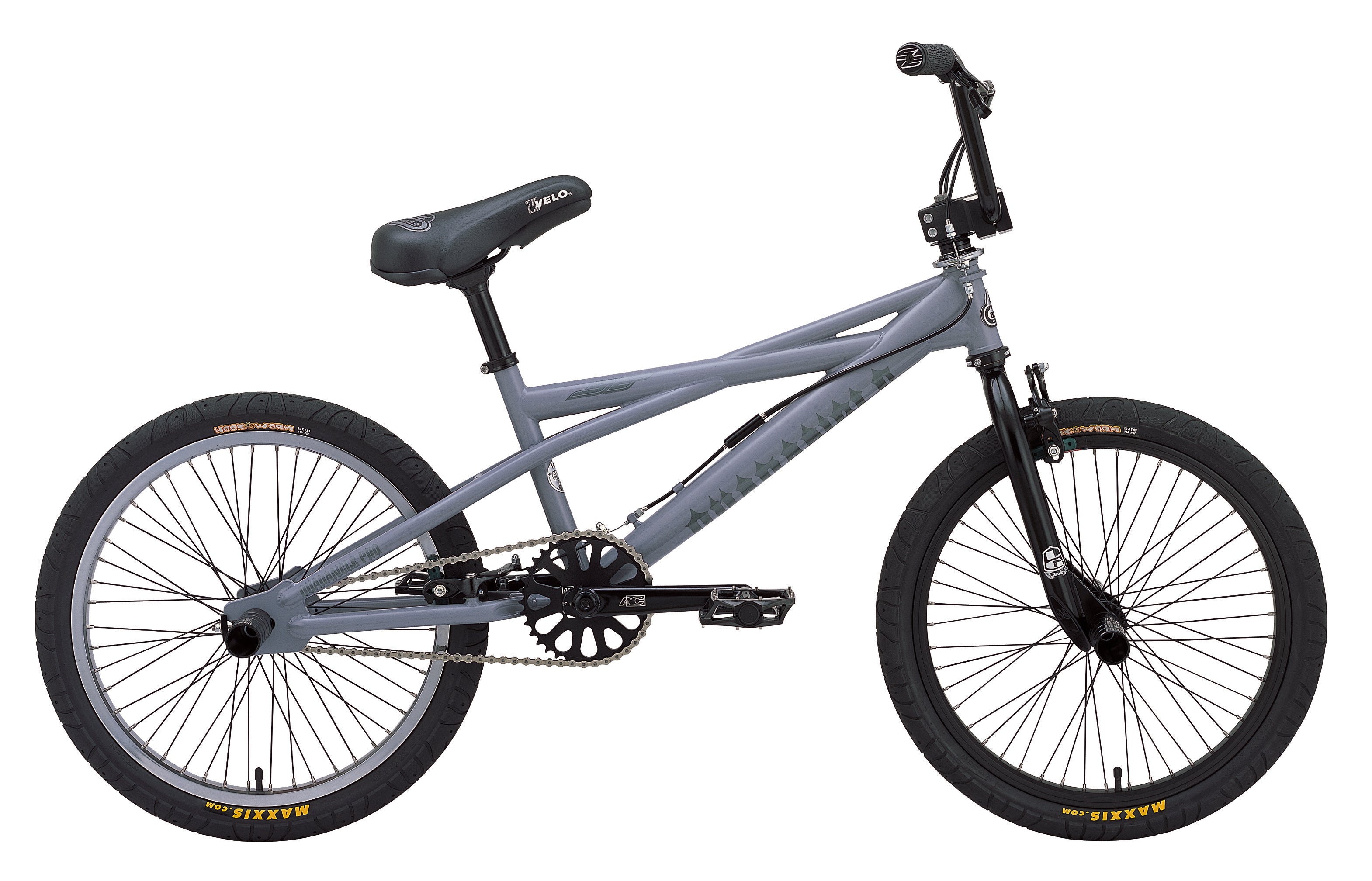

Quadangle Pro (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% CR-MO, 6mm dropouts, Gyro Mounts |
| Fork | CR-MO, 1-1/8" Landing Gear, 6mm dropouts |
| Crankset | AC ProSpeed 001, 3-pc Tubular CR-MO, 175mm; AC Grinder II, 36T, Alloy Sprocket; AC, Euro, Sealed Cartridge Bearing, Cr-Mo 10-Spline spindle |
| Pedals | Wellgo Alloy, CR-MO Axle, removable pins |
| Cassette | Odyssey, 13T |
| Chain | KMC Z410 |
| Wheelset | Front- Alex DM24 Double Wall, Black 36h / Rear- Alex Supra B Double Wall, Chrome 36h; SE 36H, alloy, 14mm Axle Front Hub; SE 36H, alloy, 14mm Axle Rear Hub; Black Stainless 14 Ga. Spokes |
| Tires | Maxxis Hookworm 1.95, 110 PSI, Front & Rear |
| Brakeset | Tektro FX 330 U-Brake, Linear Pull, Soft Compound Shoes, Front & Rear |
| Brake Levers | Tektro 273A |
| Headset | FSA Pig 1-1/8" Threadless w//Forged CR-MO Lower Cup |
| Handlebar | CR-MO, SE 25.5" X 7" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE w/Custom Cover, 8mm Rails |
| Seatpost | SE Micro Adjust Alloy 26.0 |
| Seat Clamp | SE Alloy |
| Accessories | SE Steel pegs, Black 2 Pairs, SST Oryg, Chain Tensioners, Aluminum Bar Ends |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.5" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.25" |
| G | Bottom Bracket Height | 11.4" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
