Quadangle Looptail 29"
Quadangle Looptail 29"
Quadangle Looptail 29"

Quadangle Looptail 29"

$1,199.99
Description

The 29" Quadangle Looptail is a true classic and one of the most sought after SE bikes ever made! The frame is built with 100% Cr-Mo steel tubing and features a unique “quad angle” frame shape and a classic double downtube—a legendary design created by SE and instantly recognizable. The sealed bearing SE Mohawk hubs paired with double-wall rims provide a smooth ride, and the 29" x 2.10" Speedster tires will roll fast when you’re putting in the miles. The new SE Captive seat (with custom bottle opener brace) provides a secure and comfortable feel for wheelies or just cruising along. With authentic ODI Longneck grips and an SE Racing padset, this bike screams classic radness.
ColorArctic White
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Full Cr-Mo Quadangle frame with a double downtube, Looptail rear end, internal cable routing, and retro dropouts
  • Individually numbered on the inside of the rear dropout
  • Full Cr-Mo Landing Gear forks
  • Cr-Mo Power Wing cruiser bars
  • Double-wall rims with sealed bearing high flange SE Mohawk flip flop hubs
  • 15T LOUD freewheel with 9-Pawls and 108 clicks

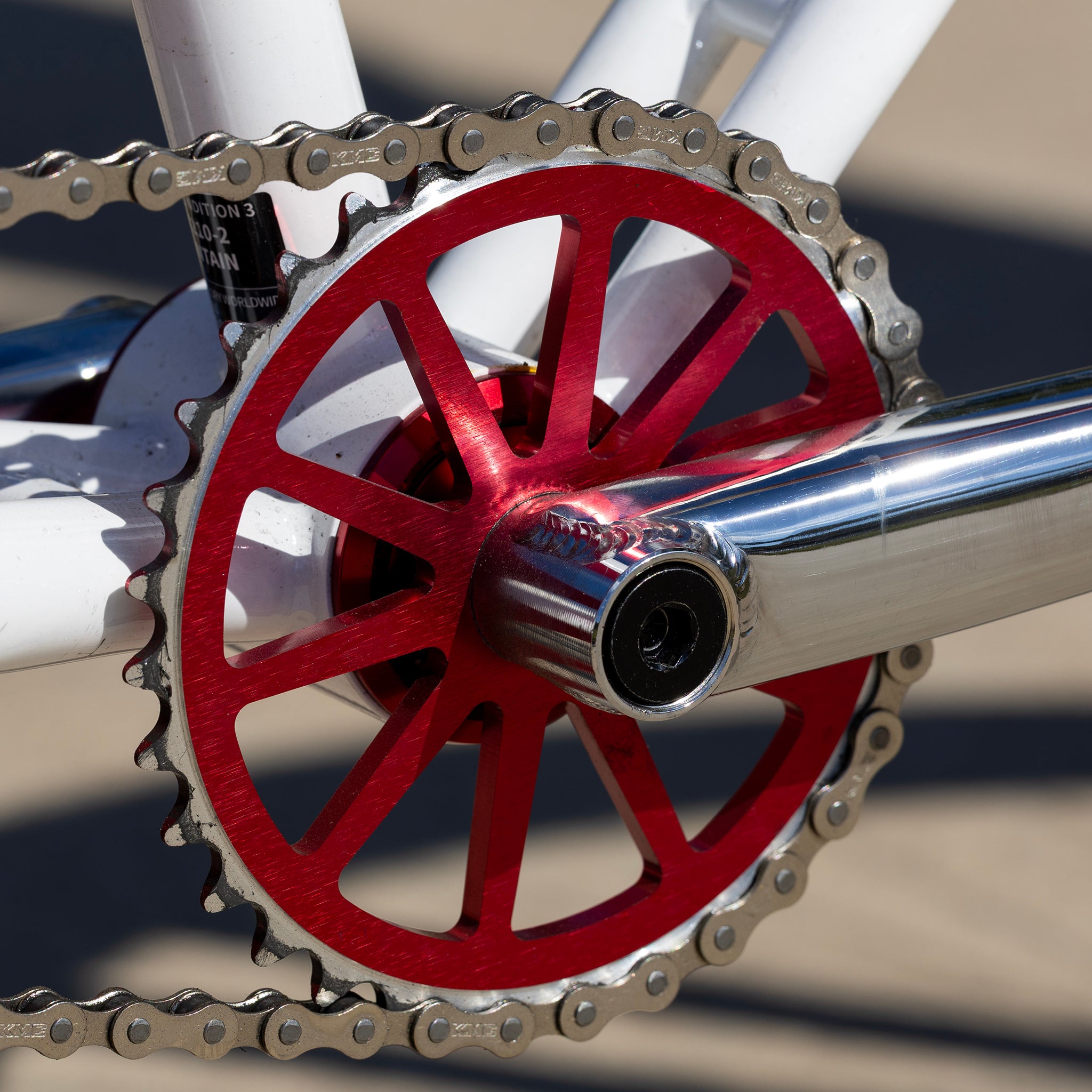

  • SE 3-piece TSC non-pinch bolt cranks with alloy SE Quad sprocket
  • Authentic ODI Longneck grips, made in the USA
  • Vee Speedster x SE Racing 29” x 2.10” tires
  • NEW SE Captive Seat with concave design for ultimate hold and comfort
  • SE Quadangle padset
SPECIFICATIONS
Frame 100% Cr-Mo Tubing, Classic Double Downtube Design, Internal Cable Routing, Looptail Rear End, heat Treated Retro Dropouts, Limited Edition & Individually Numbered on the Inside of the Rear Dropout
Fork Landing Gear, Full Cr-Mo
Crankset SE TSC Cr-Mo 3-pc Lightweight Cranks, Non-pinch bolt, Full Wrap Pedal Bosses, 170mm, Sealed American Bottom Bracket, 141mm Spindle Length, 19mm Spindle Diameter, 33T Alloy SE Quad Sprocket
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Chain KMC S1
Wheelset SE Mohawk Sealed Bearing Flip Flop Hubs, 36H High-Flange Alloy, Double-wall Rims w/ Eyelets & CNC Sidewalls, 15T 9-Pawl, 108 Clicks LOUD Freewheel, Stainless Spokes
Tires Vee Tire Co x SE Racing Speedster, 29" x 2.10" Front & Rear
Brakeset Tektro 855AL V-Brake, Linear Cable
Headset Tange 1-1/8" Threadless
Handlebar Cr-Mo Power Wing Cruiser Bar, 28" x 7", 10° Backsweep, 1° Upsweep
Stem Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach
Grips ODI Long Neck Grips, Made in USA, w/ ODI End Plugs
Seat New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace
Seatpost Micro-Adjust Alloy, 27.2mm
Accessories SE Racing Padset, Alloy Valve Caps
GEOMETRY
A Top Tube, Actual 24"
B Seat Tube, Center To Top 16.9"
C Seat Tube Angle 73°
D Head Tube Angle 71°
E Chainstay Length 17.9"
F Wheelbase 44"
G Bottom Bracket Height 11.5"
H Standover 29.4"
Stem 55mm
Handlebar Width 28"
Crank 170mm
Wheel Size 29"
Seat Post Diameter 27.2mm

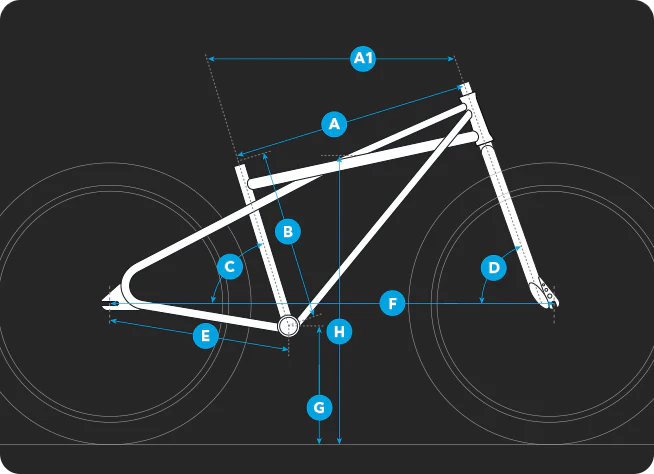

Geometry diagram
