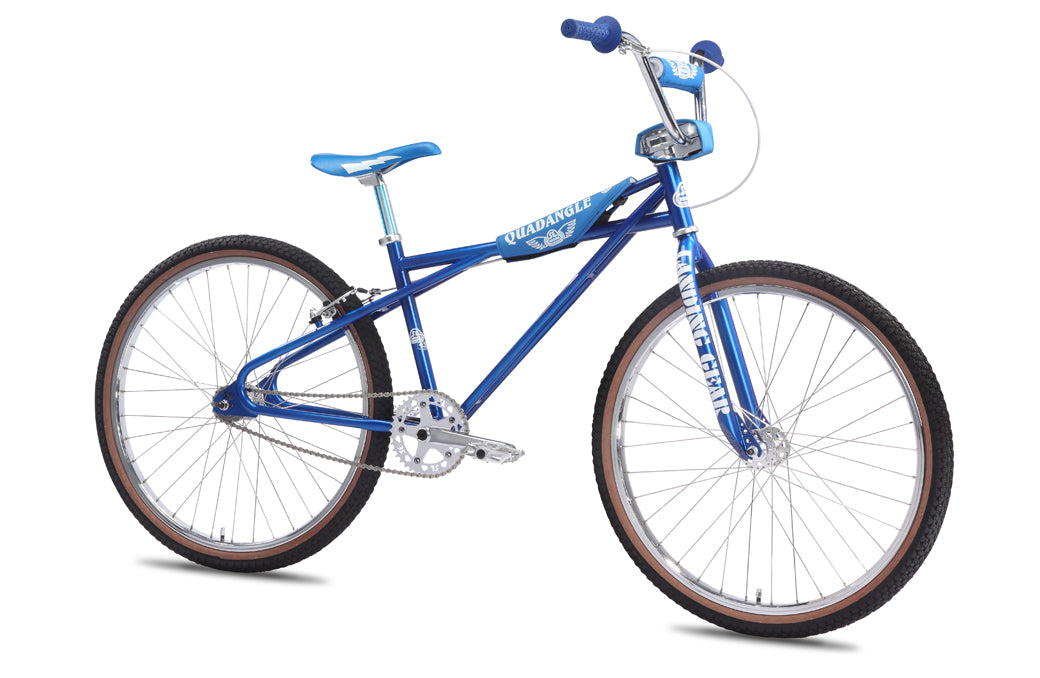

Quadangle Looptail 26" (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo Tubing, Classic Double Downtube, Looptail Rear End, Retro Dropouts, Limited Edition & Individually Numbered |
| Fork | 100% Cr-Mo Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 180mm, 48 Spline Sealed American BB, 39T Alloy SE Bubble Sprocket |
| Pedals | X-Pedo Low Profile Platform w/ Removable Pins |
| Chain | KMC Z33 |
| Wheelset | Sealed Bearing 36H High Flange Alloy Bubble Mohawk Hubs w/ Alex DM-24 Double Wall Rims, 17T Freewheel |
| Tires | Kenda K-Rad 26 x 1.95" F & R |
| Brakeset | Tektro M530 V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | Cr-Mo Power Wing Cruiser Bar, 28 x 7" |
| Stem | Retro Alloy Top Load w/ Engraved SE Logo & Lightweight Cut-Outs |
| Grips | A'ME Tri |
| Seat | SE Lightning Blitz Seat w/ Bottle Opener |
| Seatpost | Retro Fluted Micro-Adjust Aluminum, 25.4 |
| Accessories | Retro Pads, Alloy Valve Caps, Touch Up Paint |
| Wheel Size | 26" |
| Weight | 28.70lbs / 13.04kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22" |
| Seat Tube, Center To Top | 15" | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 17" |
| Wheelbase | 41.6" | |
| Seat Post Diameter | 27.2mm |
