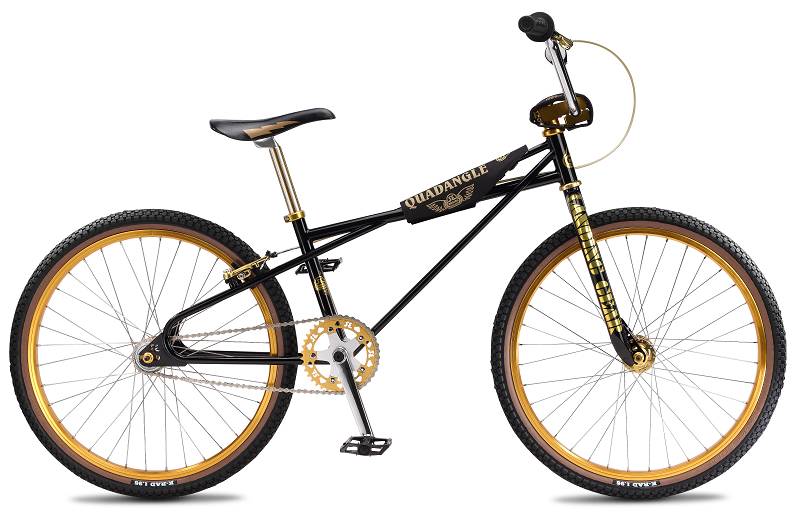

Quadangle Looptail 24" (2011)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo Tubing, Classic Double Downtube, Looptail Rear End, Retro Dropouts, Limited Edition & Individually Numbered |
| Fork | 100% Cr-Mo Landing Gear, w/ Internally Threaded Steerer Tube |
| Crankset | SE 3-pc Cr-Mo, 180mm, 48 Spline Sealed American BB, 39T |
| Pedals | X-Pedo Low Profile Platform w/ Removable Pins |
| Chain | KMC Z30 |
| Wheelset | Sealed Bearing 36H High Flange Alloy Hubs w/Alex DM-24 Double Wall Rims, 17T Freewheel |
| Tires | Kenda K-Rad 1.95 F&R |
| Brakeset | Tektro 930AL V-Brake |
| Brake Levers | Tektro 316A, 2 Finger Alloy |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | Cr-Mo Power Wing Cruiser Bar, 28x7" |
| Stem | Retro Alloy Top Load w/ Engraved SE Logo |
| Grips | S-1E Retro Grip |
| Seat | SE Lightning Blitz Seat w/ Bottle Opener |
| Seatpost | Retro Fluted Micro-Adjust Aluminum, 25.4 |
| Accessories | Retro Pads, Alloy Axle Nuts, Alloy Valve Caps, Touch Up Paint |
| Wheel Size | 24" |
| Weight | 27.20lbs / 12.30kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22" |
| Seat Tube, Center To Top | 12" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 15.4" |
| Wheelbase | 39.8" | |
| G | Bottom Bracket Height | 12" |
| Seat Post Diameter | 25.4mm |
