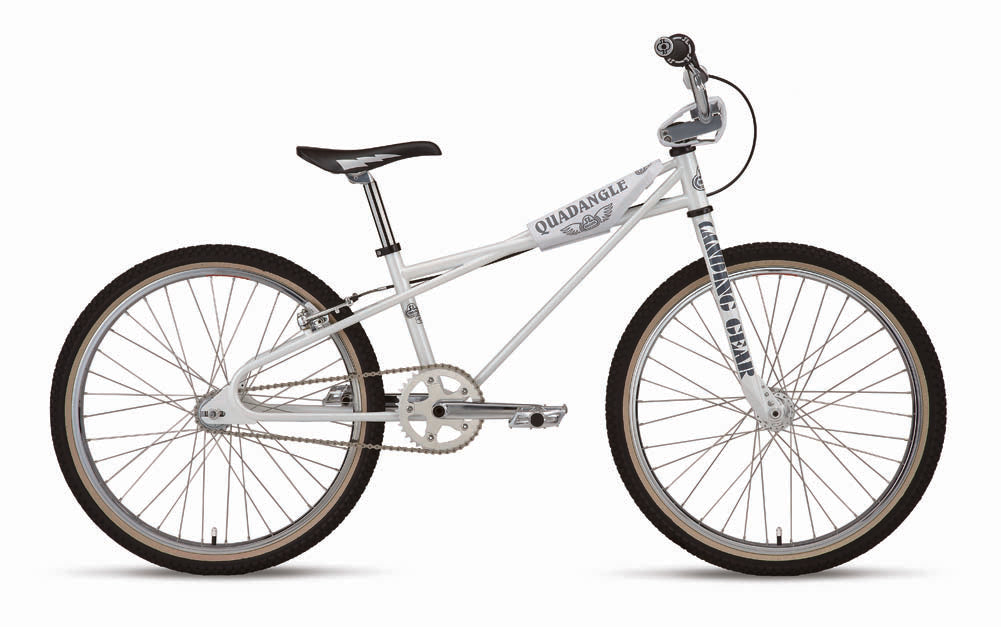

Quadangle Looptail 24" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo Tubing, Classic Double Downtube, Looptail Rear End, Retro Dropouts |
| Fork | 100% CR-MO Landing Gear |
| Crankset | SE 3-pc CR-MO, 180mm, 48 Spline, American BB, 39T Alloy |
| Pedals | Classic Wellgo Alloy Platform, Cr-Mo Axle, Removable Pins |
| Chain | KMC Z30, Silver |
| Wheelset | Alex DM-24, 36H Double Wall Aluminum, Chrome, Stainless Spokes; SE Racing High Flange, Sealed Bearing Alloy, Cr-Mo Axle Front Hub; SE Racing High Flange Alloy, Sealed Bearing Alloy, Cr-Mo Axle w/ 17T Freewheel Rear Hub |
| Tires | 24" Kenda K-Rad w/ Skinwalls 1.95" F & R |
| Brakeset | T ektro 930AL V-Brake |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | CR-Mo Power Wing Cruiser Bar, 28" X 7" |
| Stem | Retro Top Load 1-1/8" Alloy |
| Grips | SE Racing Wing Grip |
| Seat | SE Lightning Blitz Seat w/ Bottle Opener |
| Seatpost | Retro Fluted Aluminum 25.4 |
| Accessories | Retro Pads, Alloy Axle Nuts, Grip Donuts, Alloy Valve Caps, SE Alloy End Caps |
| Wheel Size | 24" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 16" |
| G | Bottom Bracket Height | 12" |
| Wheel Size | 24" |
