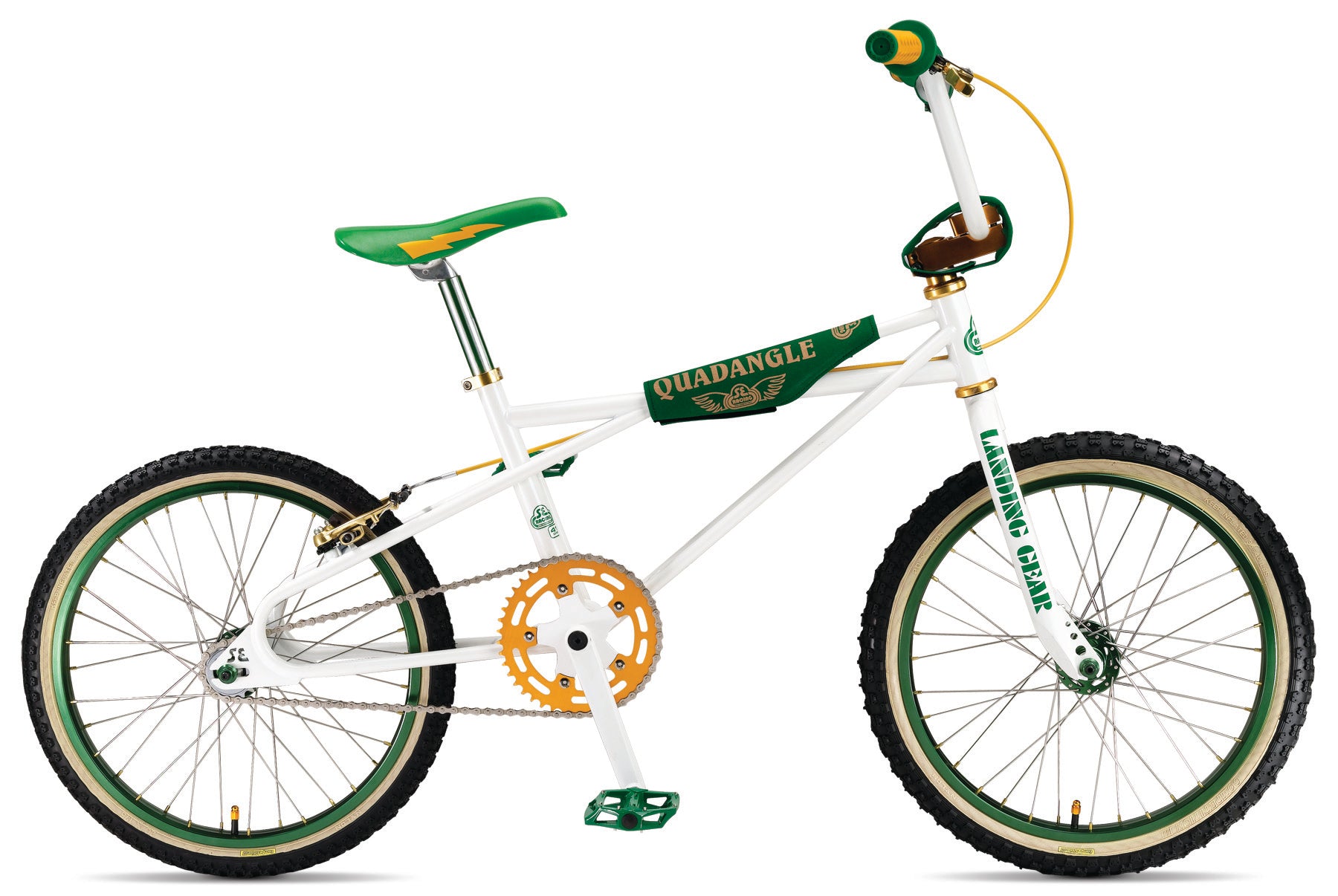

Quadangle Looptail (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo Tubing, Classic Double Downtube, Looptail Rear End, Retro Dropouts, Limited Edition, Individually Numbered |
| Fork | All New 100% CR-MO Landing Gear, w/ Internally Threaded Steerer Tube |
| Crankset | SE 3-pc Cr-Mo, 180mm, 48 Spline Sealed American, 44T Alloy |
| Pedals | X-Pedo Low Profile Platform w/ Removable Pins |
| Chain | KMC Z30, silver |
| Wheelset | Alex Supra Dome, 36H Double Wall Aluminum , 14Ga. Stainless Spokes; SE Racing High Flange Alloy, Sealed Bearing, Cr-Mo Axle Front Hub; SE Racing High Flange, Sealed Bearing Alloy, Cr-Mo Axle w/ 16T Freewheel Rear Hub |
| Tires | Tioga Comp III Re-Issue 2.125 F, 1.75 R |
| Brakeset | Tektro 930AL V-Brake, Slick Cable |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | CR-MO Powerwing Bar, 28.5" X 8.25" |
| Stem | Retro Top Load w/ Engraved SE Logo, 1-1/8" Alloy |
| Grips | S-1E Retro Grip |
| Seat | SE Lightning Blitz Seat w/ Bottle Opener |
| Seatpost | Retro Fluted Micro-Adjust, Aluminum 25.4mm |
| Accessories | Retro Pads, Retro Plate, Alloy Axle Nuts, Alloy Valve Caps, Touch Up Paint |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.25" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 15.35" |
| G | Bottom Bracket Height | 11.8" |
