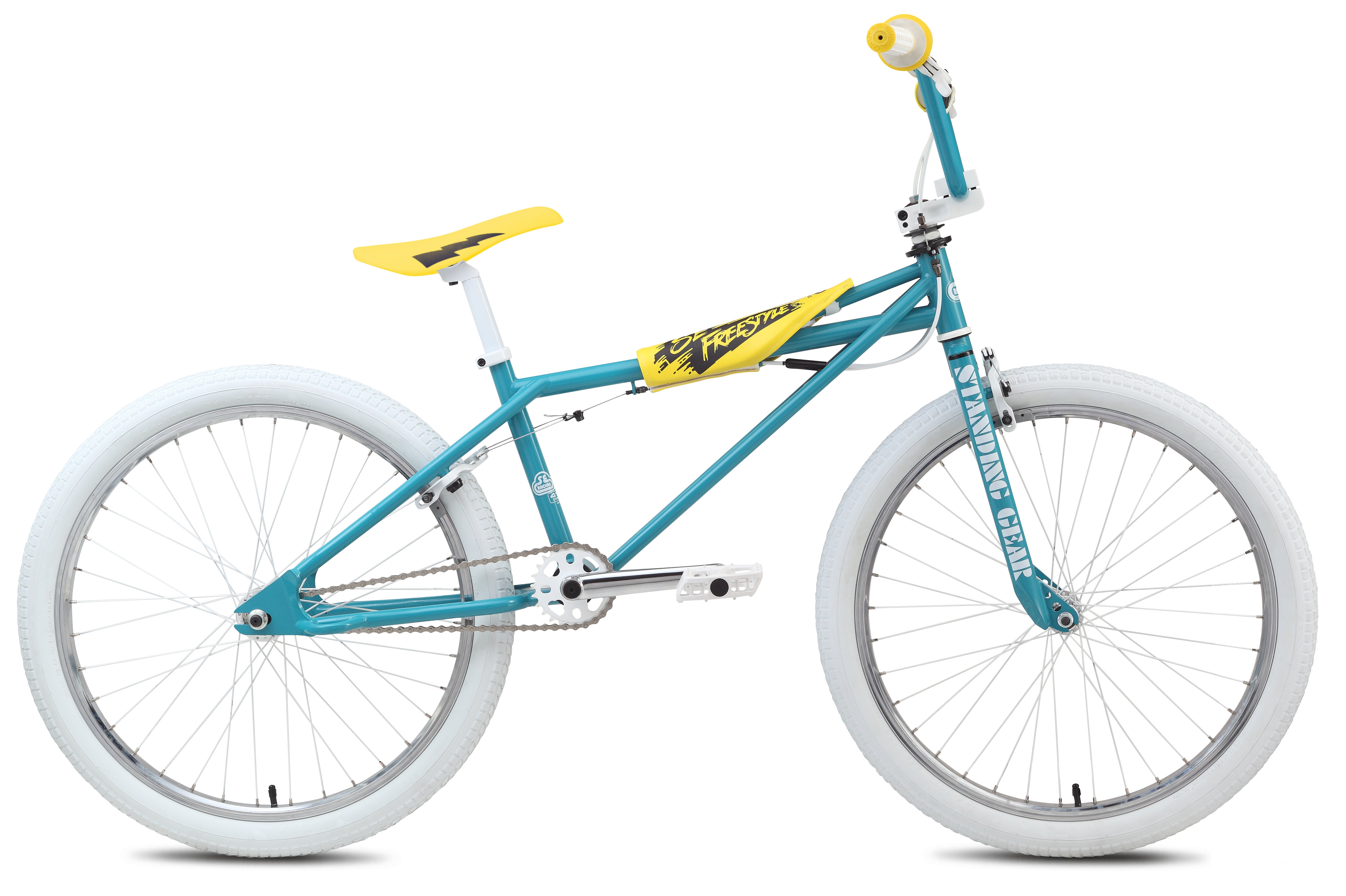

Quadangle Freestyle 24" (2015)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | New 2015 Frame Design, 100% Cr-Mo Tubing, Classic Double Downtube, Standing Platforms, Limited Edition & Individually Numbered |
| Fork | Full Cr-Mo Standing Gear |
| Crankset | SE 3-pc Cr-Mo, Closed-End Invisibolt, 180mm, Sealed Bearing American BB, 25T Alloy SE Bubble Sprocket |
| Pedals | SE Nylon Fiber |
| Chain | KMC Z410A |
| Wheelset | SE Alloy 36H 3/8" F & 14mm Semi-Sealed R Hubs w/ Double-wall Rims, 10T Driver, Stainless Spokes, Rear Alloy Washers |
| Tires | Kenda K-927 24" x 2.125" F & R |
| Brakeset | Promax SEU-961, U-Brake, Linear Pull, For Wide Tires, F & R |
| Brake Levers | Promax SEL -427, 2-Finger Hinged Alloy, F & R |
| Headset | Tange ER 1-1/8" Threadless |
| Handlebar | Cr-Mo Power Wing Cruiser Bar, 28" x 7" |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts |
| Grips | Oakley B-1B, Custom Colorway, w/ Donuts, Made in USA |
| Seat | SE Lightning Blitz Seat w/ Bottle Opener |
| Seatpost | Retro Fluted Micro-Adjust Alloy, 25.4mm |
| Accessories | SST Oryg Rotor, Vintage Vinyl Retro Pads, Alloy Valve Caps |
| Wheel Size | 24" |
| Weight | 31.60lbs / 14.33kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.75" |
| Seat Tube, Center To Top | 12" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74.5° |
| E | Chainstay Length | 15.4" |
| Wheelbase | 39.2" | |
| G | Bottom Bracket Height | 13.8" |
| Seat Post Diameter | 25.4mm | |
| Standover | 25.2" | |
| Wheel Size | 24" |
