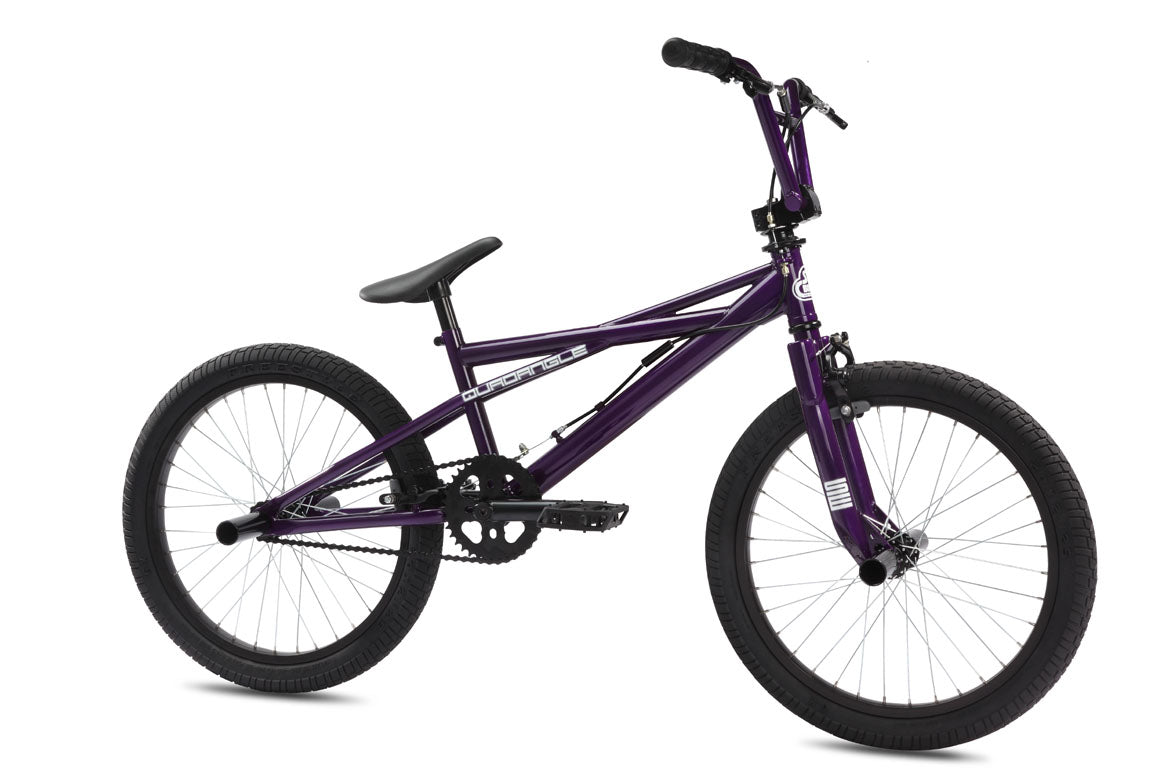

Quadangle (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Quadangle Frame Design, American BB, 6mm Dropouts, Gyro Mounts |
| Fork | Standing Gear, Front Brake Mounts, 3/8 Dropouts |
| Crankset | 3-pc Cr-Mo 175mm, American BB, 36T Bubble Sprocket |
| Pedals | FPD Plastic Composite |
| Chain | KMC Z410 |
| Wheelset | SE Alloy 36H Hubs with Alloy Rims, 13T Freewheel |
| Tires | Kenda K-Rad 20 x 2.125" F & R |
| Brakeset | C-Star RX-935D U-Brake, Soft Compound Shoes |
| Brake Levers | Tektro 319 AC, F & R |
| Headset | Tange 1 1/8" Threadless |
| Handlebar | SE 4pc Bar, 26.75 x 7" |
| Stem | SE Front Load 1 1/8 Alloy |
| Grips | SE Bubble Jump Grip w/ Rubber SE End Plugs |
| Seat | Lightweight SE Seat/Post Combo |
| Seatpost | Integrated Alloy 25.4 |
| Accessories | Rush Rotor, 4 Pegs |
| Wheel Size | 20" |
| Weight | 28.60 lbs / 13kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 19.5" |
| Seat Tube, Center To Top | 10.2" | |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 13.7" |
| Wheelbase | 35.7" | |
| Seat Post Diameter | 25.4mm |
