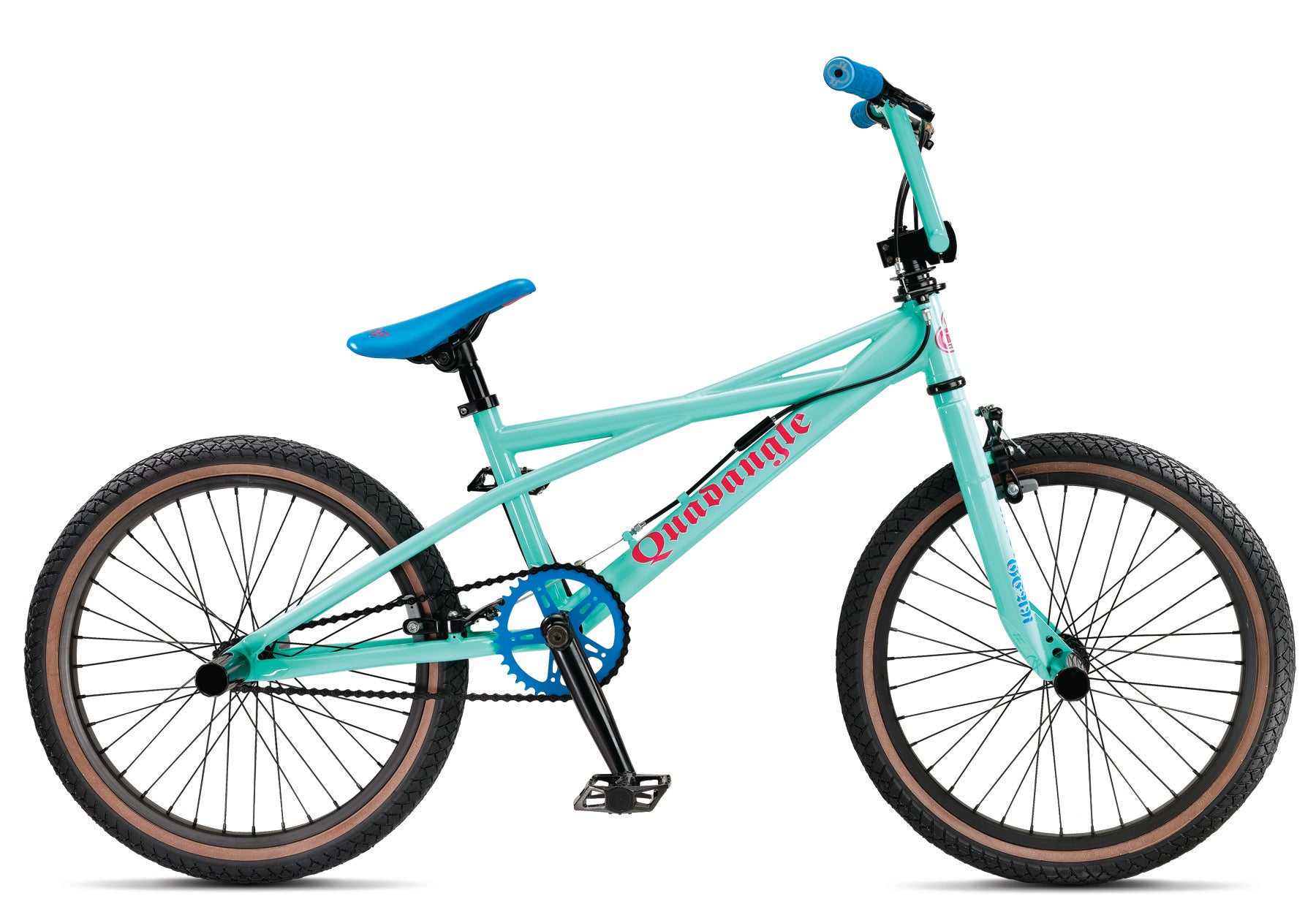

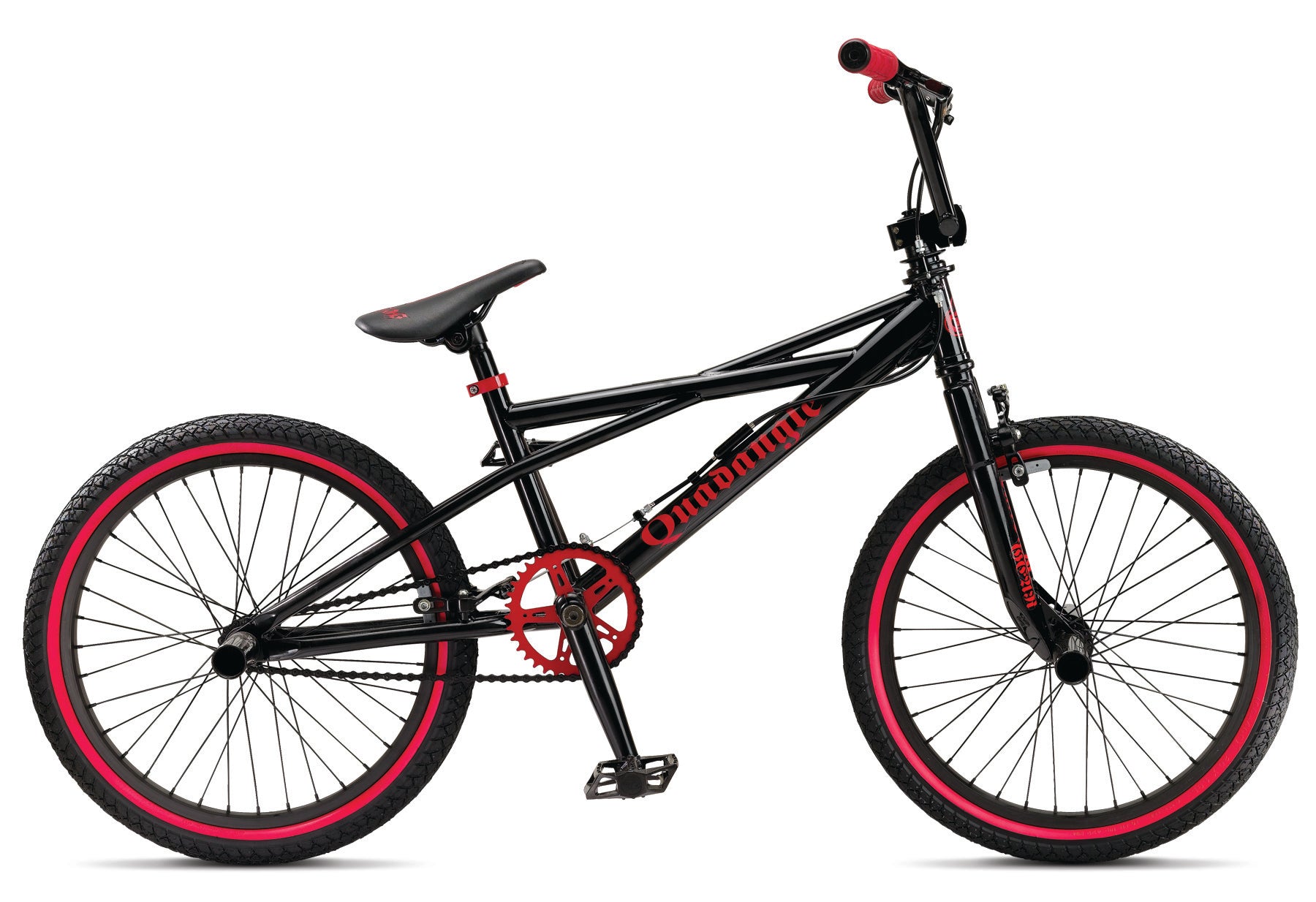

Quadangle (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Quadangle Frame Design, Mid BB, 6mm Dropouts, Gyro Mounts |
| Fork | Standing Gear, Front Brake Mounts, 3/8" Dropouts |
| Crankset | SE 3-pc Cr-Mo, 175mm, Mid BB, 36T |
| Pedals | FPD Alloy Platform, CR-MO Axle |
| Chain | KMC Z410 |
| Wheelset | Alex G-303 Aluminum 36H F&R, w/14Ga. Spokes; SE 36H, 3/8" Axle Front Hub; SE 36H, 14mm Axle w/ 13T Freewheel Rear Hub |
| Tires | Kenda Kikzumbut 1.95" F&R |
| Brakeset | Tektro FX340R & 340FS, Front & Rear |
| Brake Levers | Tektro 319 AC, Front & Rear |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 4pc Bar, 26.75" X 7" |
| Stem | SE Front Load 1-1/8" Alloy |
| Grips | SE Bubble Jump Grip |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | SE Straight Post 25.4mm |
| Accessories | Rush Rotor, 2 Pegs, SE Plastic Grip End Caps |
| Weight | 28.1 lbs (without pegs) |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 19.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 13.75" |
| G | Bottom Bracket Height | 11.4" |
| Wheel Size | 20" |
