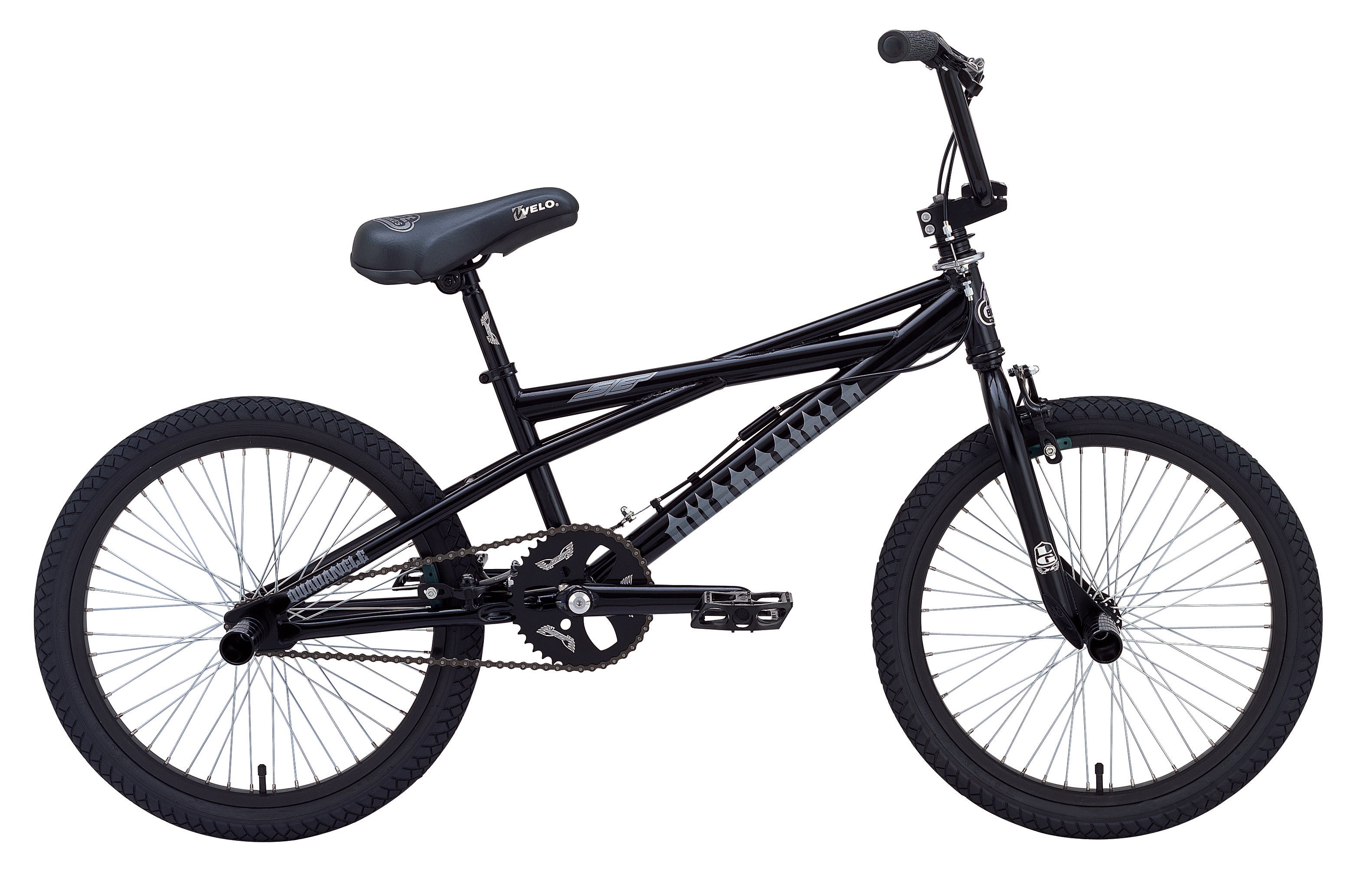

Quadangle (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | CR-MO seat tube, 6mm dropouts, Gyro Mounts |
| Fork | 1-1/8" Landing Gear, 6mm dropouts |
| Crankset | SE 3-pc Tubular CR-MO, 175mm; SE 39T Sprocket; Cr-Mo spindle, 8-Spline, Loose |
| Pedals | Wellgo Alloy, CR-MO Axle |
| Cassette | AC 14T |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, 36H Front, 48H Rear; SE 36H, Loose, 14mm Axle Front Hub; SE 48H, Loose, 14mm Axle; 14 Ga. Spokes |
| Tires | Kenda Krackpot 1.95, 95 PSI, Front & Rear |
| Brakeset | Tektro 907A U-Brake, Linear Pull, Soft Compound Shoes, Front & Rear |
| Brake Levers | Tektro 289A 2 Finger Alloy |
| Headset | CH 1-1/8" Threadless |
| Handlebar | SE 25.5" X 7" |
| Stem | SE Top Load 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE w/Custom Cover, Oversize Rails |
| Seatpost | SE Straight Post 26.0 |
| Seat Clamp | SE Alloy |
| Accessories | SE Steel Pegs, Black 2 Pairs, Driving Force detangler; |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.25" |
| G | Bottom Bracket Height | 11.4" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
