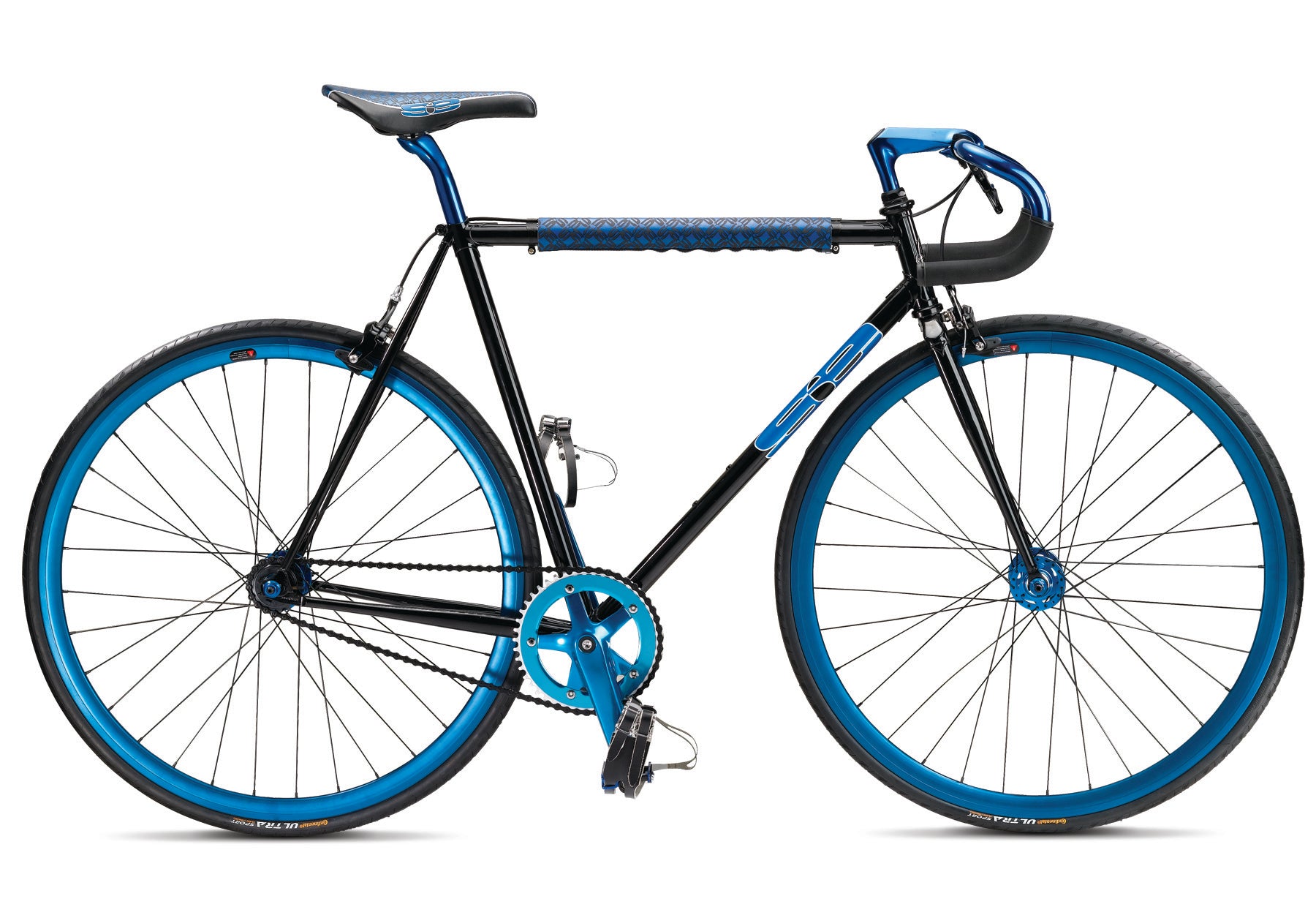

Premium Ale 700c (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% CR-MO, Classic Urban Single Speed Lugged Design, Double Butted Main Frame, Tapered Rear Stays, Built-in Seat Clamp, Water Bottle & Fender Mounts, Built-In Chain Tensioners |
| Fork | 100% Cr-Mo, Triple Butted Legs, w/ Lugged Crown & Internally Fluted Steerer Tube |
| Crankset | SE Alloy, Euro BB, 46T Alloy Chainring, BCD 144 |
| Pedals | Wellgo R025B Sealed, Machined Alloy Cage, Cr-Mo Axle, w/ Metal Toe Clip & Straps |
| Chain | KMC Z-410 Silver |
| Wheelset | Alex DA-13, Double Wall, 32 Hole, Stainless Spokes; SE High Flange Alloy, 32H, Sealed Bearing, Nutted, 3/8" Hollow Axle Front Hub; SE High Flange Alloy Flip Flo 32H, Sealed Bearing, Nutted, 3/8" Hollow Axle, 17T Freewheel & 17T Sugino Cog Rear Hub |
| Tires | Continental Ultra Sport 700x25c |
| Brakeset | Tektro R320 Dual Pivot Calipers, F & R |
| Brake Levers | Tektro RL -570, 2 Finger Alloy, F & R |
| Headset | Tange Sealed Alloy 1" Threaded |
| Handlebar | Pazzaz Alloy Double Butted Track Bar, 420mm Wide |
| Stem | 6061 Alloy Quill, 17 Degree Drop |
| Grips | Track Grip |
| Seat | SE Super Classic w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy 27.2mm |
| Accessories | Zipper T op Tube Pad, Alloy Axle Nuts, Removable SE Brake Cable Clips, Built-In Chain Tensioners |
| Weight | 21.0 lbs (56cm) |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 509, 521, 538, 553, 556, 575, 595 |
| Top Tube, Effective | 525, 535, 545, 555, 565, 575, 595 | |
| C | Seat Tube Angle | 73°, 72.5°, 72.5°, 73°, 73°, 73°, 73° |
| D | Head Tube Angle | 70°, 71°, 72°, 73°, 73°, 73°, 73° |
| E | Chainstay Length | 410, 410, 410, 410, 410, 410, 410 |
| G | Bottom Bracket Height | 270, 270, 270, 270, 270, 270, 270 |
| Wheel Base | 980, 977, 978, 985, 995, 1005, 1025 | |
| Fork Rake | 43, 43, 43, 43, 43, 43, 43 | |
| Headtube | 112, 112, 112, 112, 125, 145, 175 | |
| Standover | 742, 753, 770, 782, 798, 817, 845 |
