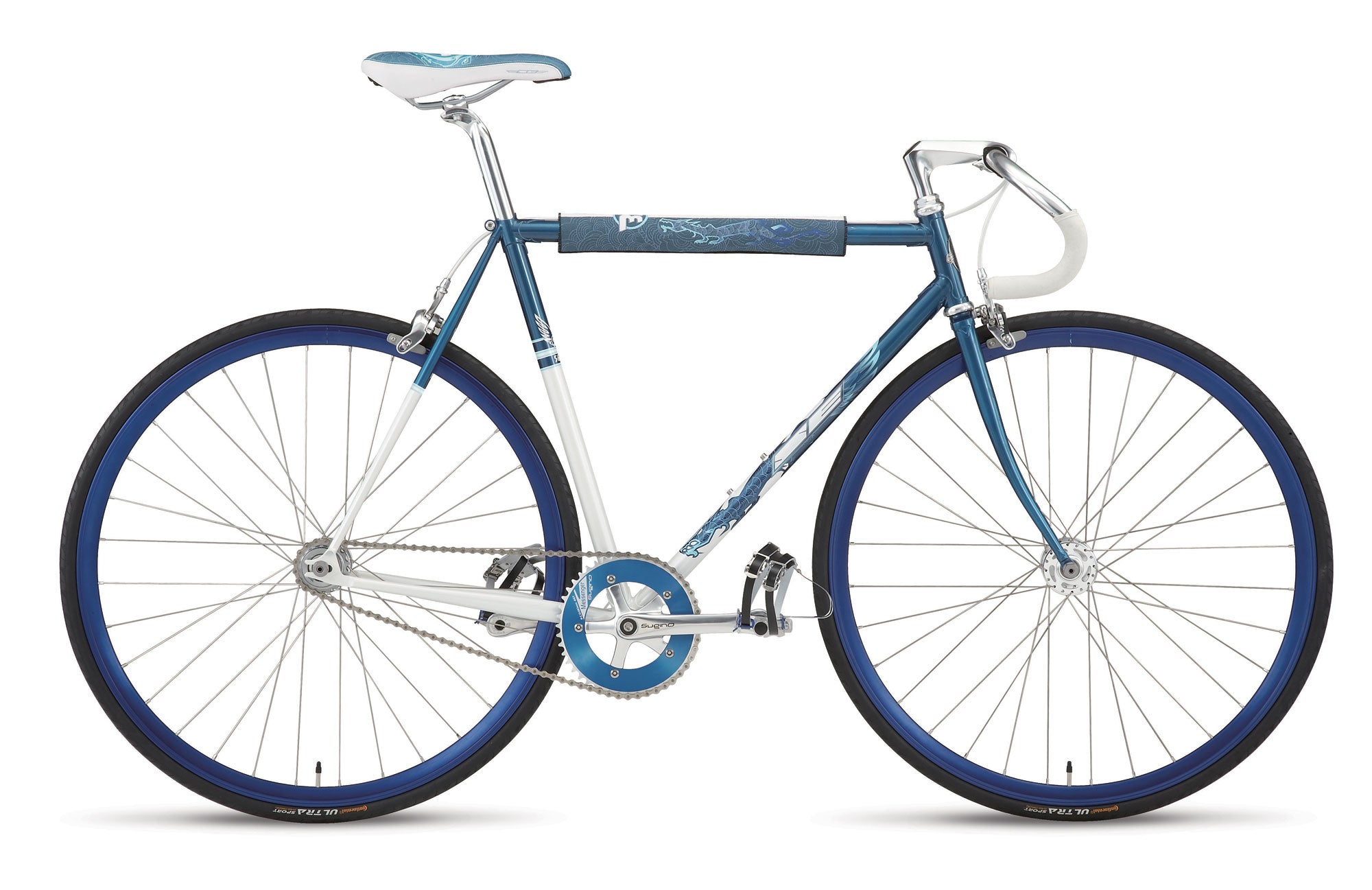

Premium Ale 700c (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% CR-MO, Double Butted, Classic Urban Single Speed Lugged Design, Fender & Water Bottle Mounts |
| Fork | 100% Cr-Mo w/ lugged Crown |
| Crankset | Sugino RD2 Alloy, Euro BB, 46T Alloy Messenger Chainring |
| Pedals | Wellgo R025, Machined Alloy Cage, Cr-Mo Axle, w/ Chrome Toe Clip & Straps |
| Chain | KMC Z-410 Silver |
| Wheelset | Alex Crostini R1.1, 36H, Double Wall, 32 Hole, Blue Ano, Stainless Spokes; SE High Flange Alloy, 32H, Hollow Axle, Sealed Bearing, Nutted Front Hub; SE High Flange Fixed Free Alloy, 32H, Hollow Axle, Sealed Bearing, Nutted, 17T Freewheel & 16T Cog Rear Hub |
| Tires | Continental Ultra Sport 700C |
| Brakeset | Tektro R320 Dual Pivot Calipers, F & R |
| Brake Levers | Tektro RL -570, 2 Finger Alloy, F & R |
| Headset | Tange Sealed Alloy 1" Threaded |
| Handlebar | Pazzaz Alloy Double Butted Track Bar, 420mm Wide |
| Stem | 6061 Alloy Quill, 17 Degree Drop |
| Grips | Track Grip |
| Seat | SE Dragon Print w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy 27.2 |
| Accessories | Dragon Top Tube Pad, Alloy Axle Nuts, Removable SE Brake Cable Clips |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 47cm 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 525, 535, 545, 555, 565, 575, 595 |
| C | Seat Tube Angle | 73°, 72.5°, 72.5°, 73°, 73°, 73°, 73° |
| D | Head Tube Angle | 70°, 71°, 72°, 73°, 73°, 73°, 73 |
| G | Bottom Bracket Height | 270, 270, 270, 270, 270, 270, 270 |
| E | Chainstay Length | 410, 410, 410, 410, 410, 410, 410 |
| Wheel Size | 700c |
