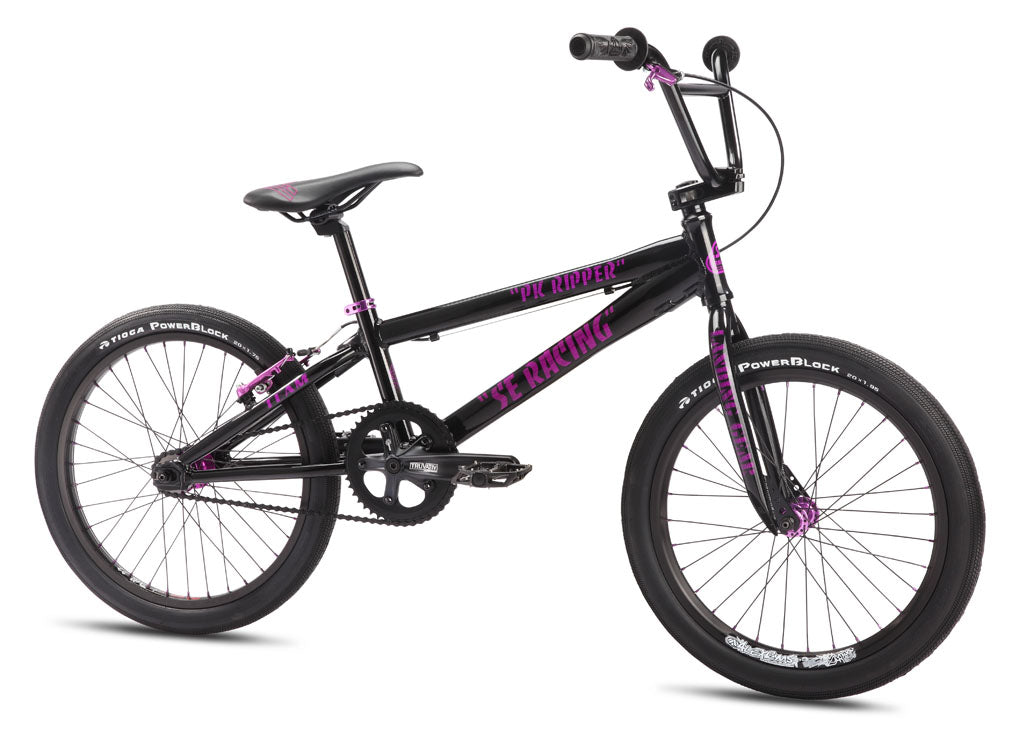

PK Ripper Team (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, 3D Forged Dropouts |
| Fork | 100% Cr-Mo Landing Gear, Tapered Legs, w/ Internally Threaded Steerer Tube |
| Crankset | Truvativ Racing XR 180mm Cranks, ISIS Drive Sealed Bearing Gigapipe BB, 44T 7075-T6, Alloy Chain Ring |
| Pedals | X-Pedo Low Profile Platform w/ Removable Pins |
| Chain | KMC Z33 |
| Wheelset | Sealed Bearing Hollow Axle Alloy Hubs w/ Alex Supra BH20 32H F & 36H DM22 R, Double Wall Rims, 16T Cassette |
| Tires | Tioga Powerblock 20 x 1.95" F, 20 x 1.75" R |
| Brakeset | Tektro 930AL V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Tange Sealed 1-1/8" Integrated Headset |
| Handlebar | Cr-Mo PK Bar, 27.25 x 7.5" |
| Stem | SE Top Load Alloy, Lightweight External Cutouts |
| Grips | SE Racing Wing Grip w/ SE Rubber End Plugs |
| Seat | SE Sleek Seat With Custom Imprinted Cover |
| Seatpost | Race Rocker Micro-Adjust Aluminum, 27.2mm |
| Accessories | Race Plate, T ouch-up Paint |
| Wheel Size | 20" |
| Weight | 21.50lbs / 9.77kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.5" |
| Seat Tube, Center To Top | 9.4" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.5" |
| Wheelbase | 37" | |
| Seat Post Diameter | 27.2mm |
