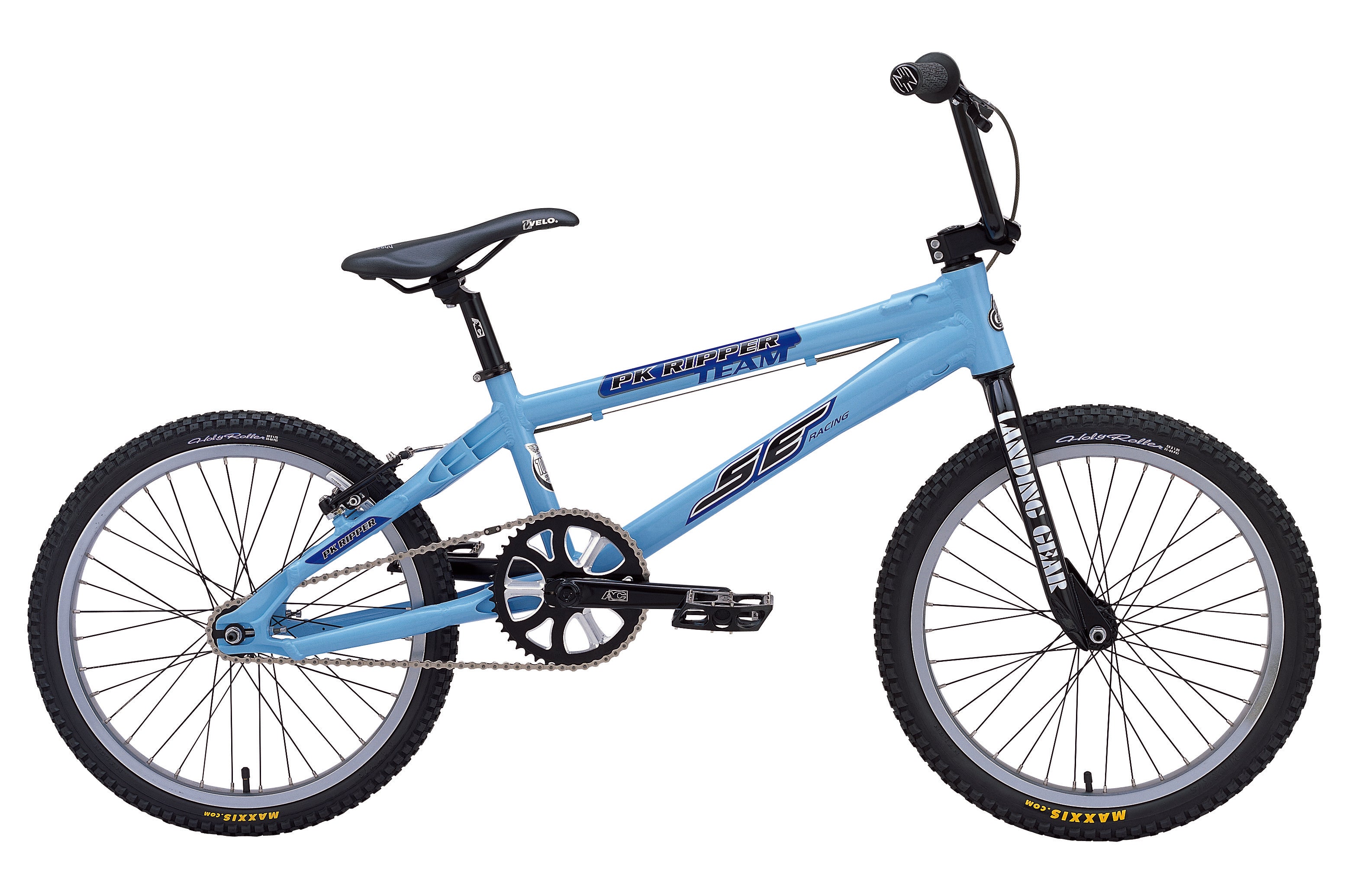

PK Ripper Team (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing w/ Power Box Shaft Rear Stays, Integrated Head Tube, Integrated Chain Tensioners |
| Fork | CR-MO, 1-1/8" Landing Gear |
| Crankset | AC ProSpeed 001, 3-pc Tubular CR-MO, 180mm; AC, AC/DC, 44T Aluminum Sprocket; AC, Euro, 4 Sealed Cartridge Bearings, 10 spline spindle |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle & Replacable Pins |
| Cassette | 16T AC Cassette |
| Chain | KMC Z30 |
| Wheelset | ALEX Supra B, 36H Double Wall Aluminum, Welded Joint, Chrome; AC Racing Cartridge Sealed Bearing, 36H Alloy Front Hub; AC Racing Cartridge Sealed Bearing, 36H Alloy, with 16T cassette Rear Hub; Stainless, Black, 14 Ga. Spokes |
| Tires | Maxxis Holy Roller 1.95 / 1.75 |
| Brakeset | Tektro BX-25 V-Brake, Cartridge Pads, Slick Cable (Rear Only) |
| Brake Levers | Tektro Sabre, 2 Finger Alloy |
| Headset | VP 1-1/8" Threadless, Press Fit Integrated |
| Handlebar | CR-MO, SE Wing Bar, 26.5" x 7.5" |
| Stem | SE Front Load, 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE Racing With Custom Imprinted Cover |
| Seatpost | AC RacePost Micro-Adjust Aluminum 27.2 |
| Seat Clamp | SE Racing Alloy |
| Accessories | Chain Tensioners, Aluminum Bar Ends |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.25" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.75" |
| G | Bottom Bracket Height | 11.7" |
| Seat Tube Length | 10" | |
| Wheel Size | 20" |
