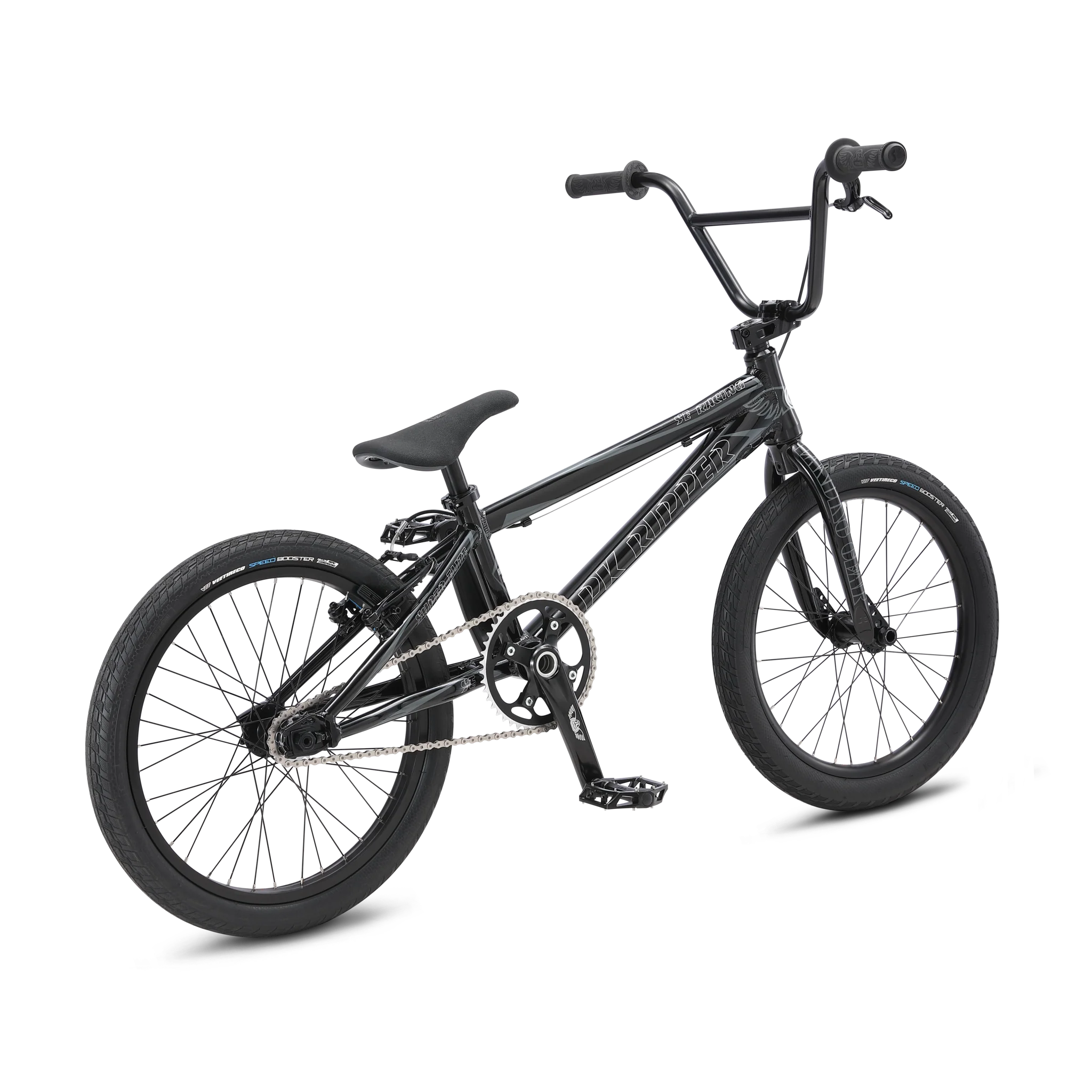

PK Ripper Super Elite XL
PK Ripper Super Elite XL
PK Ripper Super Elite XL

PK Ripper Super Elite XL

$1,049.99
Description

The PK Ripper has never been stiffer, stronger or faster. The PK Ripper Super Elite XL is the definition of "BMX innovations." The ultra-stiff 6066 aluminum frame comes equipped with features such as a tapered head tube, PF30 bottom bracket and 20mm dropouts front and rear. There is no doubt that this bike will put you on top of the podium.
ColorFast Black
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube, tapered rear stays, 20mm rear dropouts, 1-1/8“ - 1.5" tapered head tube, PF30 bottom bracket and built-in chain tensioners
  • Lightweight Cr-Mo Landing Gear forks featuring tapered legs, tapered steerer tube and closed-end 20mm dropouts
  • Promax Impact 6061-T6 Alloy CNC stem with hidden top cap for a clean look
  • Lightweight 2-piece alloy crankset equipped with super stiff oversized 30mm hollow spindle and PF30 bottom bracket
  • SE Pivotal seat and seatpost
  • Alienation Deviant and Black Sheep rims built with sealed cassette hubs equipped with 20mm hollow through-axle on the front and 15mm hollow through-axle on the rear
  • Vee Tire Co Speed Booster tires provide ultra-quick cornering and low rolling resistance
  • Comes equipped with 3/8", 15mm and 20mm rear chain tensioner adapter plates
  • 21.9 pounds
SPECIFICATIONS
Frame Super Elite Design, Lightweight 6066 Aluminum Floval Tubing w/ Bi-Oval Down Tube, 1-1/8"-1.5" Tapered Integrated Head Tube, PF30 Bottom Bracket, 68mm Wide BB, Tapered Rear Stays, 3D 20mm Dropouts, Built-in Chain Tensioners
Fork Super Elite Landing Gear, Full Cr-Mo, Tapered Steerer Tube, Tapered Legs, 20mm Closed Dropouts
Crankset SE Racing 180mm Forged Alloy 2-pc Crankset, Sealed PF30 Bottom Bracket, 30mm Hollow Alloy Spindle, Alloy 44T Chainring, BCD 104mm
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Chain KMC Z1
Wheelset Sealed Bearing Alloy Hubs, 20mm Hollow Front Through Axle, 15mm Hollow Rear Through Axle, Alienation Deviant 32H Front & Alienation Black Sheep 36H Rear, Double-Wall Rims, 16T Cassette, Stainless Spokes
Tires Vee Tire Co Speed Booster, 20" x 1.95" Front, 20" x 1.75" Rear
Brakeset Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable
Headset Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset
Handlebar Cr-Mo PK Bar, 28.5" x 8.25", 10° Backsweep, 1° Upsweep
Stem Promax Impact, 6061-T6 Aluminum, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 53mm Reach
Grips SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs
Seat SE Racing Pivotal Race Seat
Seatpost Pivotal Alloy, 27.2mm, Promax Quick Release Seat Clamp
Accessories 20mm, 15mm & 3/8" Chain Tensioner Adapters, Promax Quick Release Seat Clamp
GEOMETRY
A Top Tube, Actual 21"
B Seat Tube, Center To Top 9.5"
C Seat Tube Angle 71°
D Head Tube Angle 74°
E Chainstay Length 14.3"
F Wheelbase 37.5"
G Bottom Bracket Height 11.5"
H Standover 22.2"
Suggested Rider Size 5'5"+ (165cm+)
Stem 53mm
Handlebar Width 28.5"
Crank 180mm
Wheel Size 20"
Seat Post Diameter 27.2mm
Geometry diagram
