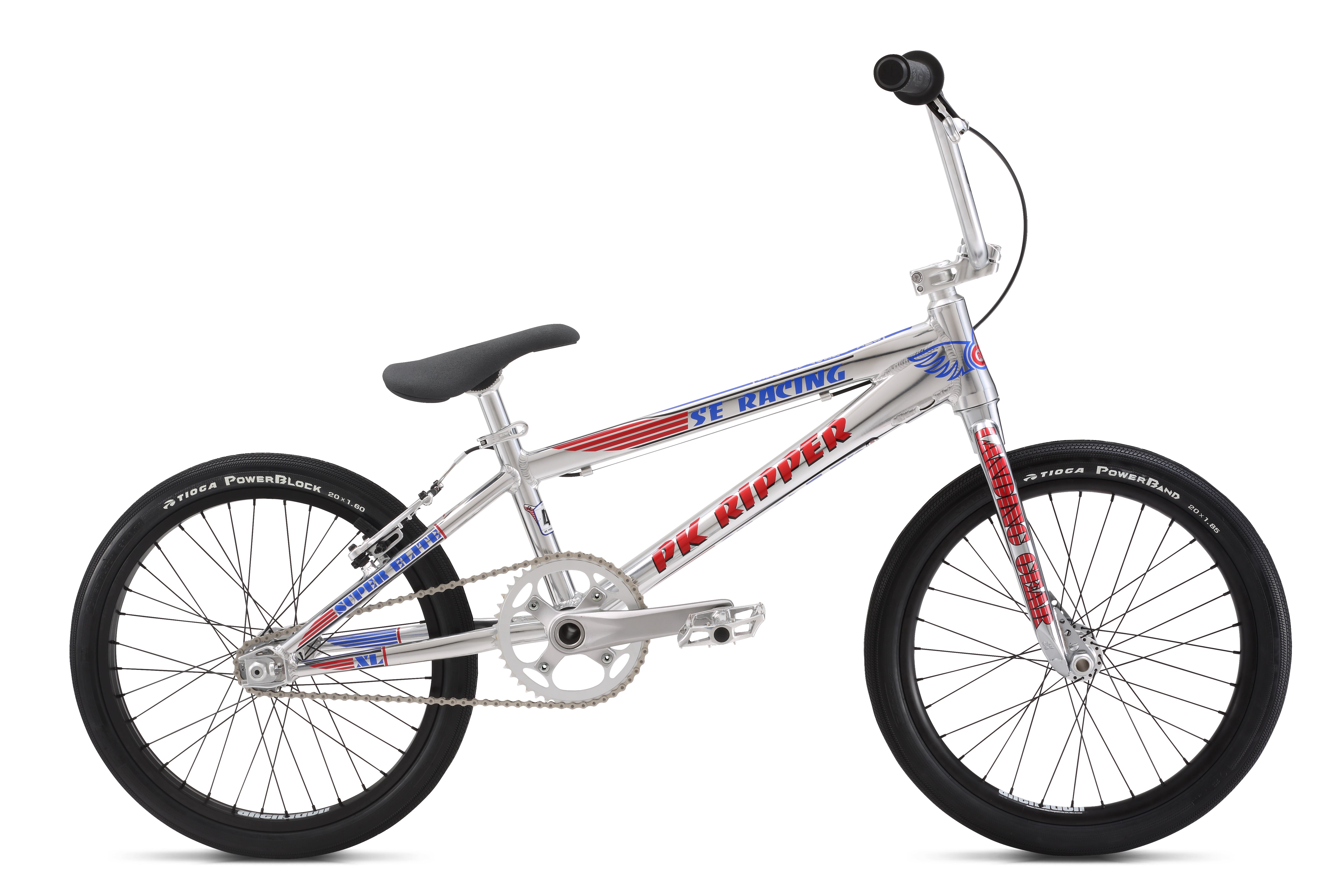

PK Ripper Super Elite XL (2018)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Super Elite Design, Lightweight 6066 Aluminum Floval Tubing w/ Bi-Oval Down Tube, 1-1/8"-1.5" Tapered Integrated Head Tube, PF30 Bottom Bracket, Tapered Stays, 3D 20mm Dropouts, Built-in Chain Tensioners |
| Fork | Super Elite Landing Gear, Full Cr-Mo, Tapered Steerer Tube, Tapered Legs, 20mm Closed Dropouts |
| Crankset | 180mm Forged Alloy 2-pc Crankset, Sealed PF30 Bottom Bracket, 30mm Alloy Hollow Spindle, Alloy 44T Chainring, BCD 104mm |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC Z33 |
| Wheelset | Sealed Bearing Alloy Hubs, 20mm Hollow Front Through Axle, 15mm Hollow Rear Through Axle, Alienation Deviant 32H Front & Alienation Black Sheep 36H Rear, Double-Wall Rims, 16T Cassette, Stainless Spokes |
| Tires | Tioga PowerBand 20" x 1.85" Front, Tioga PowerBlock 20 x 1.60" Rear |
| Brakeset | Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable |
| Brake Levers | Promax SE-342, 2-Finger Alloy |
| Headset | Tange IS-245 Sealed 1-1/8"-1.5" Tapered, Integrated Headset |
| Handlebar | Cr-Mo PK Bar, 28.5" x 8.25" |
| Stem | Promax Impact, 6061-T6 Aluminum, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 53mm Reach |
| Grips | SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs |
| Seat | SE Pivotal Race Seat |
| Seatpost | Pivotal Alloy, 27.2mm, Promax Quick Release Seat Clamp |
| Accessories | 20mm, 15mm & 3/8" Chain Tensioner Adapters Included, SE Racing Number Plate, Promax QR-1 Quick Release Seat Clamp |
| Wheel Size | 20" |
| Weight | 20.8 lbs / 9.45 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21" |
| B | Seat Tube, Center To Top | 9.5" |
| C | Seat Tube Angle | 71° |
| 74D | Head Tube Angle | ° |
| E | Chainstay Length | 14.3" |
| F | Wheelbase | 37.5" |
| G | Bottom Bracket Height | 11.5" |
| H | Standover | 22.2" |
| Stem | 53mm | |
| Handlebar Width | 28.5" | |
| Crank | 180mm | |
| Wheel Size | 20" | |
| Seat Post Diameter | 27.2mm |
