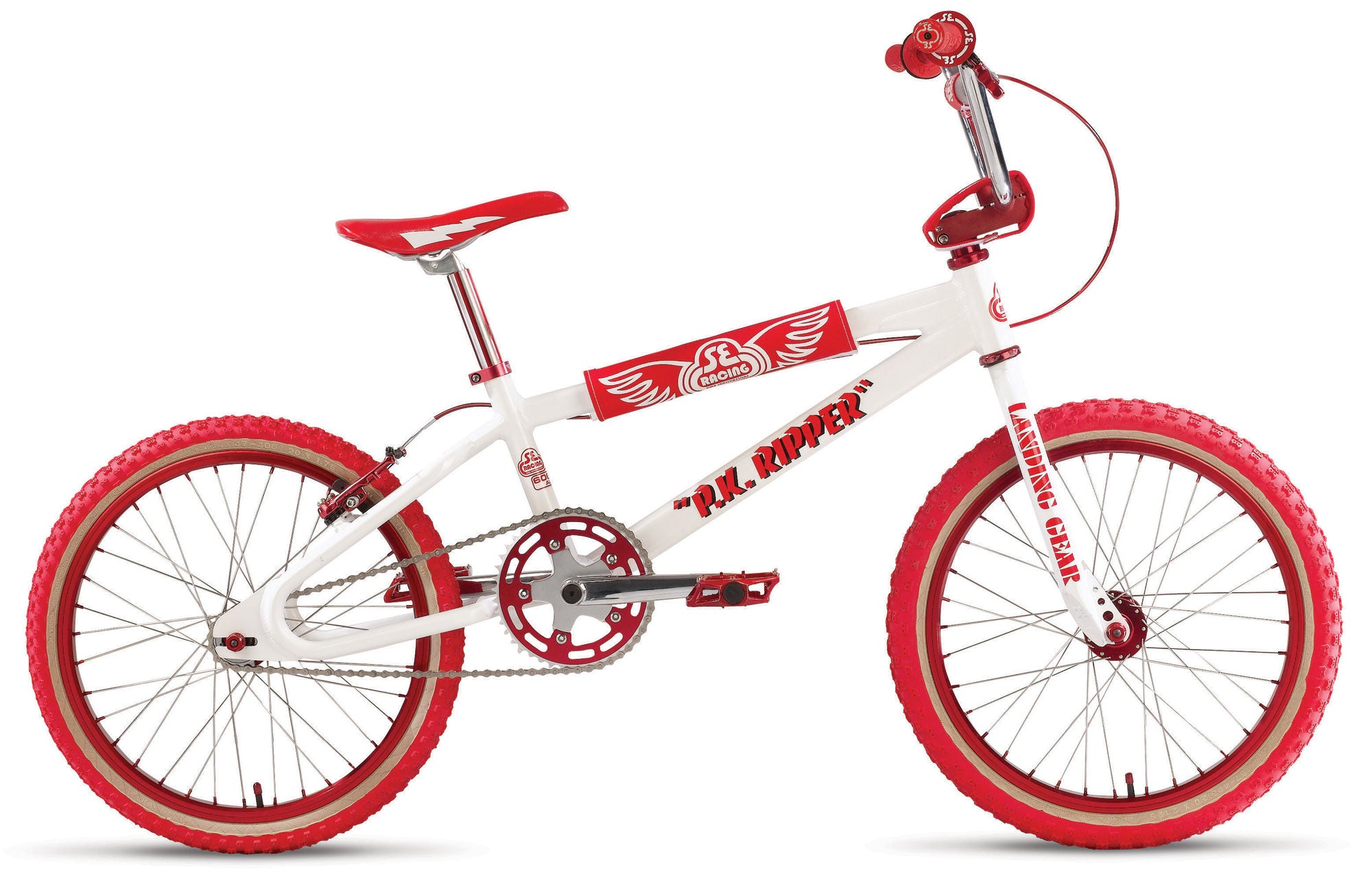

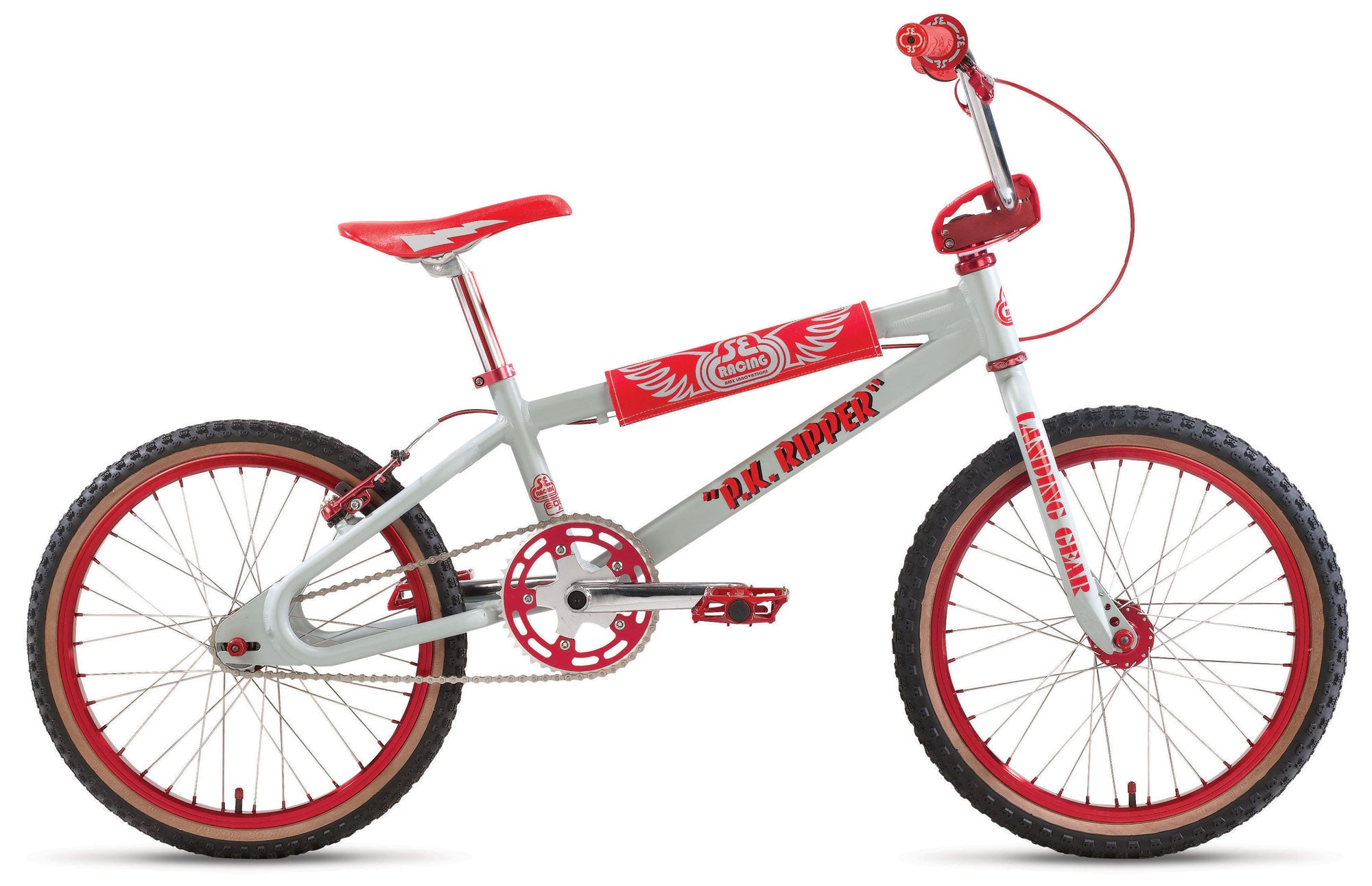

PK Ripper Looptail (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Looptail Rear End, Retro Dropouts & Gussets |
| Fork | 100% CR-MO Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 180mm, 48 Spline Sealed American, 44T Alloy |
| Pedals | Classic WellgoAlloy Platform, Cr-Mo Axle, Removable Pins |
| Chain | KMC Z30, silver |
| Wheelset | Alex DM-24, 36H Double Wall Aluminum , Stainless Spokes w/ Red Ano. Nipples; SE Racing High Flange Alloy, Sealed Bearing, Cr-Mo Axle Front Hub; SE Racing High Flange, Sealed Bearing Alloy, Cr-Mo Axle w/ 16T Freewheel Rear Hub |
| Tires | Kenda K-50 Retro Tread Pattern w/ Skinwalls 2.125 F, 1.75 R |
| Brakeset | Tektro 930AL V-Brake, Slick Cable |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | CR-MO PK Bar, 27.25" x 7.5", Chrome |
| Stem | Retro T op Load 1-1/8" Alloy |
| Grips | SE Racing Wing Grip |
| Seat | SE Lightning Blitz Seat w/ Bottle Opener |
| Seatpost | Retro Fluted Micro-Adjust, Aluminum 27.2 |
| Accessories | Retro Pads, Alloy Axle Nuts, Grip Donuts, Alloy Valve Caps, SE Alloy End Caps |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.25" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.75" |
| G | Bottom Bracket Height | 11.45" |
| Wheel Size | 20" |
