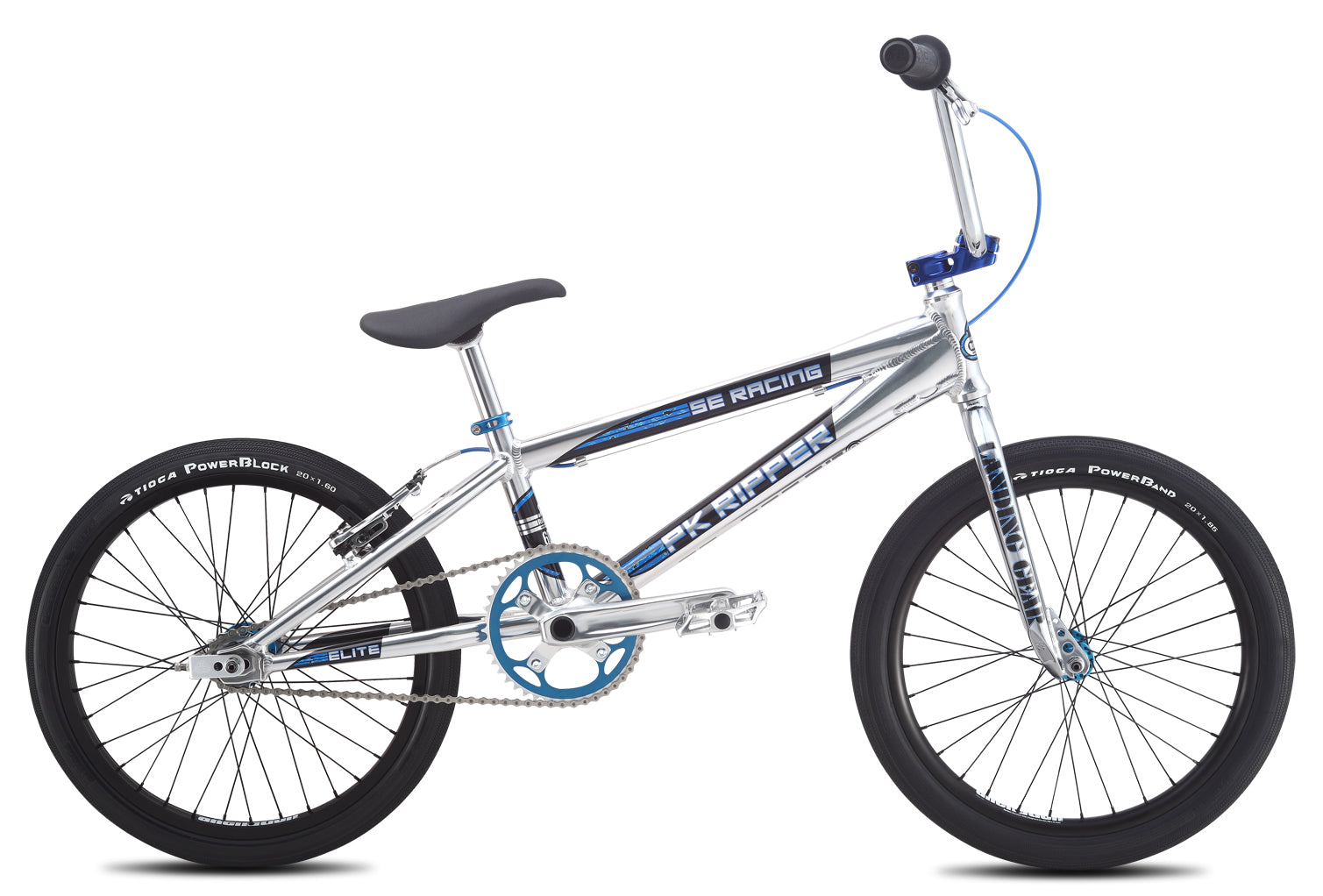

PK Ripper Elite (2016)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Lightweight 6066 Alloy Floval Tubing, Internally-machined Integrated Head Tube, Bi-Oval Down Tube, Tapered Stays, 3D-Forged Dropouts |
| Fork | Landing Gear 2, Full Cr-Mo, Tapered Legs |
| Crankset | 175mm Forged Alloy 2-pc w/ Alloy 44T Chain Ring, Integrated Sealed External BB, Hollow Axle |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC Z33 |
| Wheelset | Sealed Bearing Hollow Axle Alloy Hubs w/ Alienation Deviant 32H F & Black Sheep 36H R, Double-Wall Rims, 16T Cassette, Stainless Spokes |
| Tires | Tioga PowerBand 20" x 1.85" F, Tioga PowerBlock 20 x 1.60" R |
| Brakeset | Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable |
| Brake Levers | Promax SE-342, 2-Finger Alloy |
| Headset | Tange IS24 Sealed 1-1/8" Integrated Headset |
| Handlebar | Cr-Mo PK Bar, 28.5" x 8.25" |
| Stem | Promax Impact, 6061-T6 Alloy, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap |
| Grips | SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs |
| Seat | SE Pivotal Race Seat |
| Seatpost | Pivotal Alloy, 27.2mm |
| Accessories | SE Chain Tensioners, New SE Racing Number Plate |
| Wheel Size | 20" |
| Weight | 20.70lbs / 9.41kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.5" |
| Seat Tube, Center To Top | 9.5" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.3" |
| Wheelbase | 37" | |
| G | Bottom Bracket Height | 11.45" |
| Seat Post Diameter | 27.2mm | |
| Standover | 22.2" |
