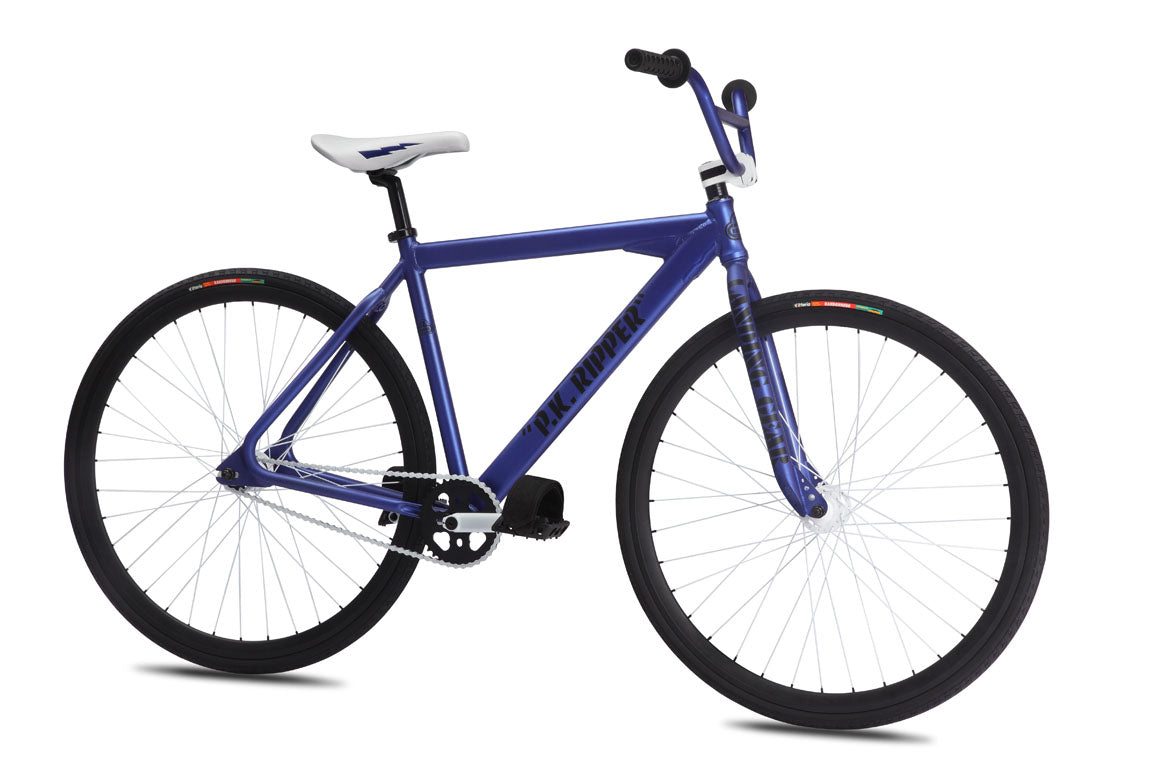

PK Fixed Gear 700c (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Compact Frame Geometry, 6066 Aluminum Floval Tubing, Internally Machined, Integrated Head Tube, Looptail Rear End, Retro Dropouts & Gussets, All Sizes Can Barspin |
| Fork | Cr-Mo Landing Gear, Butted for Strength, Accepts Pegs, 3/8" Dropout w/ Wide Tire Clearance |
| Crankset | 3-pc Cr-Mo 8-Spine, Euro Sealed Bearing, 36T SE Bubble Sprocket |
| Pedals | Odyssey Twisted Plastic Composite w/ Reinforced Foot Straps |
| Chain | KMC Z410 |
| Wheelset | SE Sealed Bearing High Flange Alloy Hubs, 36H, Fixed/Free w/ High Profile Double Wall Rims, 14T Fixed Cog & 14T Freewheel |
| Tires | Vittoria Randonneur 700x32c |
| Brakeset | Tektro R369 Dual Pivot Caliper F & R |
| Brake Levers | Tektro RX1.0 2-Finger F & R |
| Headset | Tange Sealed bearing 1-1/8" Integrated Threadless |
| Handlebar | Cr-Mo SE Racing Floval Bar, 26" x 5" |
| Stem | Affix Strangler 6061 T-6 Alloy, Zero Degree Drop, 22.2mm Clamp |
| Grips | S1-E Dual Ply Retro Grip |
| Seat | SE Lightning Boss Seat w/ Bottle Opener |
| Seatpost | 3-D Forged Alloy One Piece, Aluminum 27.2 |
| Weight | 24.20lbs / 11kgs (49cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 44cm, 49cm, 53cm, 58cm | |
| Top Tube, Effective | 553, 560, 580, 595 | |
| C | Seat Tube Angle | 74.5°, 74.5°, 74.5°, 74.5° |
| D | Head Tube Angle | 73°, 73°, 74°, 74° |
| E | Chainstay Length | 410, 410, 410, 410 |
| Wheelbase | 993, 1000, 1011, 1027 | |
| Head Tube Length | 90, 95, 135, 185 | |
| Handlebar Width | 660, 660, 660, 660 | |
| Standover | 740.3, 766.4, 806.9, 854.8 | |
| Crank | 165, 165, 170, 170 | |
| Stem | 48, 48, 65, 65 |
