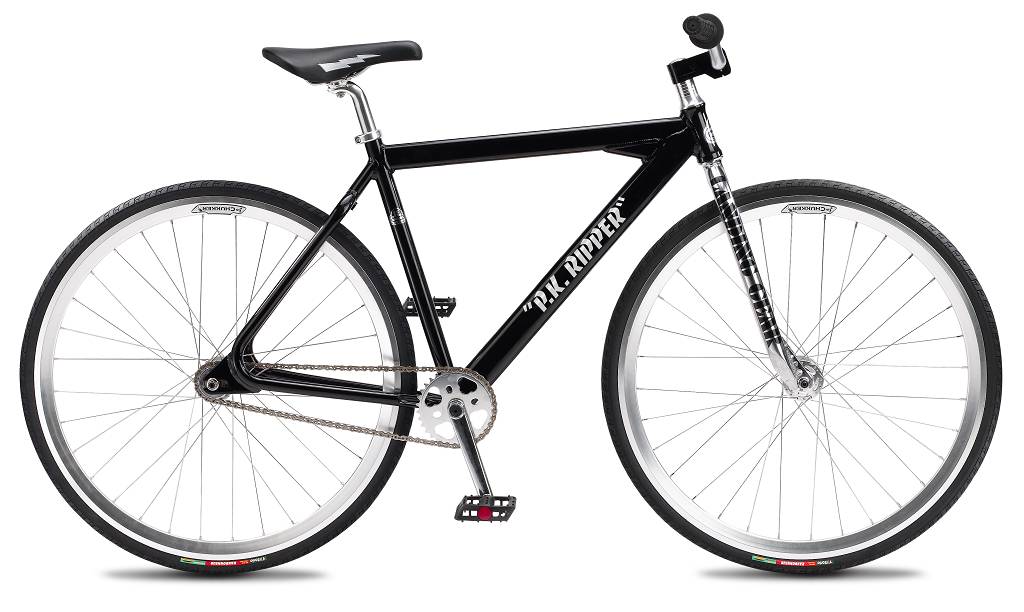

PK Fixed Gear 700c (2011)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Compact Frame Geometry, 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Looptail Rear End, Retro Dropouts & Gussets, All Sizes Can Barspin |
| Fork | Cr-Mo Landing Gear |
| Crankset | 3-pc Cr-Mo 48-Spine, Euro Sealed Mid Bearing, 33T |
| Pedals | Odyssey Twisted Plastic Composite |
| Chain | KMC K710SL |
| Wheelset | SE Sealed Bearing High Flange Alloy 32H Fixed/Free Hubs w/Velocity Chukker Double Wall Rims, 13T Fixed Cog & 13T Freewheel |
| Tires | Vittoria Randonneur 700x32c |
| Brakeset | Tektro 316 Dual Pivot Caliper F&R |
| Brake Levers | Tektro RX1.0 2-Finger |
| Headset | Tange 1 1/8" Integrated Threadless, Cartridge Sealed |
| Handlebar | SE 2.5" Rise Alloy Riser Bar w/ Crossbar, 23" Wide |
| Stem | Affix Strangler 6061 T-6 Alloy, Zero Degree Drop |
| Grips | S1-E Dual Ply Retro Grip |
| Seat | SE Boss Seat w/ Bottle Opener |
| Seatpost | 3-D Forged Alloy One Piece, Aluminum 27.2 |
| Accessories | Top Tube Pad, Touch-Up Paint |
| Weight | 25.4 lbs / 11.5 kg |
Specifications subject to change without notice.
GEOMETRY
| Size | 44cm, 49cm, 53cm, 58cm | |
| Top Tube, Effective | 553, 560, 580, 595 | |
| C | Seat Tube Angle | 74.5°, 74.5°, 74.5°, 74.5° |
| D | Head Tube Angle | 73°, 73°, 74°, 74° |
| E | Chainstay Length | 410, 410, 410, 410 |
| Wheelbase | 993, 1000, 1011, 1027 | |
| Head Tube Length | 90, 95, 135, 185 | |
| G | Bottom Bracket Height | 282, 282, 282, 282 |
| Standover | 740, 766, 807, 855 | |
| Crank | 165, 165, 170, 170 | |
| Stem Length | 48, 48, 65, 65 | |
| Handlebar Width | 580, 580, 580, 580 |
