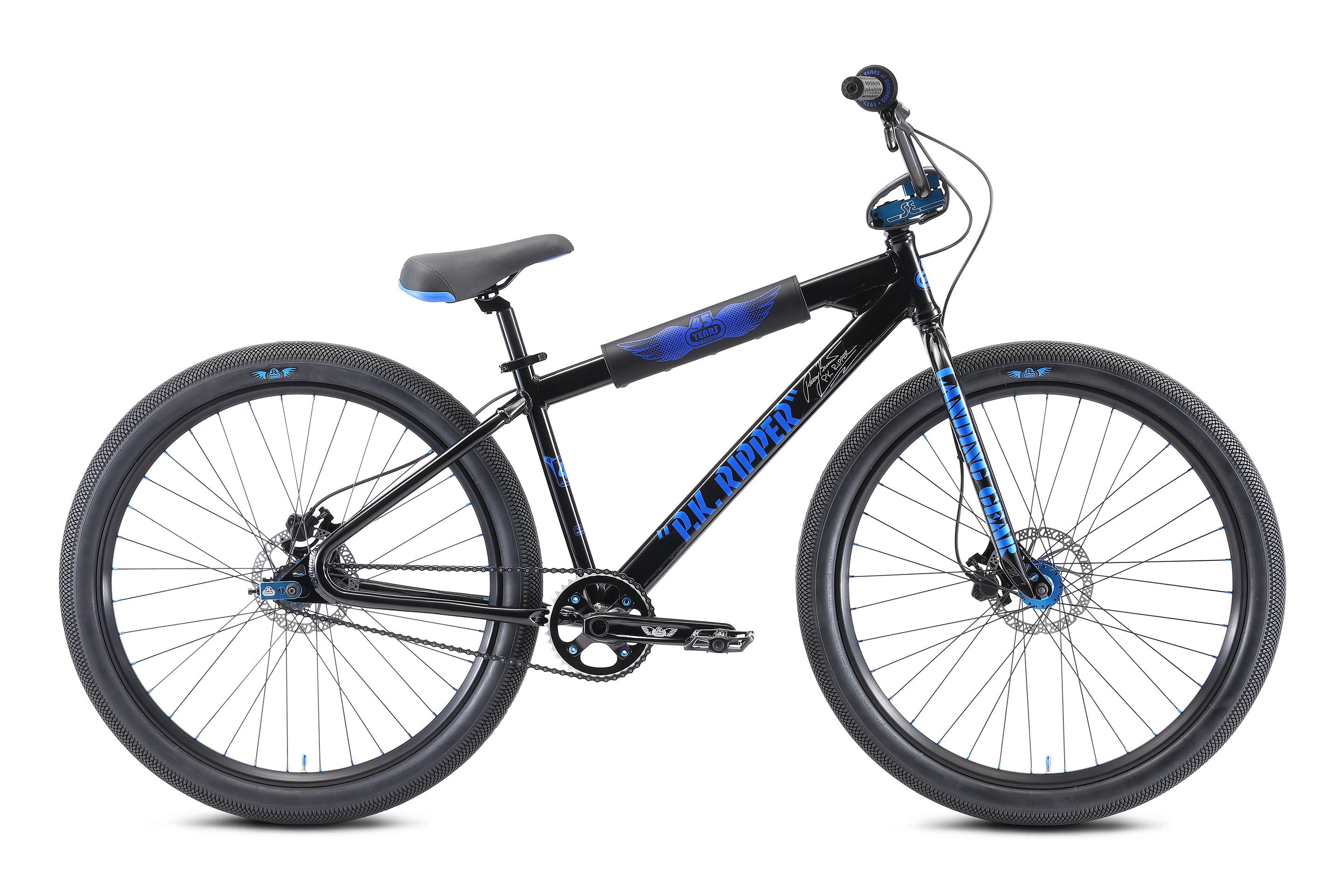

Perry Kramer PK Ripper 27.5" (2022)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Symmetrical Looptail Rear End, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Internal Cable Routing on Top Tube, Disc Brake Tabs |
| Fork | Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts |
| Crankset | SE Racing 175mm Forged Alloy 2-pc Cranks, Pedal Boss Inserts, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring |
| Pedals | Wellgo Low-profile Platform |
| Chain | KMC S1 |
| Wheelset | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ Alex DP30 Tubeless Compatible, Double-Wall Disc Rims, 17T Cassette, Stainless Spokes, Tubeless Valves, Tubeless Rim Tape |
| Tires | Vee Tire Co x SE Racing Speedster, 72TPI, 27.5" x 2.5" Front & Rear |
| Brakeset | Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor |
| Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
| Headset | FSA Integrated Orbit CE, Sealed 1-1/8" |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Grips | Oakley B-1B, Made in USA, w/ 45 Years of Radness SE Donuts |
| Seat | Perry Kramer SE Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Promax Quick Release Seat Clamp, 31.8mm Inner Diameter |
| Accessories | 45 Years of SE Radness Snap Padset, Alloy Valve Caps, Custom Perry Kramer PK Ripper 27.5 Sticker Sheet, SE Chain Tensioners, Tubeless Valves, Tubeless Rim Tape |
| Wheel Size | 27.5" |
| Weight | 30.1 lbs / 16.65 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.8" |
| Seat Tube, Center To Top | 15.7" | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay | 17.4" |
| Wheelbase | 42.7" | |
| G | Bottom Bracket Height | 11.9" |
| Standover | 29.5" | |
| Stem | 55mm | |
| Handlebar Width | 29" | |
| Crank | 175mm | |
| Wheel Size | 27.5"" | |
| Seat Post Diameter | 27.2mm |
