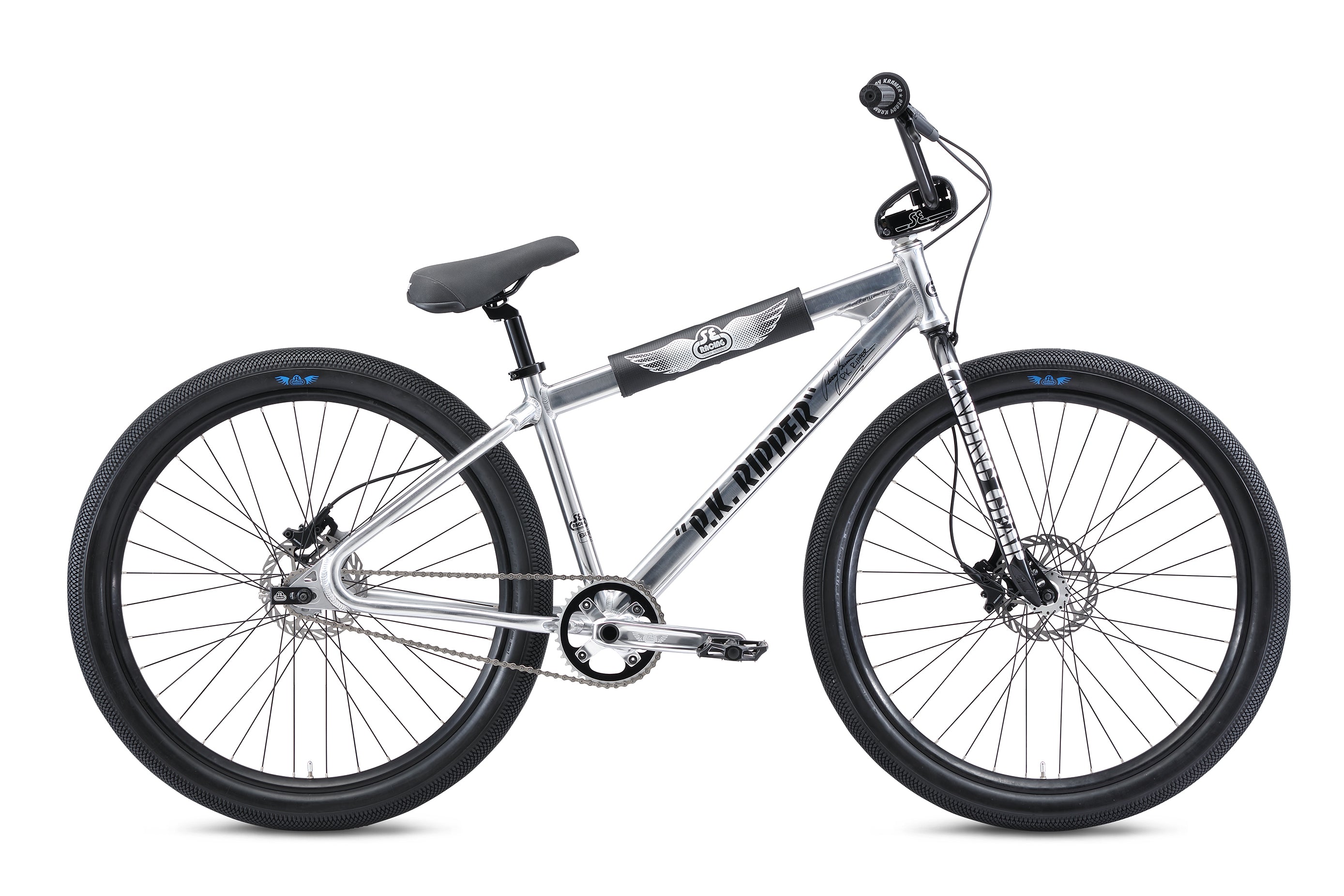

Perry Kramer PK Ripper 27.5" (2020)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Symmetrical Looptail Rear End, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Internal Cable Routing on Top Tube, Disc Brake Tabs |
| Fork | Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts |
| Crankset | SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC S1 |
| Wheelset | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ Alex DP30 Tubeless Compatible, Double-Wall Disc Rims, 17T Cassette, Stainless Spokes, Tubeless Valves, Tubeless Rim Tape |
| Tires | Vee Tire Co x SE Racing Speedster, Tubeless Ready, Folding, 72TPI, 27.5 x 2.5" Front & Rear |
| Brakeset | SRAM Level, Hydraulic Disc, 2-Piston Caliper, 160mm Rotor, Expandable Bladder, Timing Port Closure, DOT 5.1 Fluid |
| Brake Levers | SRAM Direct Link Level, Alloy |
| Headset | FSA Orbit CE, Sealed 1-1/8" Integrated |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7" , 12° Backsweep, 2° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Grips | Oakley B-1B, Made in USA, w/ Perry Kramer Donuts |
| Seat | Perry Kramer SE Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Quick Release Seat Clamp, 31.8mm Inner Diameter |
| Accessories | SE Racing Snap Padset, Alloy Valve Caps, Custom Perry Kramer PK Ripper 27.5 Sticker Sheet, SE Chain Tensioners, Tubeless Valves, Tubeless Rim Tape |
| Wheel Size | 27.5" |
| Weight | 33.1 lbs / 15.01 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.8" |
| Seat Tube, Center To Top | 15.7" | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 17.4" |
| Wheelbase | 42.7" | |
| G | Bottom Bracket Height | 11.9" |
| Standover | 29.5" | |
| Stem | 55mm | |
| Handlebar Width | 29" | |
| Crank | 175mm | |
| Wheel Size | 27.5" | |
| Seat Post Diameter | 27.2mm |
