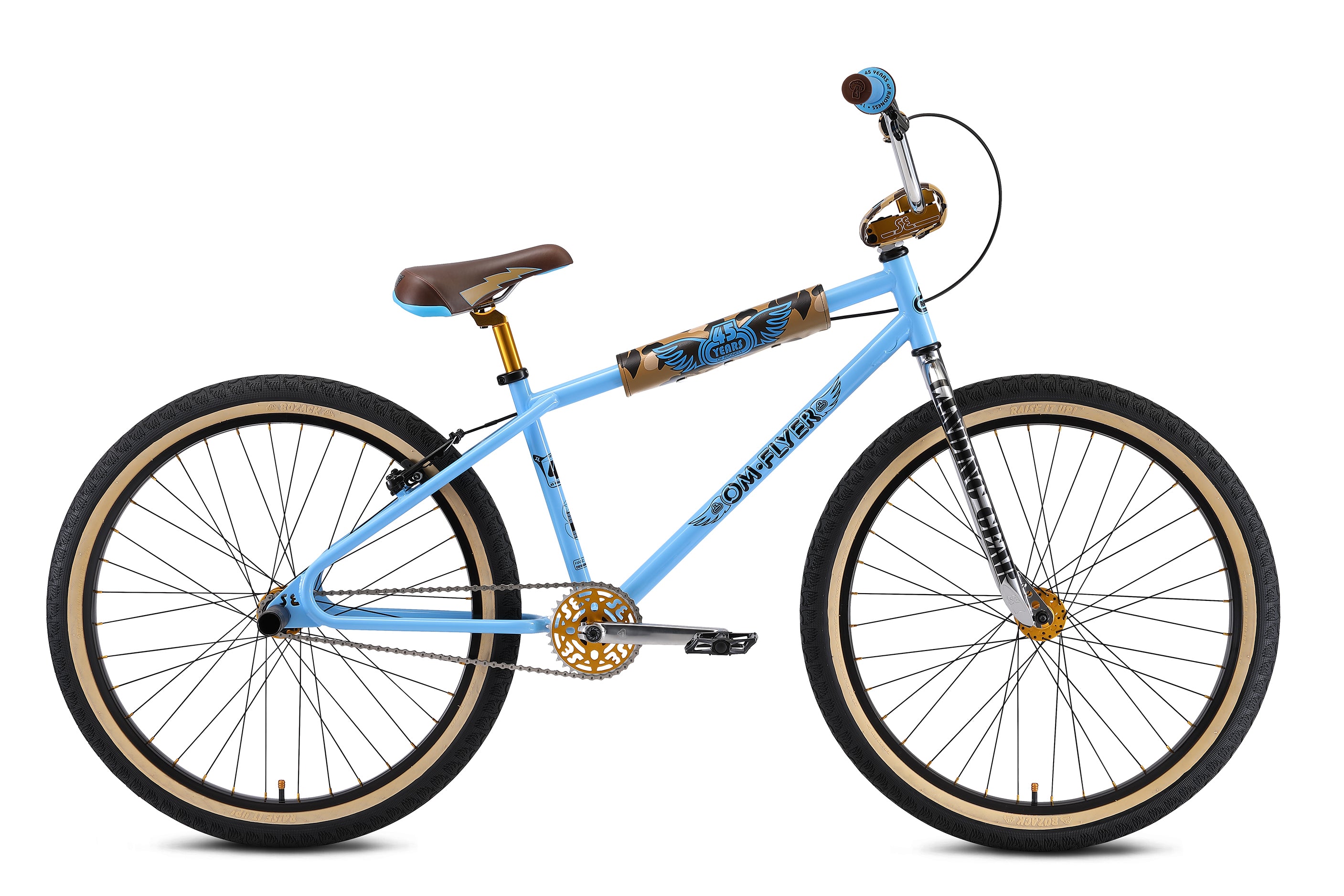

OM Flyer 26" (2022)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo Tubing, Butted Top Tube & Down Tube, Looptail Rear End, 68mm American Bottom Bracket, Wide Rear Stays, Retro Dropouts |
| Fork | Landing Gear, Full Cr-Mo |
| Crankset | SE V-Ridge 3-pc Cr-Mo Cranks, 180mm, Sealed Bearing American Bottom Bracket, SE Star Spider, 150mm Spindle Length, 19mm Spindle Diameter, 33T Alloy SE Racing Sprocket |
| Pedals | Wellgo Low-profile Platform |
| Chain | KMC S1 |
| Wheelset | Sealed Bearing SE Mohawk Flip Flop Hubs, 36H High-Flange Alloy, w/ Double-wall Rims, 14T Freewheel, Stainless Spokes |
| Tires | SE Bozack, Street Proven Multi Purpose Compound, Wrap Around Urban Tread Pattern, Grooved SE Wing Logo, 26" x 2.4" Front & Rear |
| Brakeset | Tektro 855AL V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | Cr-Mo Power Wing Cruiser Bar, 28" x 7", 10° Backsweep, 1° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ 45 Years of Radness SE Donuts |
| Seat | SE Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 25.4mm |
| Seat Clamp | SE Racing Champ Clamp, Alloy, 28.6mm Inner Diameter |
| Accessories | 45 Years of SE Radness Snap Padset, Alloy Valve Caps, SE Wheelie Pegs, SE Cable Clips |
| Wheel Size | 26" |
| Weight | 32.9 lbs / 14.92 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.1" |
| Seat Tube, Center To Top | 15 | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay | 17.4" |
| Wheelbase | 42" | |
| G | Bottom Bracket Height | 12" |
| Standover | 28.1" | |
| Stem | 55mm | |
| Handlebar Width | 29" | |
| Crank | 180mm | |
| Wheel Size | 26" | |
| Seat Post Diameter | 25.4mm |
