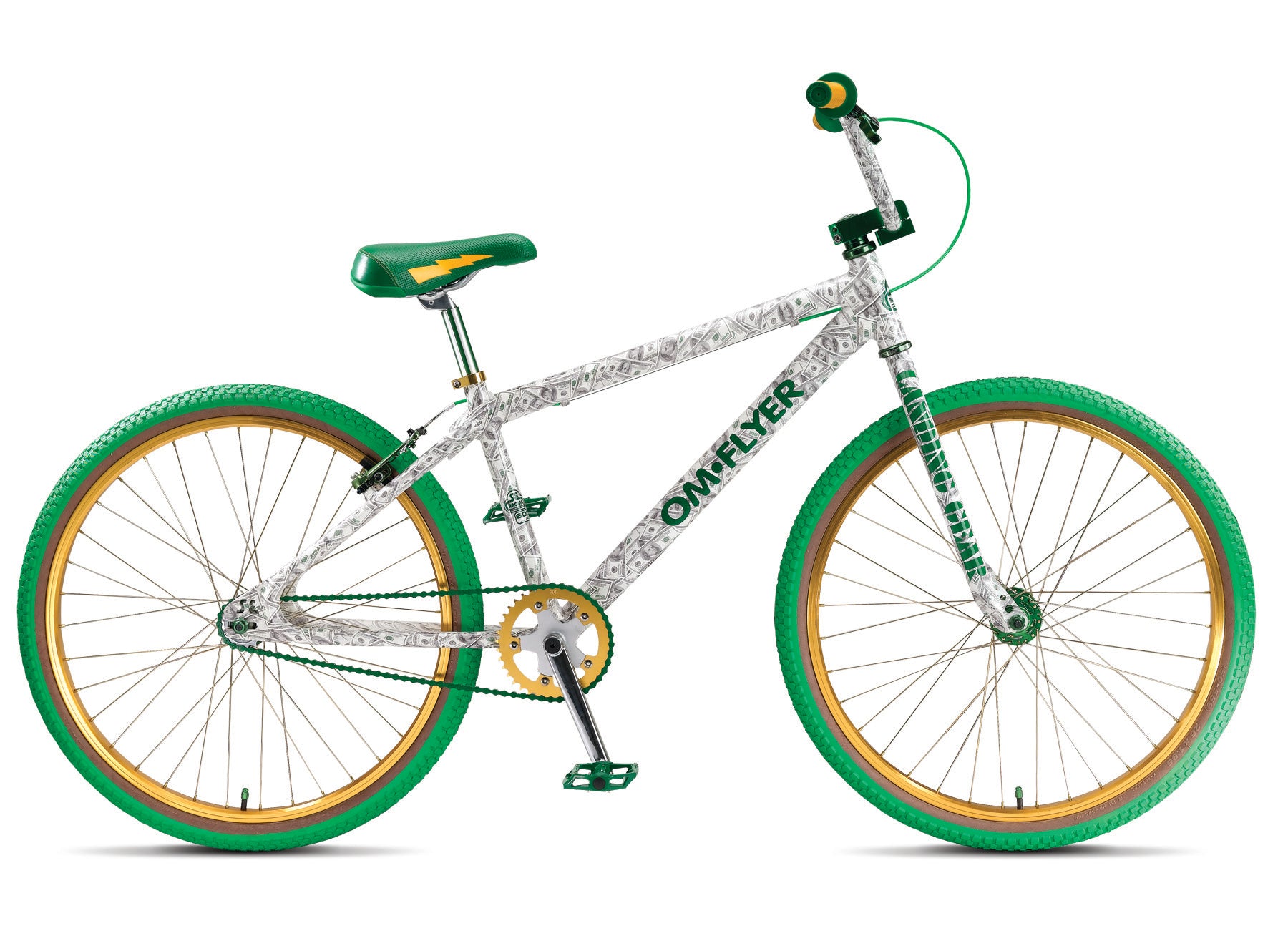

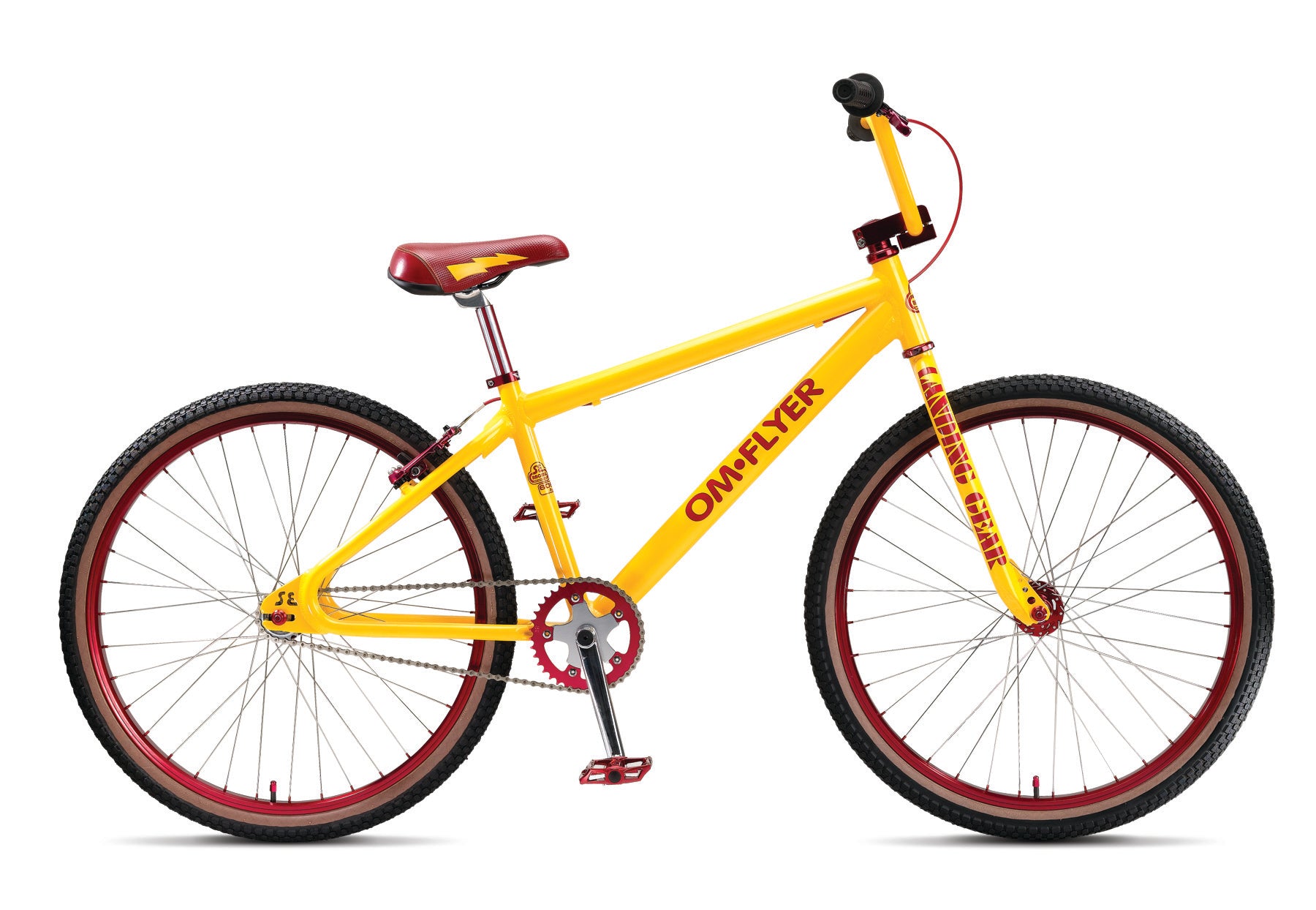

OM Flyer 26" (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Tubing, Looptail Rear End, Retro dropouts |
| Fork | 100% CR-MO Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 180mm, 48 Spline Sealed American, 39T Alloy; |
| Pedals | X-Pedo Low Profile Platform w/ Removable Pins |
| Chain | KMC Z30 Silver |
| Wheelset | Alex DM24, 36H Double Wall Aluminum, w/ Stainless 14Ga. Spokes; SE Racing High Flange Alloy, Sealed Bearing, Cr-Mo Axle Front Hub; SE Racing High Flange Alloy, Sealed Bearing Alloy, Cr-Mo Axle w/ 17T Freewheel Rear Hub |
| Tires | Kenda K-Rad w/ Skinwalls 1.95" F & R |
| Brakeset | Tektro 839AL V-Brake |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | CR-Mo Power Wing Cruiser Bar, 28" X 7" |
| Stem | Retro Top Load w/ Engraved SE Logo T op & Bottom, 1-1/8" Alloy |
| Grips | S-1E Retro Grip |
| Seat | SE Flyer Seat |
| Seatpost | Retro Fluted Micro-Adjust, Aluminum 27.2mm |
| Weight | 27.2 lbs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.15" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 16.8" |
| G | Bottom Bracket Height | 11.75" |
| Wheel Size | 26" |
