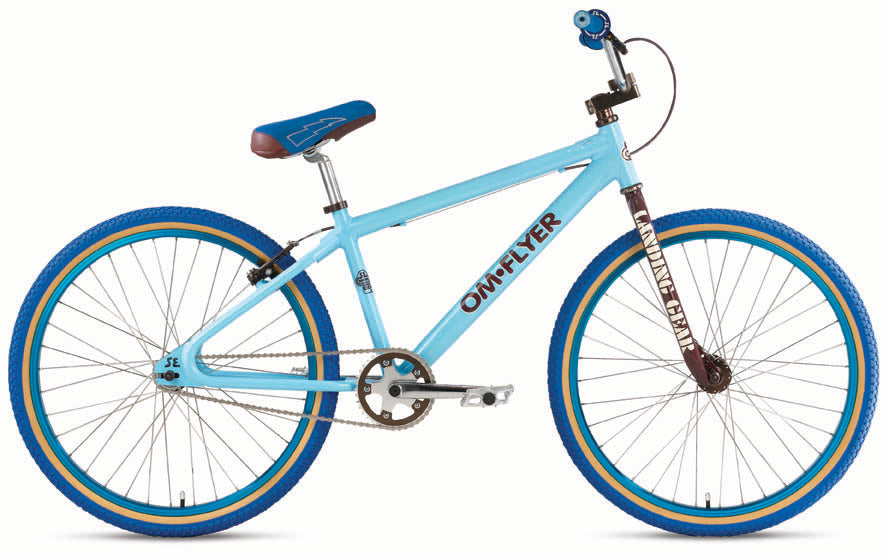

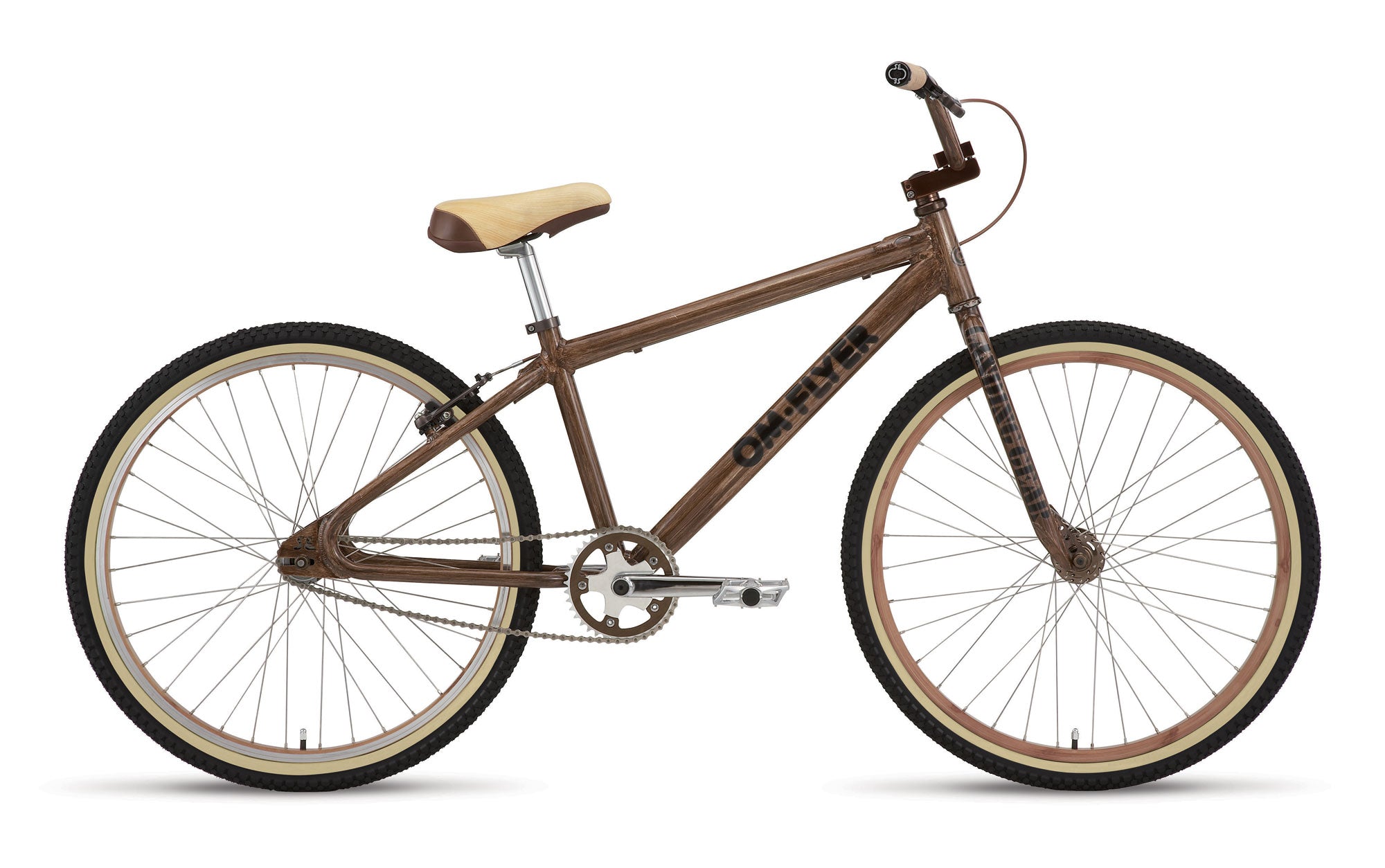

OM Flyer 26" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Tubing, Looptail Rear End, Retro Dropouts |
| Fork | 100% CR-MO Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 180mm, 48 Spline Sealed American, 39T Alloy |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle |
| Chain | KMC Z30 Silver |
| Wheelset | Alex DM24, 36H Double Wall Aluminum, w/ Stainless 14Ga. Spokes; SE Racing, High Flange, Cartridge Sealed Bearing 36H Alloy Front Hub; SE Racing, High Flange, Cartridge Sealed Bearing 36H Alloy w/ 17T Cassette Rear Hub |
| Tires | Kenda K-Rad w/ Skinwalls 1.95 F & R |
| Brakeset | Tektro 839AL V-Brake |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange DX4 1-1/8" Threadless |
| Handlebar | CR-Mo Power Wing Cruiser Bar, 28" X 7" |
| Stem | Retro Top Load 1-1/8" |
| Grips | Woodgrain Foam Lock-On Style |
| Seat | SE Flyer Seat |
| Seatpost | Race Rocker Micro-Adjust Aluminum 27.2 |
| Seat Clamp | SE Racing Alloy |
| Accessories | Alloy Axle Nuts, Grip Donuts, Alloy Bullet Valve Caps, SE Alloy End Caps |
| Wheel Size | 26" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.25" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 17.25" |
| G | Bottom Bracket Height | 11.75" |
| Seat Tube Length | 15" | |
| Wheel Size | 26" |
