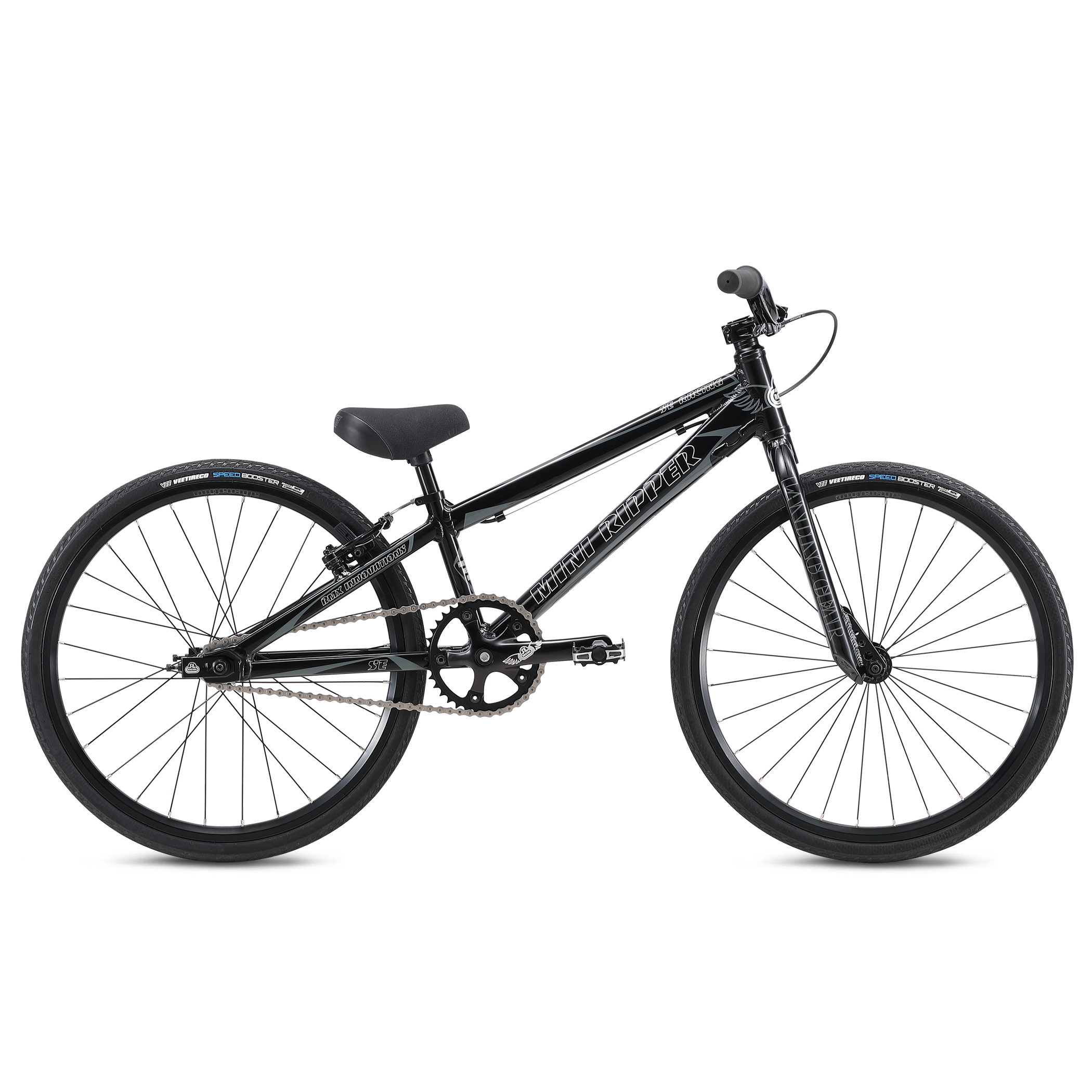

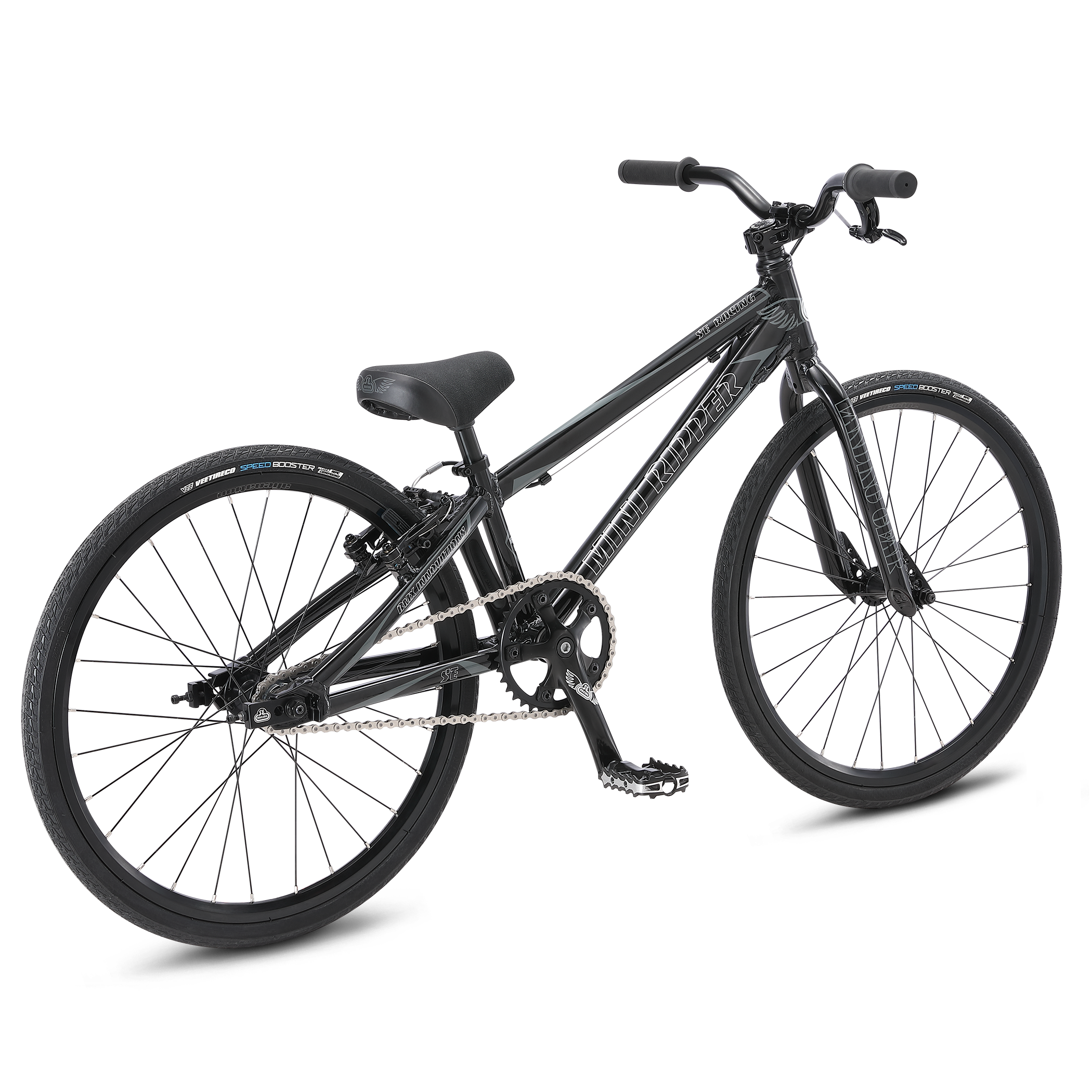

Mini Ripper
Mini Ripper
Mini Ripper

Mini Ripper

$849.99
Description

The Mini Ripper's aluminum frame features an ultra-stiff bi-oval downtube, rectangular rear stays and 3D-forged dropouts. Add in the lightweight 6066 aluminum Landing Gear forks, Promax Impact Mini stem, Alienation Ankle Biter rims and new Vee Tire Co Speed Booster tires, and you have one of the lightest and fastest mini race bikes on the track at only 15.8 pounds!
ColorFast Black
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube and rectangular rear stays for maximum stiffness
  • Lightweight 6066 aluminum Landing Gear forks with 6061 aluminum steerer tube
  • Alloy SE Mini Wing bars
  • Promax Impact Mini 6061-T6 aluminum CNC stem with hidden top cap for a clean look
  • Stiff and lightweight 3-pc 145mm alloy cranks
  • Vee Tire Co Speed Booster 1-1/8" tires provide ultra-quick cornering and low rolling resistance
  • Alienation Ankle Biter rims built with sealed cassette hubs with lightweight hollow axles with race skewer and radial laced spokes on the front
  • 15.8 pounds
SPECIFICATIONS
Frame Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Bi-Oval Down Tube, 68mm Wide BB, Rectangular Seat & Chainstays, 3D-Forged Dropouts
Fork 6066 Alloy Landing Gear, Alloy Steerer Tube
Crankset SE Racing 3-pc Alloy, 145mm, Euro-Sealed Bearing Bottom Bracket, 103mm Spindle Length, 37T Alloy Chainring
Pedals Wellgo Alloy Caged, Cr-Mo Axle
Chain KMC Z1
Wheelset Sealed Bearing Hollow Axle Alloy Hubs w/ Alienation Ankle Biter Double-Wall, 28H Rims, 14T Cassette, Stainless Spokes
Tires Vee Tire Co Speed Booster 20" x 1-1/8" Front & Rear
Brakeset Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable
Headset Neco Sealed 1" Integrated Headset
Handlebar Alloy SE Mini Wing Bar, 20.5" x 2.5", 8° Backsweep, 1° Upsweep
Stem Promax Impact Mini 1", 6061-T6 Alloy, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 40mm Reach
Grips Mini Grips
Seat SE Racing Mini w/ Integrated Alloy Post
Seatpost Integrated Alloy, 22.2mm
Accessories SE Chain Tensioners

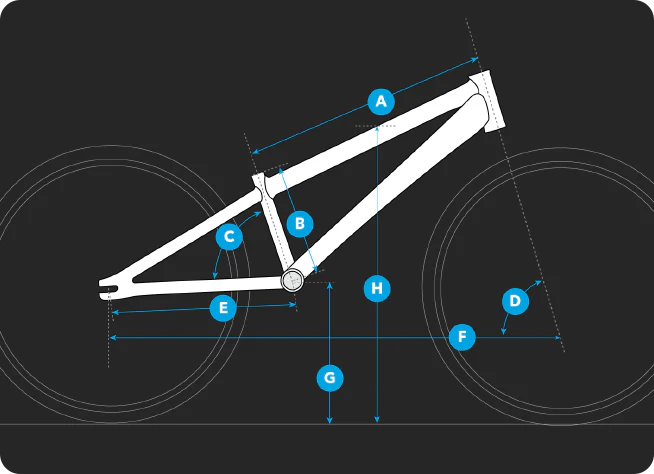

GEOMETRY
A Top Tube, Actual 17.4"
B Seat Tube, Center To Top 8.3"
C Seat Tube Angle 71°
D Head Tube Angle 73°
E Chainstay Length 13.1"
F Wheelbase 32.1"
G Bottom Bracket Height 10.7"
H Standover 21.5"
Suggested Rider Size 3'6"- 4'4" (107cm-132cm)
Stem 40mm
Handlebar Width 20.5"
Crank 145mm
Wheel Size 20"
Seat Post Diameter 22.2mm
Geometry diagram
