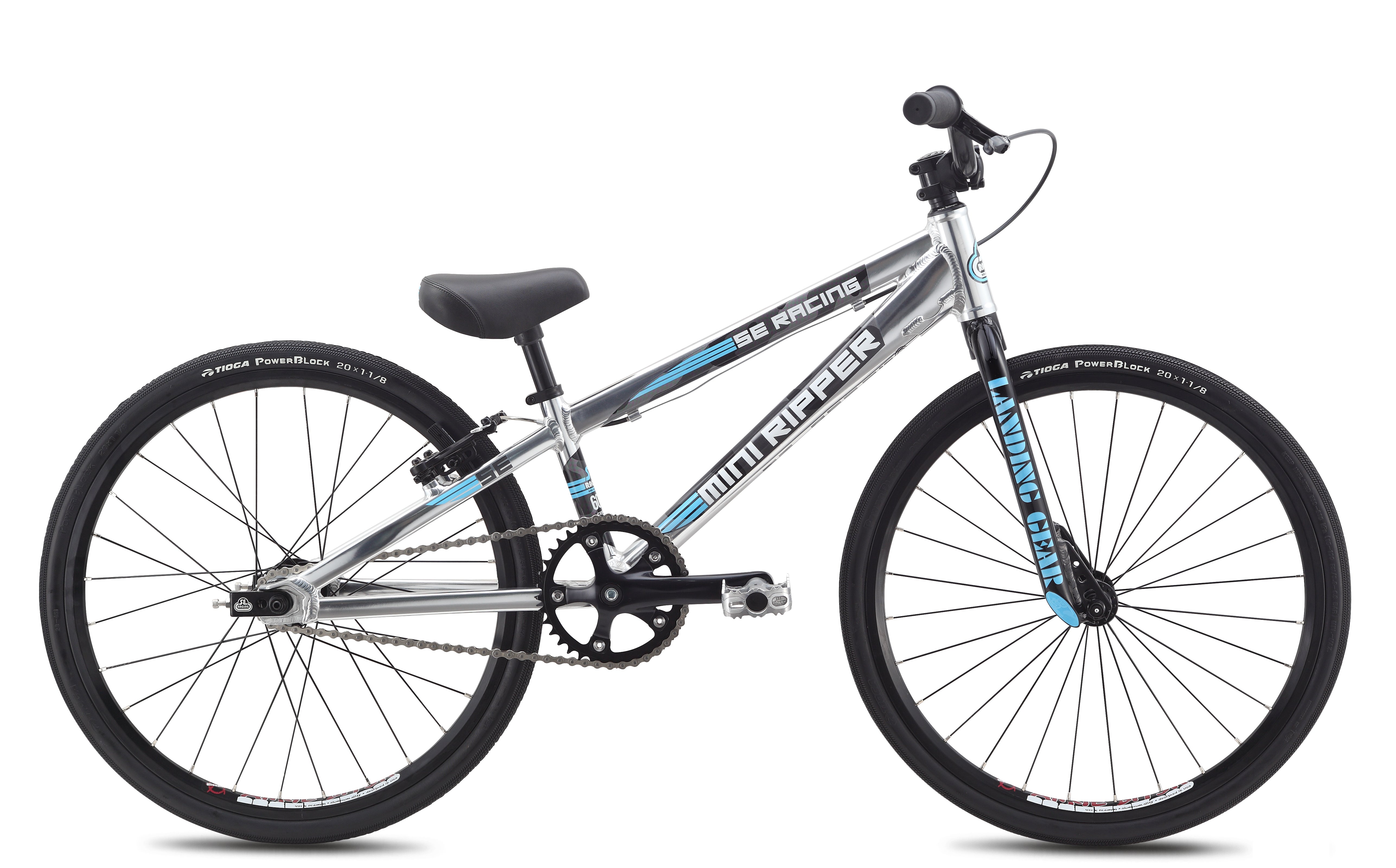

Mini Ripper (2015)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Lightweight 6066 Aluminum Floval Tubing, Bi-Oval Down Tube for Optimum Stiffness, Internally Machined Integrated Head Tube, Rectangular Seat & Chainstays, 3D-Forged Dropouts |
| Fork | Alloy Landing Gear w/ Alloy 1" Steerer Tube |
| Crankset | 3-pc Alloy, 145mm, Euro-Sealed Bearing, 37T Alloy Chainring |
| Pedals | Wellgo Alloy Caged, Cr-Mo Axle |
| Chain | KMC Z33 |
| Wheelset | Sealed Bearing Alloy Hubs, Hollow Rear Axle, Skewer Front Axle, Alienation Ankle Biter Double-Wall, 28H Rims, 14T Cassette, Stainless Spokes |
| Tires | Tioga Power Block 20" x 1-1/8" F & R |
| Brakeset | Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable |
| Brake Levers | Promax SE-341, 2-Finger Alloy |
| Headset | Tange IS22 Sealed 1" Integrated Headset |
| Handlebar | Alloy SE Mini Wing Bar, 20.5" x 2.5" |
| Stem | Lightweight SE Racing Mini, 1" 6061 T6 Alloy |
| Grips | Mini Grip |
| Seat | SE Racing Mini w/ Integrated Alloy Post |
| Seatpost | Integrated Alloy, 22.2mm |
| Accessories | Chain T ensioners, Race Plate |
| Wheel Size | 20" |
| Weight | 15.50lbs / 7.02kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 17.4" |
| Seat Tube, Center To Top | 8.3" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 73° |
| E | Chainstay Length | 13.1" |
| Wheelbase | 32.1" | |
| G | Bottom Bracket Height | 10.7" |
| Seat Post Diameter | 22.2mm | |
| Standover | 21.5" |
