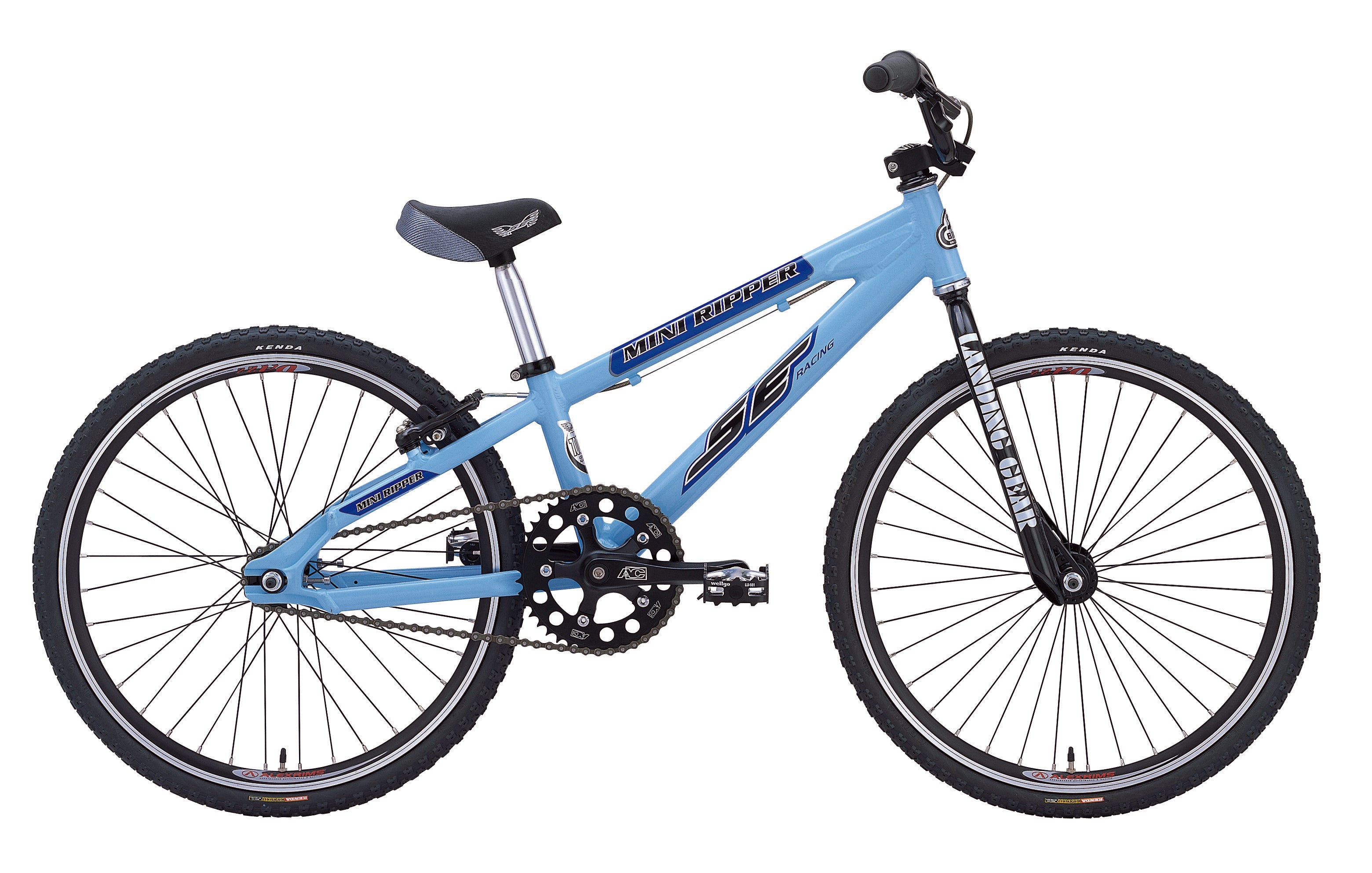

Mini Ripper (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 7005 Aluminum Floval Tubing w/ Integrated Chain Tensioners |
| Fork | CR-MO, 1" Landing Gear Mini |
| Crankset | AC Miniholeshot 3pc Cold Forged Aluminum, 140mm; AC 42T Aluminum Sprocket; Euro Sealed Cartridge Square Taper |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle |
| Cassette | AC 888, 16T Freewheel |
| Chain | KMC Z51 |
| Wheelset | Alex DA-22, 32H Double Wall Aluminum w/CNC sidewall; SE Racing Alloy Cartridge Sealed Bearing Front Hub; SE Racing Alloy Cartridge Sealed Bearing Rear Hub; Black Stainless 15 Ga. Spokes |
| Tires | Kenda Krankit 1-1/8" Front & Rear |
| Brakeset | Tektro 926Al Mini V-Brake, Slick Cable (Rear only) |
| Brake Levers | Tektro 317A, 2 Finger |
| Headset | FSA 1" Threadless Aheadset |
| Handlebar | SE Wing Mini, 20.5" X 1.5" Aluminum |
| Stem | SE Racing Mini, Top Load, 1" Alloy |
| Grips | SE Racing Black |
| Seat | SE Racing Mini w/ integrated Alloy Post |
| Seatpost | Integrated Aluminum 27.2 |
| Seat Clamp | SE Racing Alloy |
| Accessories | Chain Tensioners |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 17.5" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 73° |
| E | Chainstay Length | 13.25" |
| G | Bottom Bracket Height | 10.7" |
| Seat Tube Length | 8.8" | |
| Wheel Size | 20" |
